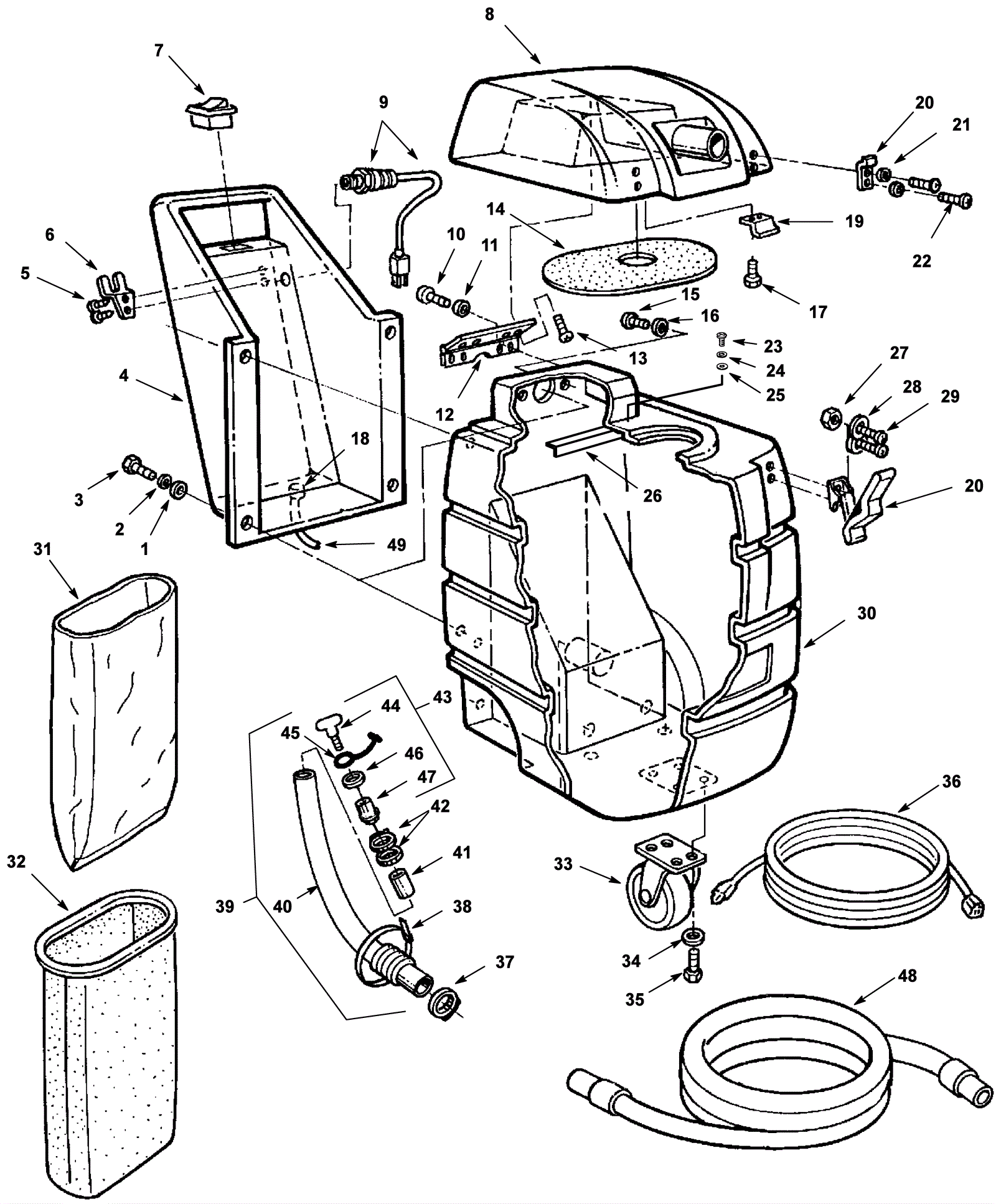

Tank Assembly

#PartDescription ReqNotesAvailability
1 999-0617 Washer 3/8 x 1 flat stainless steel 4
2 999-0034 Washer 3/8 split lock plain finish 4
3 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 4
4 175-5745 Green handle 1
5 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
6 175-6069 Drain hose bracket 1
7 175-1008 Rocker switch 1
8 175-5746 Green cover (OBSOLETE) 1
9 175-1522 16/3 pigtail cord 18 inch 1
10 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 4
11 999-0016 Washer 1/4 flat plain finish 4
12 175-1550 Hinge 1 (16 gallon model)
13 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 4
14 175-0282 Tank lid gasket 1 (16 gallon model)
15 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 2
16 175-4544 Washer M6 locking 2
17 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 2
18 175-0085 Strain relief bushing 1
19 175-1528 Air deflector bracket 1
20a 175-3369 Hood latch 2
20c 991-8561 Rubber draw latch with keeper 2
20b 175-8831 Latch 2 (pump-out model)
20c 175-5748 Keeper 2 (pump-out model)
20d 175-8831 Latch 1
21 999-1083 Washer #8 internal star lock stainless steel 4
22 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 4
23 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 2 (16 gallon model)
24 175-4544 Washer M6 locking 2 (16 gallon model)
25 999-1119 Washer 1/4 x 1 fender zinc plated 2 (16 gallon model)
26 175-5749 Support bracket 1 (16 gallon model)
27 999-0151 Nut 8-32 nylon insert lock zinc plated 4
28 999-0393 Washer 3/16 flat aluminum 4
29 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 4
30a 175-5751 Green tank 1 (16 gallon model)
30b 175-5752 Green tank 1 (16 gallon model with pump-out)
31 175-1531 Paper bag (pkg of 10) 1
32 175-5753 Cloth filter bag (OBSOLETE) 1 (16 gallon model)
33 175-0888 4 inch swivel caster wheel 1
34 999-0553 Washer 5/16 medium split lock stainless steel 4
35 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
36a 175-6091 16/3 extension cord 50 foot (yellow) 1
36b 991-5002 16/3 extension cord 50 foot (orange) 1 (NON-OEM)
36c 991-5007 18/3 replacement power cord 50 foot (black) 1 (NON-OEM)
37 997-2007 Hose clamp 1
38 175-0921 Wire tie 1
39 175-3618 Drain hose assembly 1 (includes 40-47)
40 175-5754 Drain hose 1
41 175-6074 Drain hose sleeve 1
42 175-1789 Hose clamp 2
43 175-6070 Drain plug assembly 1 (includes 44-47)
44 175-6071 Drain plug knob 1
45 175-6072 Drain plug strap 1
46 175-6162 Washer 3/8 flat fender stainless steel 1
47 175-6073 Fitting 1
48 175-2635 Vacuum hose 1 1/2 x 10 foot 1
49 175-5755 Handle cord 1
N/S 175-1557 Warning decal (OBSOLETE) 1
N/S 175-5756 Pump-out instruction decal 1
N/S 275-5867 Front decal 1
N/S 175-5757 Typhoon 1610P decal (OBSOLETE) 2
N/S 175-5758 Typhoon 1612 decal (OBSOLETE) 2
