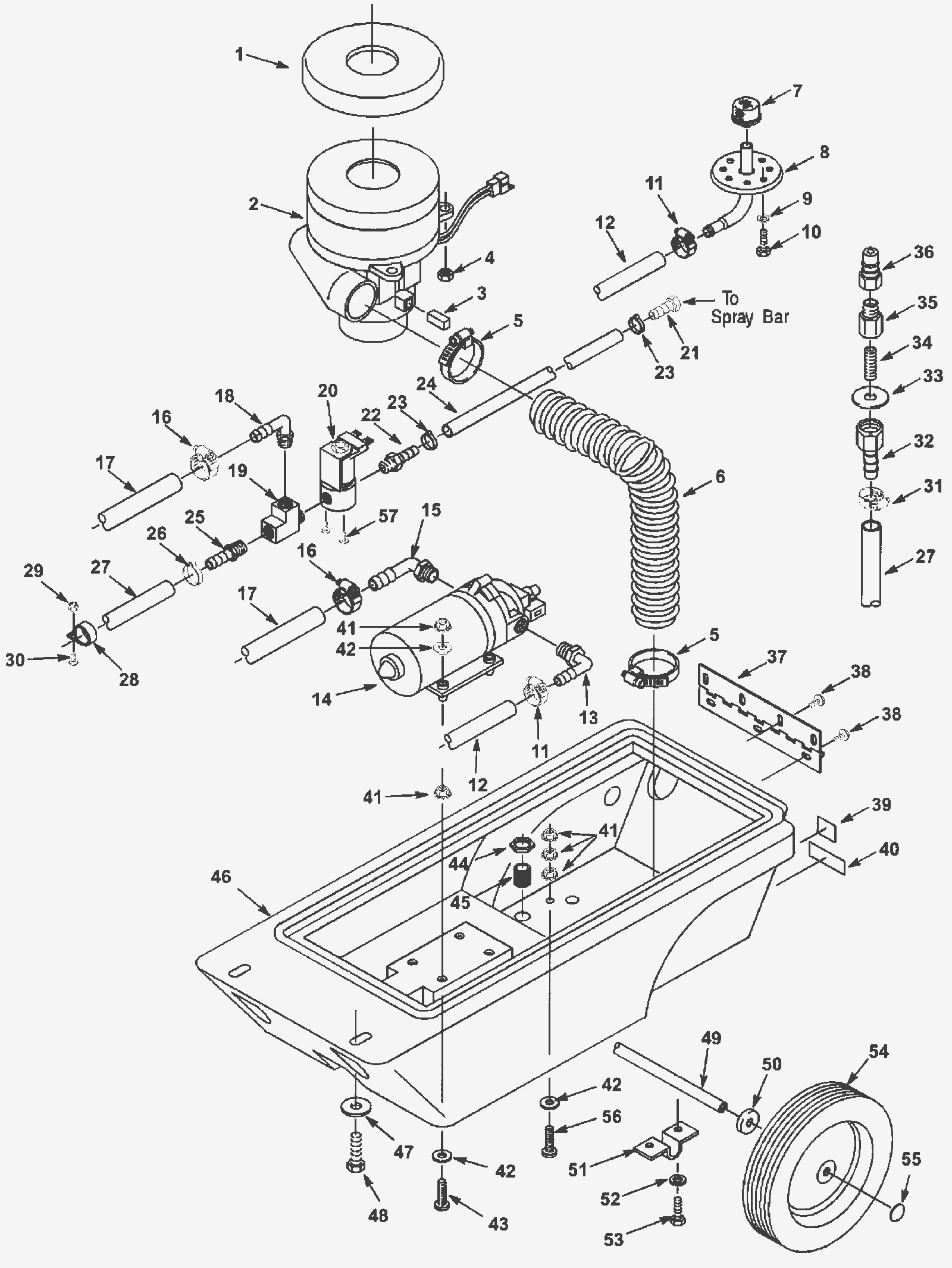

Chassis Assembly

#PartDescription ReqNotesAvailability
1a 175-6084 Vacuum motor gasket 1
1b 175-6085 Gasket 1
2a 175-0198 120V 3 stage vacuum motor 1
2b 175-0197 120V 3 stage vacuum motor 1
2c 175-0196 Motor 5.7 vacuum 2 stage 220V 1
2d 991-1213 120V 3 stage vacuum motor tangential 1 (NON-OEM)
3a 175-6086 Carbon brush (pkg of 2) 2
3b 275-5835 Carbon brush (pkg of 2) 2
3c 175-0052 Carbon brush set 2
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
5 175-2057 Hose clamp 2
6 175-6090 Exhaust hose 2 x 26 inch (black) 1
7 175-6079 Mesh filter screen 1
8 175-6021 Bladder plate fitting 1
9 999-0632 Washer 1/4 split lock stainless steel 4
10 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
11 175-6081 Hose clamp 2
12 175-7216 Hose 3/8 x 31 inch (gray) 1
13 175-6019 90 degree barbed elbow 1
14a 175-6011 120V 100 PSI pump 1
14b 175-6012 100 psi 240 v pump 1
14c 991-8225 Shurflo pump 1 (NON-OEM)
15 175-6016 Elbow 1
16 175-0199 Hose clamp 2
17 175-4870 Hose 1
18 175-2844 90 degree elbow fitting 1
19 175-6029 Straight tee 1
20a 175-6025 Solution solenoid valve 1 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve)
20b 991-8598 Replacement plunger with spring for solenoid valve 1
20c 175-6026 Solenoid valve 220 v 50 hz 1
20d 175-3577 Soleniod valve 100v 50hz 1
20e 175-6028 Solenoid valve 240 v 50 hz 1
21 175-6043 Hosebarb 1
22 175-6024 Hosebarb 1
23 175-6170 Hose clamp 2
24 175-7364 16 inch hose (gray) 1
25 175-6030 Straight hosebarb 1
26 175-6032 Hose clamp 1
27 175-7217 52 inch hose (gray) 1
28 175-0988 P clamp 1
29 999-0442 Nut 10-24 nylon insert lock stainless steel 3
30 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 1
31 175-6081 Hose clamp 1
32 175-6022 Brass fitting 1
33 999-0187 Washer 1/2 flat plain finish 1
34 175-6015 Nipple 1
35 175-6014 Adapter 1
36 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
37 175-6077 Tank hinge 1
38 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 7
39 N/A Not available 1 (decal)
40 275-9008 Warning decal 1
41 999-0356 Nut 10-24 lock stainless steel 11
42 999-0393 Washer 3/16 flat aluminum 7
43 999-1195 Screw 10-24 x 1 1/4 round head phillips zinc plated 4
44 175-6158 Nut 1/2 conduit 1
45 175-6124 Cord grip 1
46 175-6034 Chassis (OBSOLETE) 1
47 999-0617 Washer 3/8 x 1 flat stainless steel 2
48 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
49 175-6095 Axle 1
50 999-0187 Washer 1/2 flat plain finish 2
51 175-6098 Axle bracket 2
52 999-0632 Washer 1/4 split lock stainless steel 4
53 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
54 175-6096 Wheel 2
55 175-6097 Hub cap 2
56 999-0009 Screw 10-24 x 1 round head slotted zinc plated 1
57 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 2
