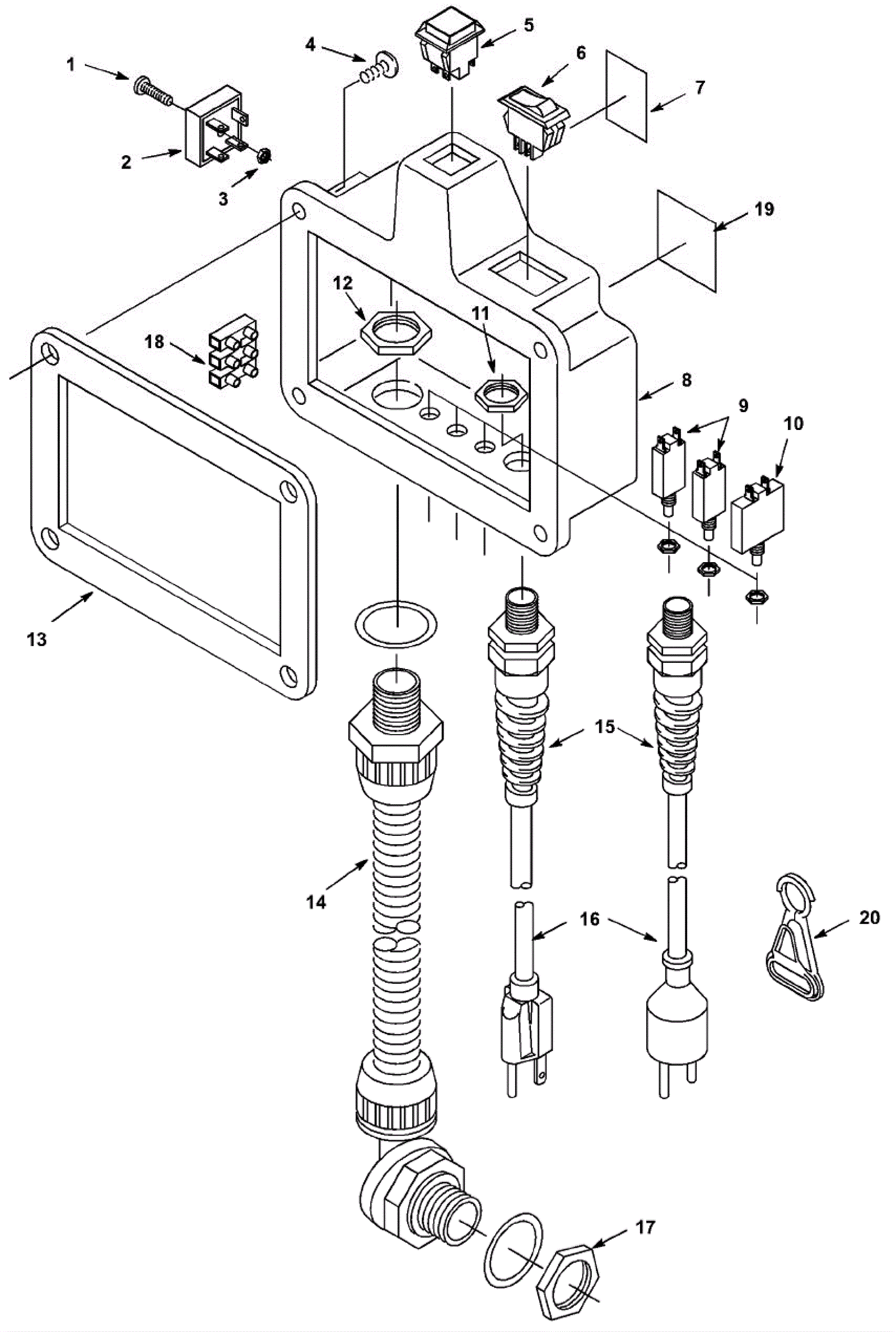

POWEREAGLE 1016 608540 Control Console Assembly - Model 608540

#PartDescriptionPriceReqNotesAvailability
1 999-0475 Screw 6-32 x 3/4 pan head slotted zinc plated $0.99 1 ships same day
2 175-6052 15amp rectifier $21.90 1 ships same day
3 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 1 ships same day
4 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 4 ships same day
5a 175-6057 Brush pulse switch $23.70 1 usually ships 5-16 days
5b 175-6058 Push switch $41.60 1 usually ships 5-16 days
5c 275-5128 Switch boot $23.40 1 usually ships 5-16 days
6a 175-0005 Rocker switch $10.70 1 ships same day
6b 175-2693 Rocker switch $25.20 1 usually ships 5-16 days
7 175-3562 On/off decal $12.80 1 usually ships 1-5 days
8 275-6088 Switchbox assembly $492.20 1 usually ships 1-5 days
9a 175-6060 1.5amp circuit breaker $45.40 2 usually ships 5-16 days
9b 175-6059 1.2 amp 220v circuit breaker $50.50 1 usually ships 5-16 days
10 175-6061 12amp circuit breaker $39.00 1 usually ships 5-16 days
11 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
12 175-6158 Nut 1/2 conduit $3.60 1 usually ships 5-16 days
13 175-3561 Switch box gasket $9.90 1 usually ships 1-5 days
14 175-3554 Wiring harness $198.20 1 usually ships 5-16 days
15a 175-0001 Strain relief $11.20 1 ships same day
15b 175-6063 Strain relief $18.70 1 usually ships 5-16 days
16a 175-6064 14/3 pigtail cord 18 inch $13.10 1 usually ships 5-16 days
16b 175-0047 Cord 3x1.00MMx50' 220V $92.50 1 usually ships 1-5 days
17 175-9856 Nut 1/2 conduit $3.00 1 usually ships 1-5 days
18 175-0027 25amp terminal strip $2.39 1 usually ships 5-16 days
19 275-2370 Read manual decal $15.10 1 usually ships 5-16 days
20 175-0236 Cord belt clip $9.10 1 ships same day
