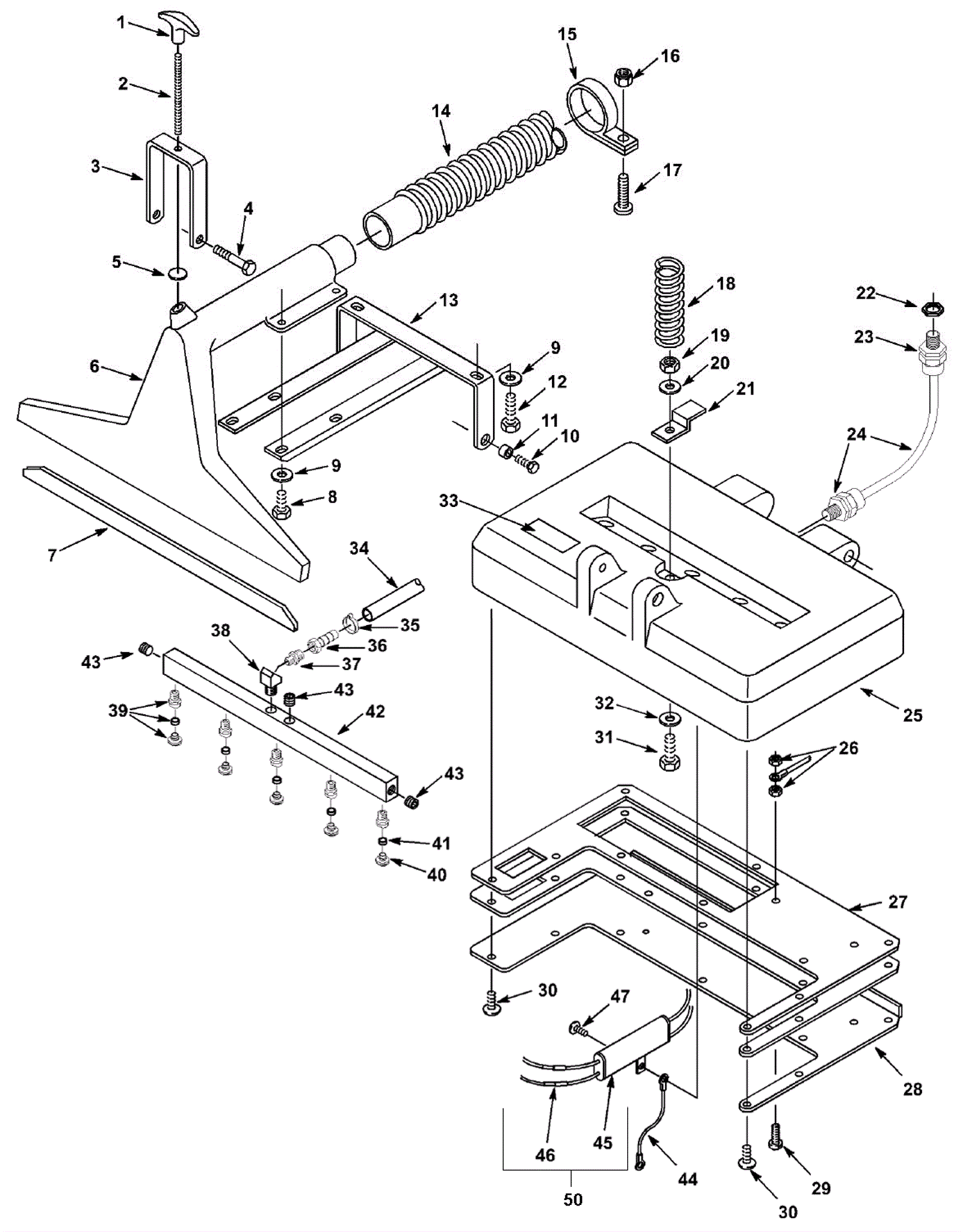

POWEREAGLE 1016 608540 Brush Base Assembly - Model 608540

#PartDescriptionPriceReqNotesAvailability
1 175-6113 Height adjustment knob $8.50 1 usually ships 5-16 days
2 175-6114 Threaded stud $42.60 1 usually ships 5-16 days
3 175-6152 Height adjustment bracket $36.10 1 usually ships 5-16 days
4 175-6156 Screw 3/8 x 3/4 shoulder $4.50 2 usually ships 5-16 days
5 175-6112 Spacer $3.50 1 ships same day
6a 175-6148 16 inch pick-up tool (black) $620.90 1 (16 inch model) usually ships 5-16 days
6b 175-6151 20 inch pick-up tool (black) $470.30 1 (20 inch model) ships same day
7a 175-6146 16 inch pick-up shoe plate stainless steel $23.10 2 (16 inch model) ships same day
7b 175-6147 20 inch pick-up shoe plate stainless steel $23.10 2 (20 inch model) ships same day
8 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
9 999-0553 Washer 5/16 medium split lock stainless steel $0.99 6 ships same day
10 175-6187 Screw 3/8-16 x 3/4 inch truss head phillips $4.80 2 usually ships 1-5 days
11 175-6154 Spacer $4.30 2 usually ships 5-16 days
12 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 2 ships same day
13 175-6153 Mounting bracket $73.80 1 usually ships 1-5 days
14a 175-6038 Vacuum hose with cuffs 1 1/2 x 53 inch $78.80 1 usually ships 5-16 days
14b 991-5154 Vacuum hose with cuffs 1 1/2 x 53 inch $54.14 1 (NON-OEM) ships same day
15 175-3123 Cable tie $3.60 1 usually ships 1-5 days
16 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
17 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 1 ships same day
18 175-6116 Spring $24.70 1 usually ships 5-16 days
19 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
20 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
21 175-6115 Spray bar clamp $8.70 1 usually ships 5-16 days
22 175-6158 Nut 1/2 conduit $3.60 1 usually ships 5-16 days
23 175-6124 Cord grip $9.20 2 usually ships 1-5 days
24 175-6065 Interconnect cord $23.80 1 usually ships 1-5 days
25a 275-6110 16 inch (400mm) brush housing (gray) $168.60 1 (16 inch model) usually ships 1-5 days
25b 175-3538 20 inch base (black) $266.00 1 (20 inch model) usually ships 1-5 days
26 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
27a 175-6142 16 inch base gasket $30.80 1 (16 inch model) ships same day
27b 175-6235 20 inch base gasket $33.20 1 (20 inch model) usually ships 5-16 days
28a 175-6144 16 inch brush base plate $79.20 1 (16 inch model) usually ships 5-16 days
28b 175-6145 20 inch brush base plate (black) $131.70 1 (20 inch model) usually ships 5-16 days
29 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 1 ships same day
30 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 12 ships same day
31 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 ships same day
32 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
33 175-6108 Height adjustment decal $7.30 1 usually ships 5-16 days
34 175-7364 16 inch hose (gray) $13.00 1 usually ships 5-16 days
35 175-6170 Hose clamp $3.60 1 ships same day
36 175-6043 Hosebarb $11.00 1 usually ships 5-16 days
37 175-6042 Adapter $3.90 1 usually ships 5-16 days
38 175-6041 Elbow 1/8 x 1/8 inch $5.30 1 usually ships 5-16 days
39a 175-6117 Spray tip assembly $68.20 4 usually ships 5-16 days
39b 175-6118 Spray tip assembly $69.50 5 ships same day
40a 275-5132 Brass spray tip $24.90 5 usually ships 5-16 days
40b 175-3535 Brass spray tip $26.00 5 ships same day
41a 175-8085 Spray nozzle seal $26.70 4 (16 inch model) usually ships 5-16 days
41b 175-8085 Spray nozzle seal $26.70 5 (20 inch model) usually ships 5-16 days
42a 175-6039 16 inch spray bar manifold $79.50 1 (16 inch model) usually ships 5-16 days
42b 175-6040 20 inch spray bar manifold $105.60 1 (20 inch model) usually ships 5-16 days
43 175-6121 Brass plug $3.60 3 ships same day
44 175-1762 Strain relief cable $11.70 1 usually ships 1-5 days
45 175-1738 Brush filter $92.40 1 usually ships 1-5 days
46 175-1739 Choke $8.70 2 usually ships 1-5 days
47 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 1 ships same day
48a 275-5130 Sprayer manifold assembly $316.40 1 (16 inch model) (includes 37-39a, 40a, 41a, 42a, and 43) usually ships 1-5 days
48b 275-5131 Sprayer manifold assembly $309.70 1 (20 inch model) (includes 37-38, 39b, 40b, 41b, and 42b-43) usually ships 5-16 days
49 175-3540 Filter assembly 240V $109.00 1 (includes 45-46) usually ships 1-5 days
