| # | Part | Description |
Req | Notes | Availability |
|---|
000a |
175-4855
|

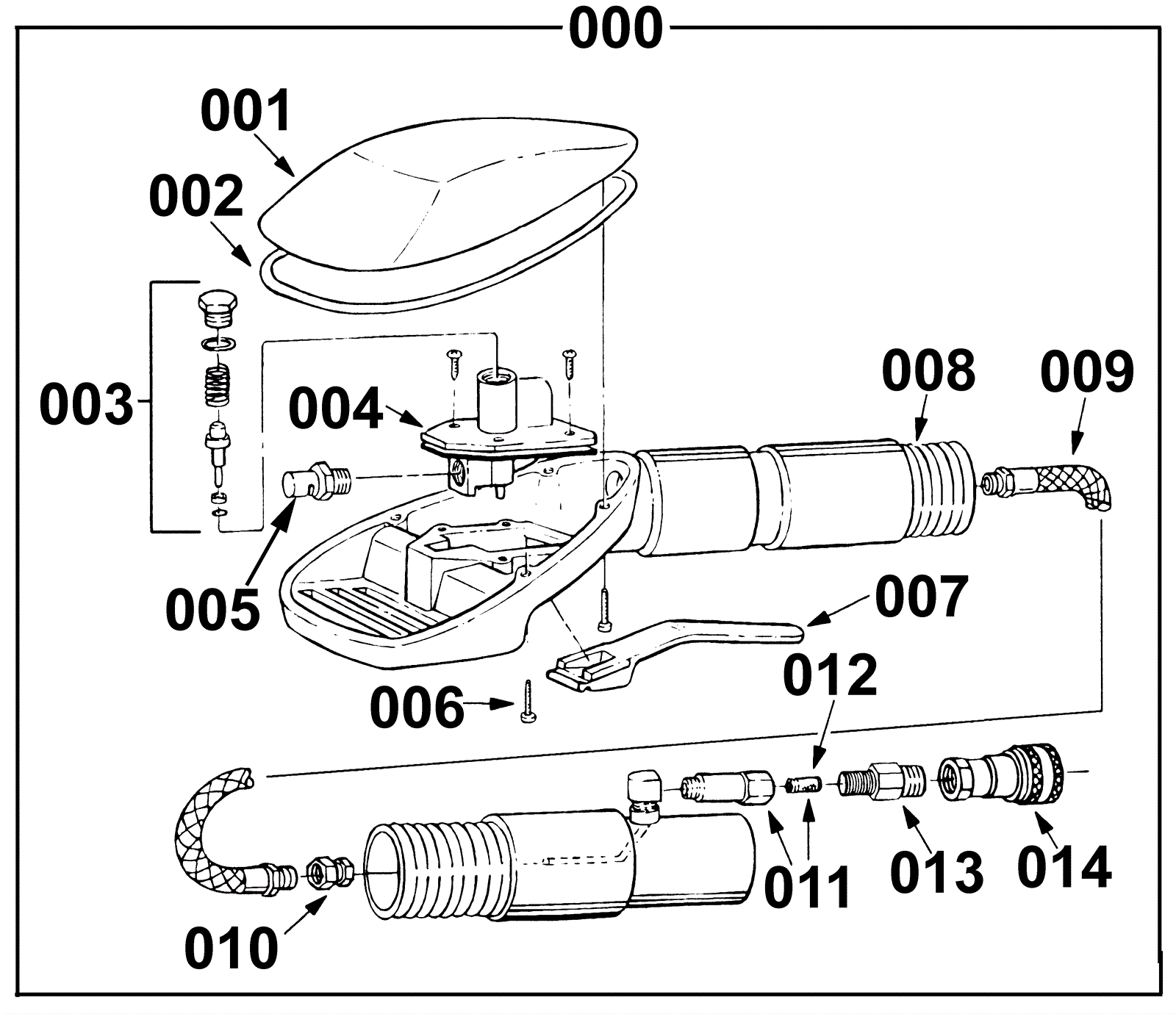

Low pressure upholstery tool assembly |
1 |
Includes 001-014 |
|
000b |
175-5845
|
Vacuum motor bracket |
1 |
|
|
001 |
175-7856
|
Washer M13-.8 x 30mm flat nylon |
1 |
|
|
002 |
175-4857
|
Gasket |
1 |
|
|
003 |
175-4858
|
Valve assembly |
1 |
|
|
004 |
175-4859
|
Solution valve |
1 |
|
|
005 |
175-4860
|
Nozzle |
1 |
|
|
006 |
175-4861
|
Screw 6-32 x 3/4 inch |
4 |
|
|
007 |
175-4862
|
Trigger |
1 |
|
|
008 |
175-4863
|
Vacuum hose without cuffs |
1 |
|
|
009 |
175-4864
|
Solution hose |
1 |
|
|
010 |
175-4865
|
Fitting |
1 |
|
|
011 |
175-4866
|
Inline filter assembly |
1 |
|
|
012 |
175-4867
|
Filter screen |
1 |
|
|
013 |
175-6239
|
1/4 inch nipple |
1 |
|
|
014 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
