| # | Part | Description |
Req | Notes | Availability |
|---|

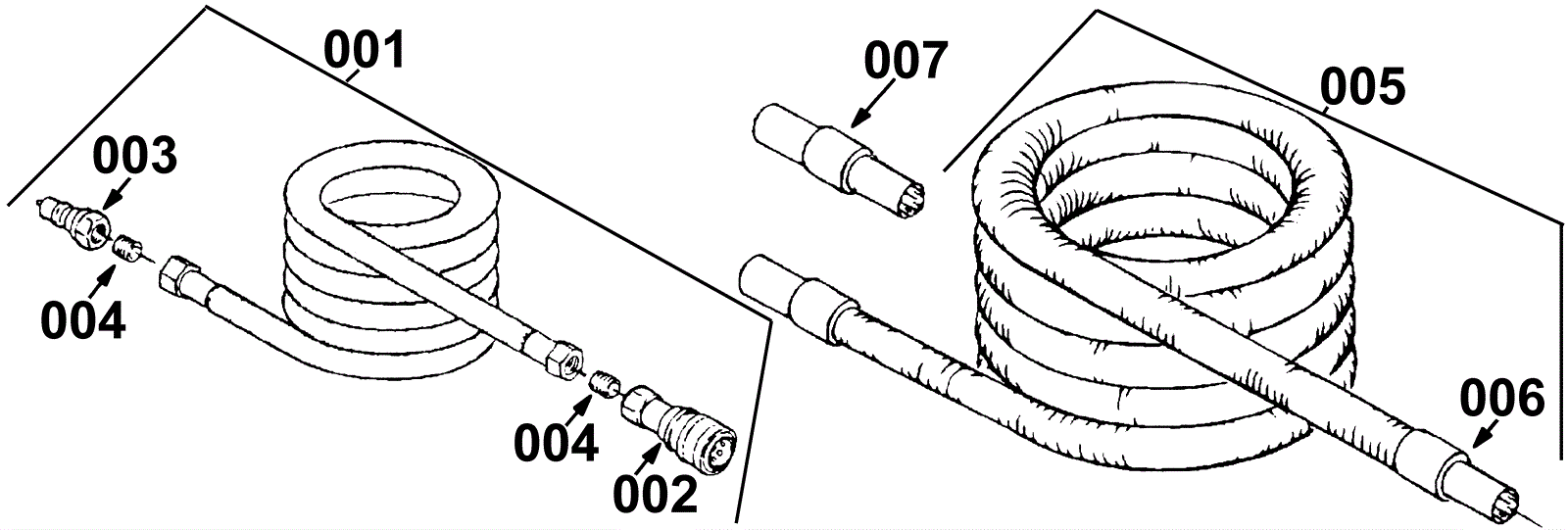

001a |
775-0278
|
15 foot solution hose assembly |
1 |
Assembly inlcudes 001b-004 (001a is optional) |
|
001b |
175-1979
|
25 foot solution hose assembly |
1 |
Standard |
|
001c |
175-1946
|
50 foot solution hose assembly |
1 |
Optional |
|
001d |
991-8143
|
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
1 |
(NON-OEM) |
|
002 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
003 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
004 |
175-6244
|
Nipple |
2 |
|
|
005a |
175-3589
|
15 foot vacuum hose assembly |
1 |
005 includes 006 |
|
005b |
175-3590
|
25 foot vacuum hose assembly |
1 |
005 includes 006 |
|
005c |
175-3591
|
50 foot vacuum hose assembly |
1 |
005 includes 006 |
|
006 |
175-6269
|
1 1/2 inch hose cuff (OBSOLETE) |
2 |
|
|
007 |
175-8758
|
Connector |
1 |
|
|
N/S |
175-2646
|
Hose bag with draw string |
1 |
Not Shown (optional) |
|
