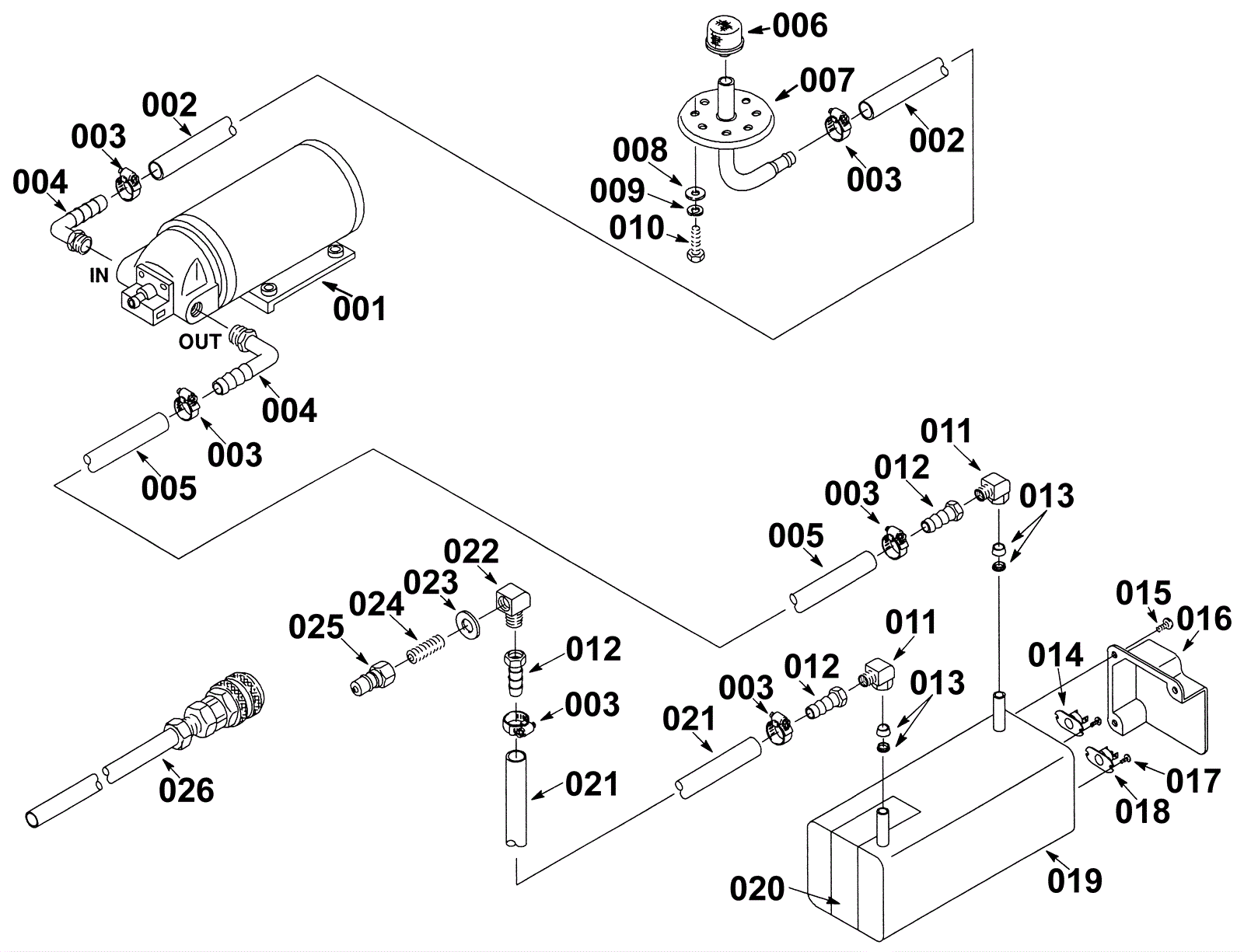

TROOPER 1500H Plumbing Assembly

#PartDescriptionPriceReqNotesAvailability
001a 175-6011 120V 100 PSI pump $476.08 1 usually ships 5-16 days
002 175-1978 Hose 3/8 x 24 inch $10.67 1 usually ships 1-5 days
003 175-6081 Hose clamp $4.84 6 ships same day
004 175-6019 90 degree barbed elbow $7.48 2 usually ships 5-16 days
005 175-1982 Hose 3/8 x 16 inches $29.70 1 usually ships 1-5 days
006 175-6079 Mesh filter screen $17.16 1 ships same day
007 175-6021 Bladder plate fitting $55.66 1 usually ships 5-16 days
008 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
009 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
010 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
011 175-1983 Fitting 1/4 x 5/16 $25.30 2 usually ships 1-5 days
012 175-6022 Brass fitting $5.83 3 usually ships 5-16 days
013 175-1984 Ferrule stainless steel $25.19 2 usually ships 5-16 days
014 175-1985 Thermostat control $103.40 1 usually ships 5-16 days
015 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 3 ships same day
016 175-1976 Heater cover $194.70 1 usually ships 1-5 days
017 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 4 ships same day
018 175-1986 Thermostat limit $131.01 1 usually ships 5-16 days
019a 175-1953 120V heater assembly $1,260.82 1 Includes 019a usually ships 1-5 days
019b 175-1954 Heater insulator $56.87 1 Can be purchased separately usually ships 1-5 days
020 175-1931 Motor mounting system set $29.15 1 usually ships 1-5 days
021 175-6665 Hose 3/8 x 5/8 x 12 inches (grey) $14.19 1 ships same day
023 175-1825 Washer $3.85 1 ships same day
024 175-6244 Nipple $3.96 1 ships same day
025 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $10.94 1 ships same day
026 175-3579 Pump out hose $50.82 1 usually ships 5-16 days
1b 991-8225 Shurflo pump $252.55 1 ships same day
