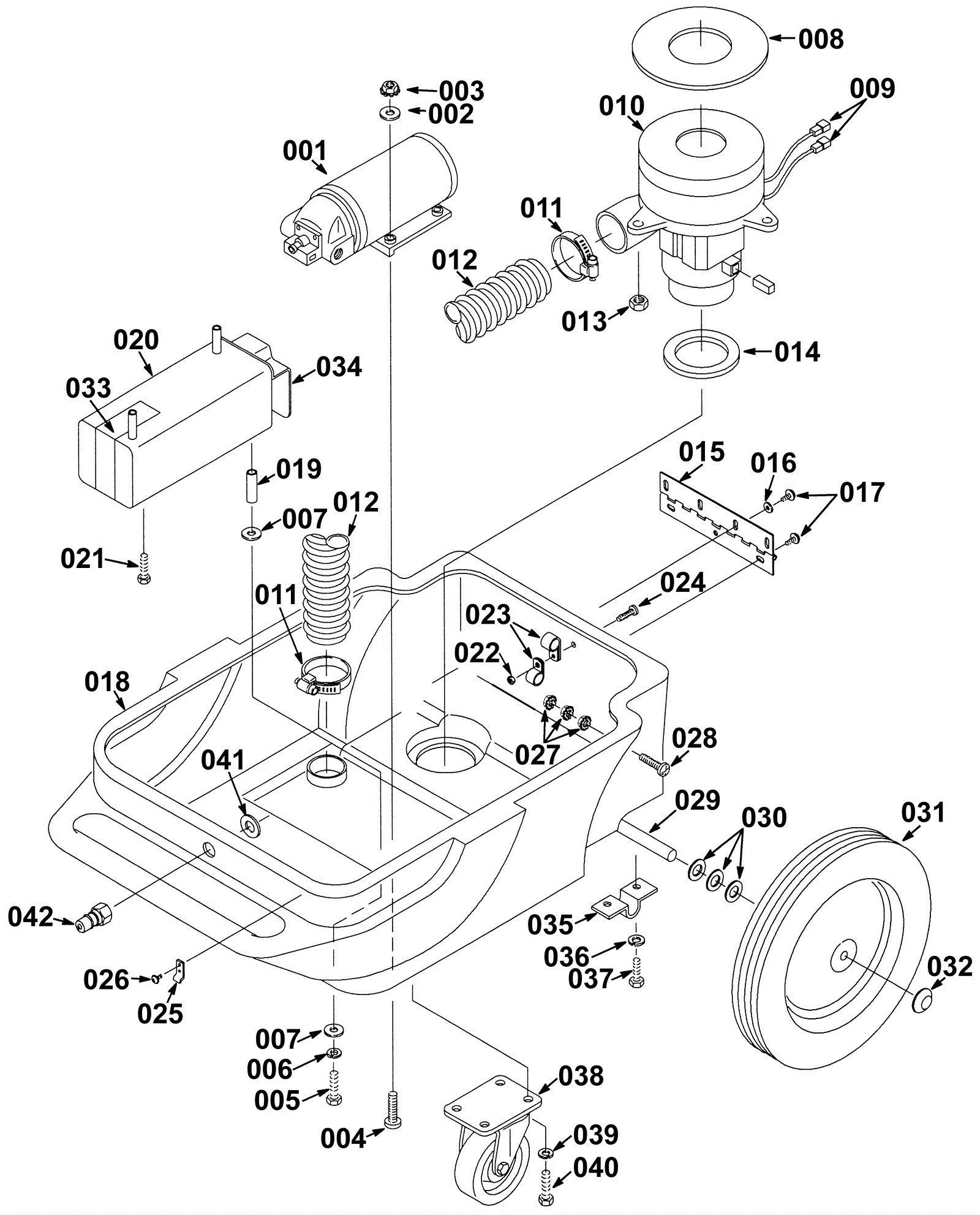

TROOPER 1500H Base Assembly

#PartDescriptionPriceReqNotesAvailability
001a 175-6011 120V 100 PSI pump $476.08 1 usually ships 5-16 days
001b 991-8225 Shurflo pump $252.55 1 ships same day
002 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
003 999-0356 Nut 10-24 lock stainless steel $0.99 4 ships same day
004 999-0002 Screw 10-24 x 1 1/2 pan head phillips zinc plated $0.99 4 usually ships 11-24 days
005 999-0574 Screw 10-24 x 1 3/4 pan head slotted zinc plated $0.99 2 ships same day
006 999-0446 Screw 5/16-18 x 1 3/4 round head slotted zinc plated $0.99 2 ships same day
007 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
008 175-6084 Vacuum motor gasket $12.65 1 120v ships same day
009 175-0142 1/4 inch male terminal $3.96 2 usually ships 5-16 days
010a 175-0198 120V 3 stage vacuum motor $590.70 1 Includes 010b and 010c ships same day
010b 175-6086 Carbon brush (pkg of 2) $23.87 1 May be bought without 010a usually ships 5-16 days
010c 175-5289 Shell $24.31 1 May be bought without 010a usually ships 5-16 days
010d 991-1213 120V 3 stage vacuum motor tangential $177.60 1 (NON-OEM) ships same day
011 175-2057 Hose clamp $5.61 2 usually ships 1-5 days
012 175-1917 Hose 2 x 28 inch $37.18 1 usually ships 5-16 days
013 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
014 175-1920 Vacuum motor intake gasket $7.92 1 usually ships 5-16 days
015 175-6077 Tank hinge $12.87 1 ships same day
016 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
017 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 7 ships same day
018 175-1949 Chassis (OBSOLETE) $216.81 1 Green usually ships 1-5 days
019 175-0077 Spacer $27.28 2 usually ships 1-5 days
020a 175-1953 120V heater assembly $1,260.82 1 Includes 020a usually ships 1-5 days
020b 175-1954 Heater insulator $56.87 1 May be purchased without 020b usually ships 1-5 days
021 999-0166 Screw 10-24 x 5/8 truss head slotted zinc plated $5.50 2 ships same day
022 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
023 175-0339 P clamp $3.30 2 usually ships 5-16 days
024 999-1031 Screw 10-24 x 1 truss head phillips stainless steel $0.99 1 ships same day
025a 175-3369 Hood latch $32.12 2 usually ships 5-16 days
025b 991-8561 Rubber draw latch with keeper $27.63 2 usually ships 5-16 days
026 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 4 ships same day
027 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
028 999-1031 Screw 10-24 x 1 truss head phillips stainless steel $0.99 1 ships same day
029 175-1900 Axle $22.66 1 usually ships 5-16 days
030 999-0187 Washer 1/2 flat plain finish $0.99 6 ships same day
031 175-1902 Wheel $121.11 2 usually ships 5-16 days
032 175-6097 Hub cap $4.84 2 ships same day
033 175-1961 Nylon strap with adhesive $27.28 1 usually ships 5-16 days
034 175-1976 Heater cover $194.70 1 usually ships 1-5 days
035 175-6098 Axle bracket $17.71 2 usually ships 5-16 days
036 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
037 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
038 175-0888 4 inch swivel caster wheel $62.04 2 ships same day
039 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
040 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 8 ships same day
041 175-1825 Washer $3.85 1 ships same day
042 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $10.94 1 ships same day
