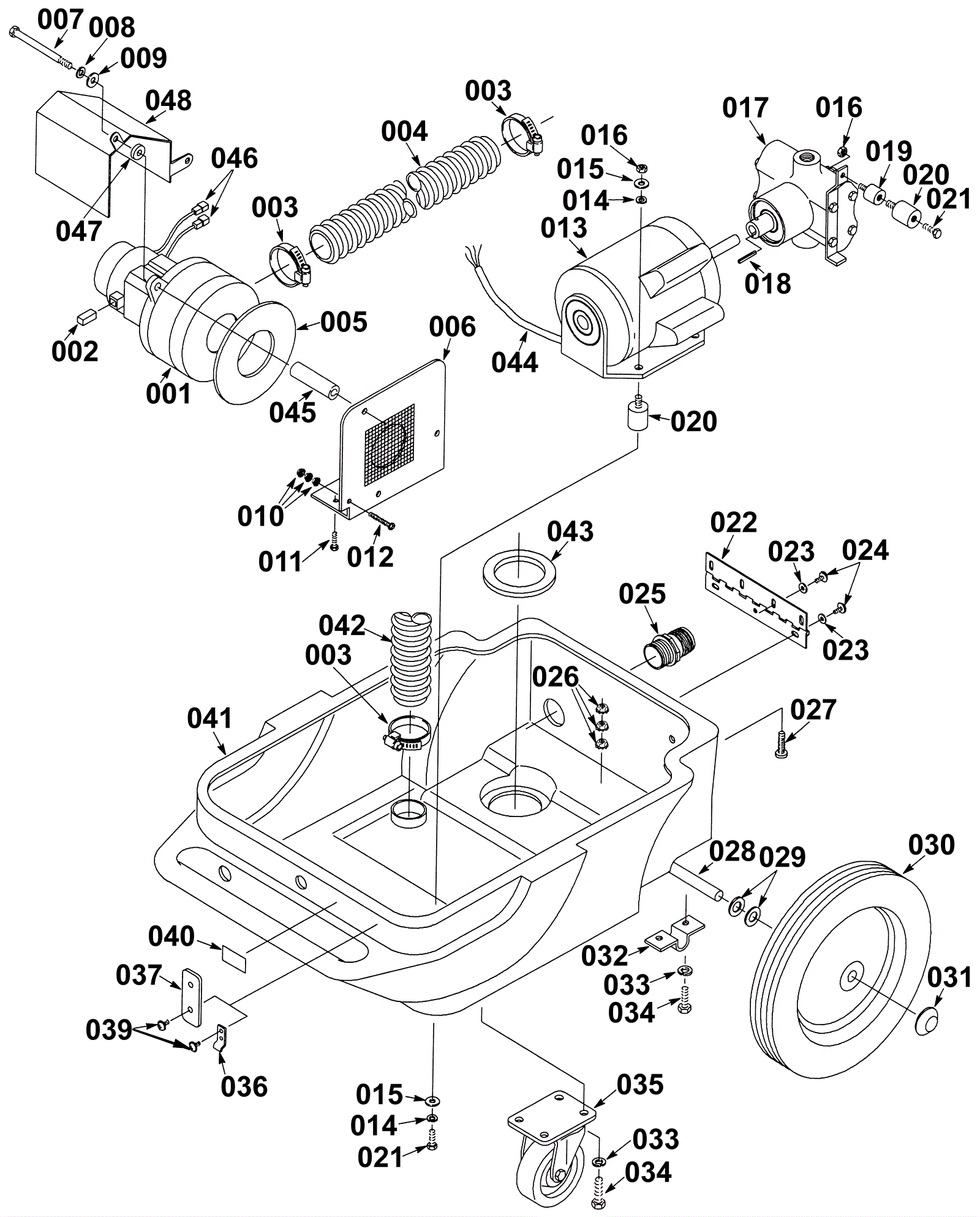

QUICKCLEAN 1500 Lower Housing Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-6537 Vacuum motor $513.81 1 Contains 002 usually ships 10-16 days
002 175-0251 Carbon brush (pkg of 2) $41.80 1 120v (2 pak) usually ships 10-16 days
003 175-2057 Hose clamp $6.27 3 usually ships 1-5 days
004 175-1578 Vacuum hose 2 x 13 inch $20.57 1 usually ships 10-16 days
005 175-6085 Gasket $10.89 1 ships same day
006 175-1878 Vacuum motor mounting bracket $94.16 1 usually ships 1-5 days
007 999-0682 Bolt 1/4-20 x 3 1/2 hex head grade 5 zinc plated $1.06 3 ships same day
008 999-0632 Washer 1/4 split lock stainless steel $0.99 5 ships same day
009 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
010 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
011 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 usually ships 12-18 days
012 999-0400 Screw 10-24 x 1 pan head phillips zinc plated $0.99 1 ships same day
013 175-1885 1/3 HP pump drive motor $1,028.50 1 120v usually ships 10-16 days
014 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
015 999-0024 Washer 5/16 flat stainless steel $1.34 4 usually ships 12-18 days
016 999-0593 Nut 5/16-18 hex stainless steel $0.99 3 ships same day
017 375-2583 Water pump kit $2,247.52 1 Kit includes 018 usually ships 10-16 days
018 175-1918 Square keyway $6.60 1 usually ships 1-5 days
019 175-1893 Motor mount $12.10 1 usually ships 1-5 days
020 175-1891 Motor mount $20.35 3 120v usually ships 10-16 days
021 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 3 ships same day
022 175-6077 Tank hinge $14.19 1 ships same day
023 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
024 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 7 ships same day
025 175-0203 Hose barb fitting $6.49 1 usually ships 10-16 days
026 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
027 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 1 ships same day
028 175-1900 Axle $24.86 1 usually ships 10-16 days
029 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
030 175-1902 Wheel $132.33 2 usually ships 10-16 days
031 175-6097 Hub cap $5.50 2 ships same day
032 175-6098 Axle bracket $19.47 2 usually ships 10-16 days
033 999-0632 Washer 1/4 split lock stainless steel $0.99 12 ships same day
035 175-0888 4 inch swivel caster wheel $67.87 2 ships same day
036a 175-3369 Hood latch $35.09 2 usually ships 10-16 days
036b 991-8561 Rubber draw latch with keeper $29.57 2 usually ships 14-21 days
037 175-6536 Tank strap $8.36 2 CSA and EMC models usually ships 1-5 days
039 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 6 CSA and EMC models ships same day
040 175-1912 Chemical decal $5.50 1 usually ships 1-5 days
041 175-1913 Chassis (green) $318.78 1 Green usually ships 1-5 days
042 175-1917 Hose 2 x 28 inch $40.70 1 usually ships 10-16 days
043 175-1920 Vacuum motor intake gasket $8.80 1 usually ships 10-16 days
044 175-6539 Cord 18/3 x 24 inch $10.56 1 usually ships 1-5 days
045 175-1919 Spacer $14.08 3 usually ships 10-16 days
046 175-0142 1/4 inch male terminal $5.28 2 usually ships 10-16 days
047 175-1362 Nylon spacer $4.36 2 EMC model only usually ships 10-16 days
048 175-6540 Vacuum motor shield $69.74 1 EMC model only usually ships 10-16 days
