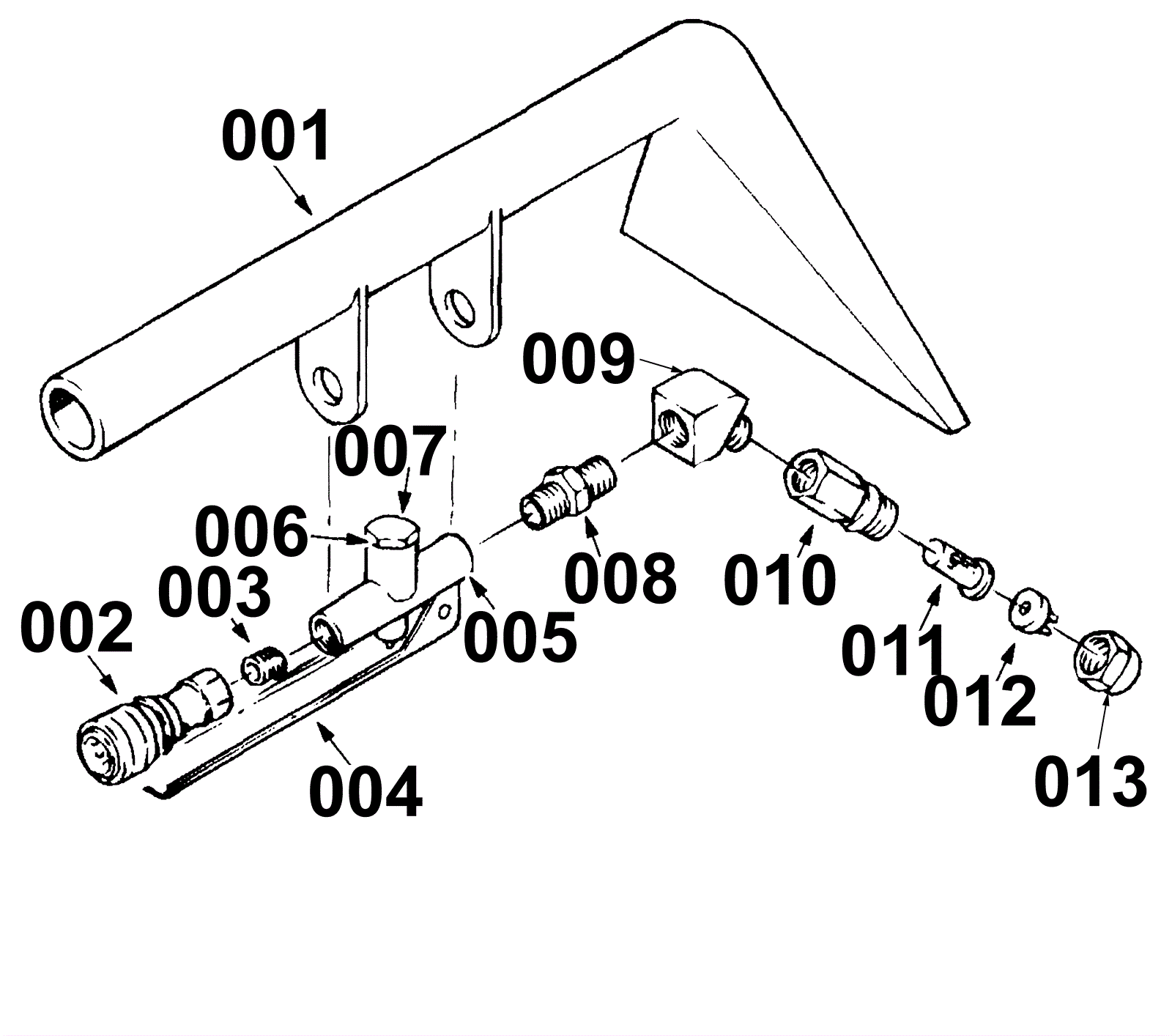

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
175-3567
|
5 inch hand tool assembly |
1 |
|
|
001 |
175-3568
|
5 inch hand tool |
1 |
|
|
002 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
003 |
175-6244
|
Nipple |
1 |
|
|
004 |
175-3569
|
Hand tool trigger |
1 |
|
|
005 |
175-3570
|
Valve |
1 |
|
|
006 |
175-3571
|
Valve pin and spring (OBSOLETE) |
1 |
|
|
007 |
N/A
|
Not available |
1 |
Valve cap |
|
008 |
175-6239
|
1/4 inch nipple |
1 |
|
|
009 |
175-6031
|
Straight jet fitting |
1 |
|
|
010 |
175-3562
|
On/off decal |
1 |
|
|
011 |
175-1802
|
Mesh screen filter |
1 |
|
|
012 |
175-3573
|
Spray tip |
1 |
|
|
