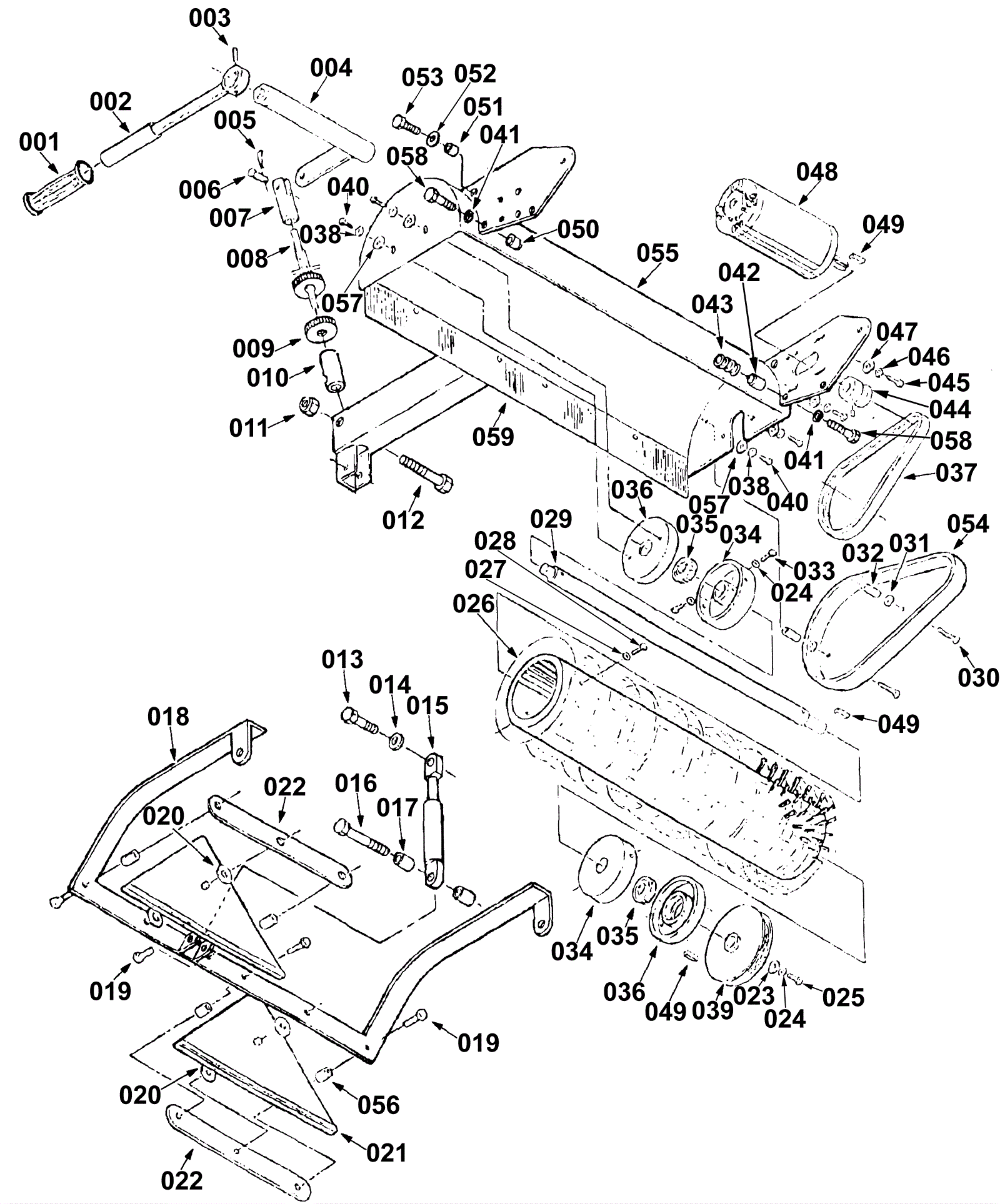

Brush Head Assembly

#PartDescription ReqNotesAvailability
001a 675-9894 Handle grip 1
001b 991-8571 Handle grip 2
002 175-7437 Brush head lift arm 1
003 175-2606 Roll pin 1
004 175-7438 Lift shaft 1
005 175-4331 Cotter hair pin 1
006 175-5894 Clevis pin 1
007 175-7439 Lift rod clevis 1
008 175-7440 Lift rod assembly 1
009 175-7441 Brush adjustment nut 1
010 175-7442 Lift rod adapter 1
011 999-1208 Nut 1/2-13 nylon insert lock stainless steel 1
012 999-1113 Bolt 1/2-13 x 2 1/2 hex cap stainless steel 1
013 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 2
014 999-0024 Washer 5/16 flat stainless steel 2
015 175-7443 Gas cylinder spring 2
016 999-1207 Screw 5/16-18 x 2 1/2 hex head stainless steel 2
017 175-7444 Bushing (OBSOLETE) 4
018 175-7445 Pick-up tool mount bracket (OBSOLETE) 1
019 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 4
020 175-6565 Polypropelene washer 4
021 175-7446 Pick up tool assembly (with offset lips) 2
023 999-1119 Washer 1/4 x 1 fender zinc plated 1
024 999-0632 Washer 1/4 split lock stainless steel 5
025 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
026 175-7448 Brush - CYLINDRICAL 1
027 999-0553 Washer 5/16 medium split lock stainless steel 4
028 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 4
029 175-7460 Brush shaft (OBSOLETE) 1
030 999-0574 Screw 10-24 x 1 3/4 pan head slotted zinc plated 2
031 999-0393 Washer 3/16 flat aluminum 4
032 175-7355 Plastic spacer 2
033 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 4
034 175-7449 Brush mount adapter 2
035 175-0957 Brush bearing 2
036 175-7450 Bearing cap 2
037 175-7451 Brush drive belt (OBSOLETE) 1
038 999-0632 Washer 1/4 split lock stainless steel 4
039 175-7452 Brush shaft sheave 1
040 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
041 999-0632 Washer 1/4 split lock stainless steel 1
042 175-7453 Manifold mount pin 1
043 175-5889 Compression spring 1
044 175-7454 Brush motor sheave 1
045 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 4
046 999-0632 Washer 1/4 split lock stainless steel 4
047 999-0016 Washer 1/4 flat plain finish 4
048 175-7455 36V Electric motor 1
049 175-1087 Square keyway 2
050 175-7456 Manifold mount pin 1
051 175-2731 Bushing 2
052 999-0032 Washer 3/8 USS flat plain finish 2
053 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2
054 175-7457 Drive belt cover (OBSOLETE) 1
055 175-7458 Brush housing weldment 1
056 175-7422 5/8 Inch sleeve bushing 4
057 999-0016 Washer 1/4 flat plain finish 4
058 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
059 175-7459 Splash guard (OBSOLETE) 1
