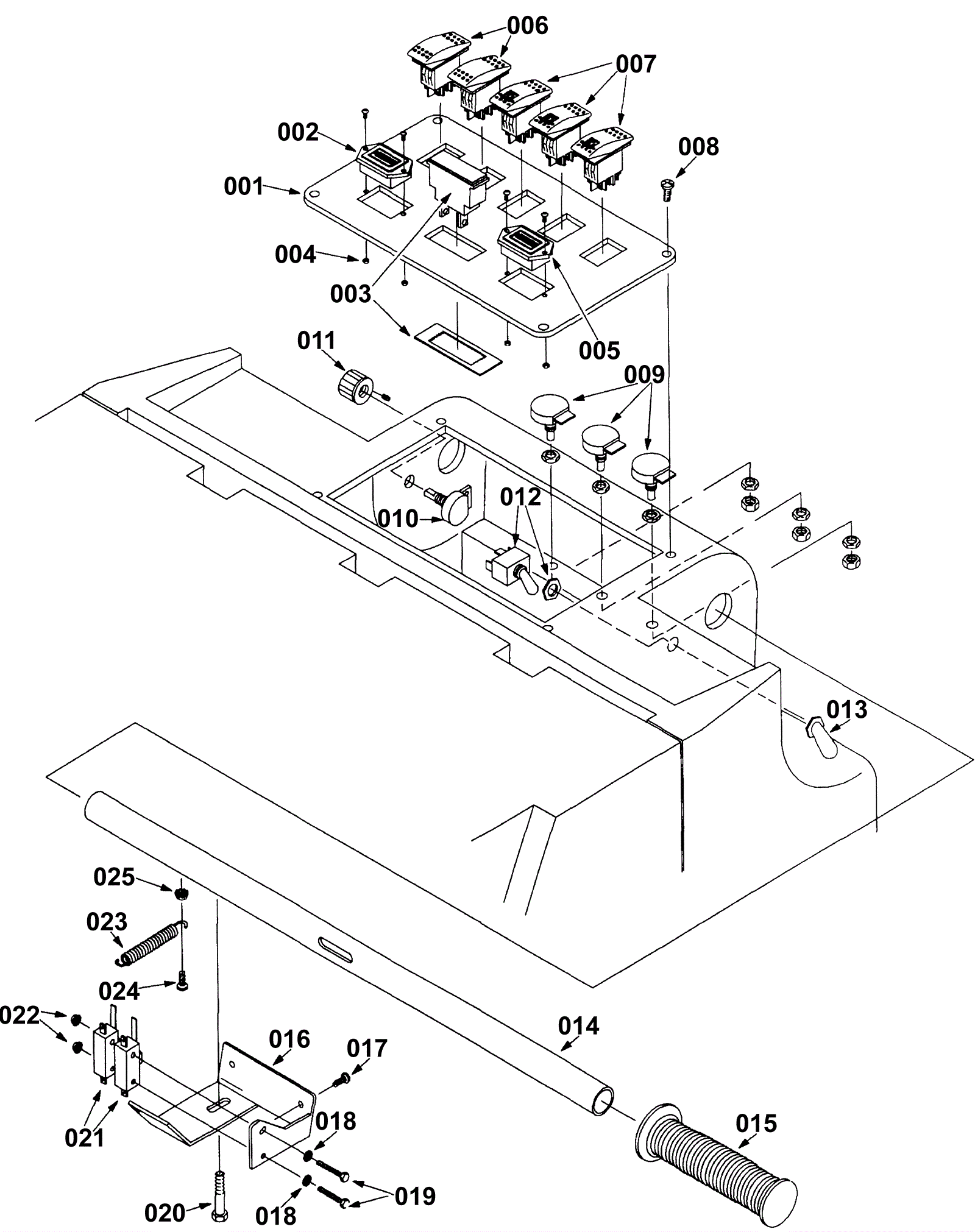

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-7431
|
Control console plate |
1 |
|
|
002 |
175-1213
|
Hour meter |
1 |
|
|
003 |
175-7432
|
Brush pressure meter (OBSOLETE) |
1 |
|
|
004 |
999-0195
|
Nut 6-32 hex plain |
4 |
|
|
005 |
175-7433
|
LED battery gauge (OBSOLETE) |
1 |
|
|
006 |
175-7435
|
Handle tube with dimple |
2 |
|
|
007 |
175-3098
|
Lighted on/off rocker switch |
3 |
|
|
008 |
999-0147
|
Screw 6-32 x 3/8 round head slotted zinc plated |
4 |
|
|
009 |
175-3106
|
Lockable potentiometer |
4 |
|
|
010 |
175-3105
|
Potentiometer |
1 |
|
|
011 |
175-1163
|
Speed control knob |
3 |
|
|
012 |
175-3103
|
Toggle switch |
1 |
|
|
013 |
175-3104
|
Switch boot |
1 |
|
|
014 |
175-7435
|
Handle tube with dimple |
1 |
|
|
015a |
675-9894
|
Handle grip |
2 |
|
|
015b |
991-8571
|
Handle grip |
2 |
(NON-OEM) |
|
016 |
175-7436
|
Switch mount bracket |
1 |
|
|
017 |
999-0557
|
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
2 |
|
|
018 |
999-0148
|
Washer #6 external star lock zinc plated |
2 |
|
|
019 |
999-1157
|
Screw 6-32 x 1 5/8 pan head phillips zinc |
2 |
|
|
020 |
999-1132
|
Bolt 5/16-18 x 3 hex head stainless steel |
1 |
|
|
021a |
175-3116
|
Snap switch |
2 |
|
|
021b |
991-5121
|
Charger interlock switch (OBSOLETE) |
2 |
(NON-OEM) |
|
022 |
999-0195
|
Nut 6-32 hex plain |
2 |
|
|
023 |
175-3113
|
Extension spring |
1 |
|
|
024 |
999-1029
|
Screw 10-24 x 5/8 truss head phillips stainless steel |
1 |
|
|
025 |
999-0356
|
Nut 10-24 lock stainless steel |
1 |
|
|
