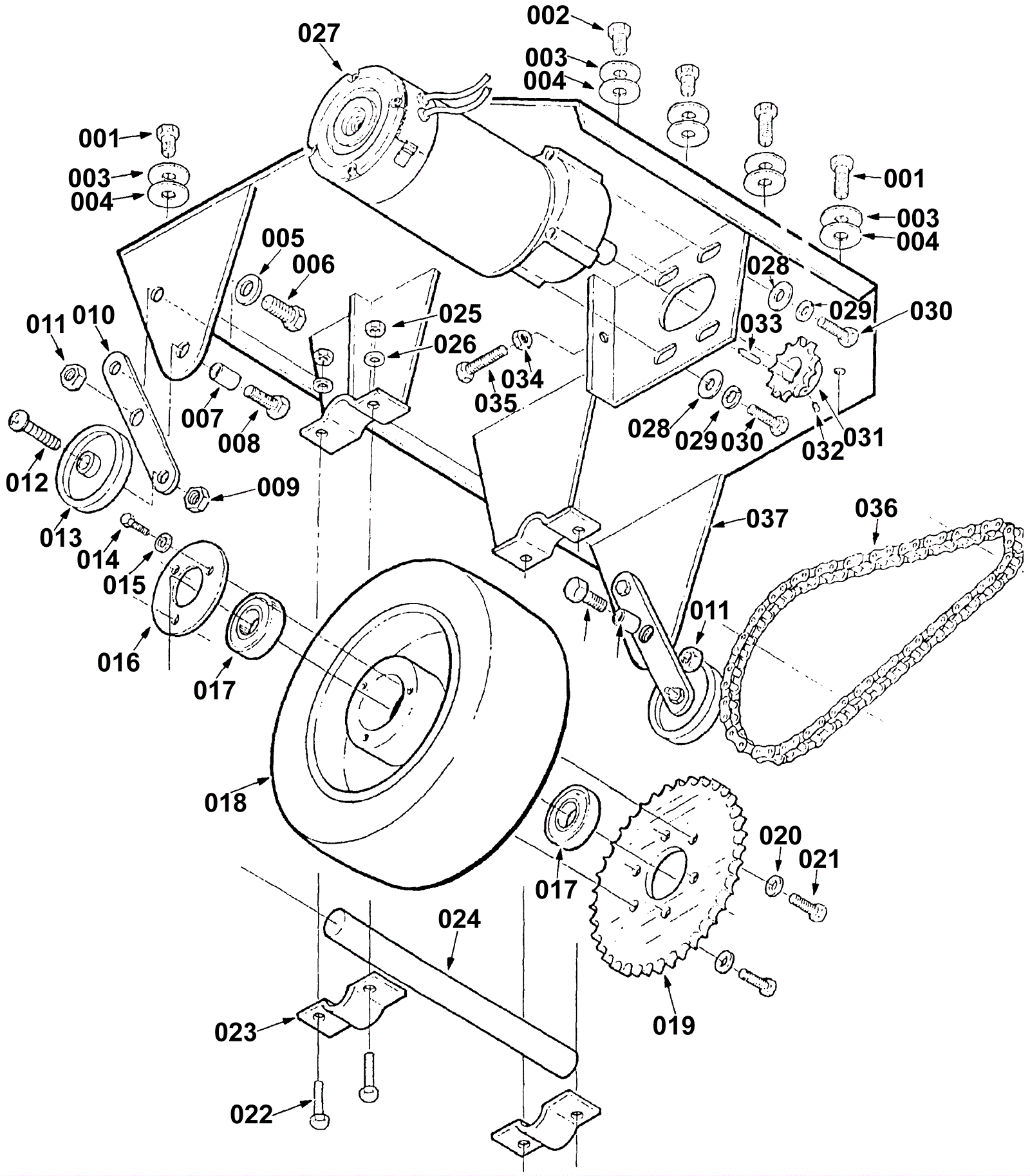

Drive Assembly

#PartDescription ReqNotesAvailability
001 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
002 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
003 999-0617 Washer 3/8 x 1 flat stainless steel 6
004 999-0187 Washer 1/2 flat plain finish 6
005 999-0553 Washer 5/16 medium split lock stainless steel 2
006 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel 2
007 175-7422 5/8 Inch sleeve bushing 2
008 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 2
009 999-0628 Nut 3/8-16 hex jam stainless steel 2
010 175-7423 Black safety wheel plate 2
011 999-0050 Nut 1/2-13 hex jam plain finish 2
012 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated 2
013 175-2775 Wheel 4 x 1 3/8 inch 2
014 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 3
015 999-0553 Washer 5/16 medium split lock stainless steel 9
016 175-7424 Black wheel bearing retainer 1
017 175-2781 Wheel bearing 2
018 175-7425 Drive wheel 10 x 4 inches (OBSOLETE) 1
019 175-7426 #40-48 Drive wheel sprocket 1
020 999-0553 Washer 5/16 medium split lock stainless steel 6
021 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 6
022 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
023 175-2784 Axle clamp 2
024 175-2783 Drive wheel shaft 1
025 999-0170 Nut 3/8-16 hex plain finish 4
026 999-0034 Washer 3/8 split lock plain finish 4
027a 175-7427 Electric drive motor 1
027b 175-7428 Carbon brush kit (pkg. of 2) (OBSOLETE) 4
028 999-0032 Washer 3/8 USS flat plain finish 3
029 999-0034 Washer 3/8 split lock plain finish 3
030 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
031 175-2769 Sprocket (OBSOLETE) 1
032 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 2
033 N/A Not available 1 Stepped key
034 999-0628 Nut 3/8-16 hex jam stainless steel 1
035 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 1
036 175-7429 #40 Nickle plated drive chain 1
037 175-7430 Black wheel bracket assembly (OBSOLETE) 1
