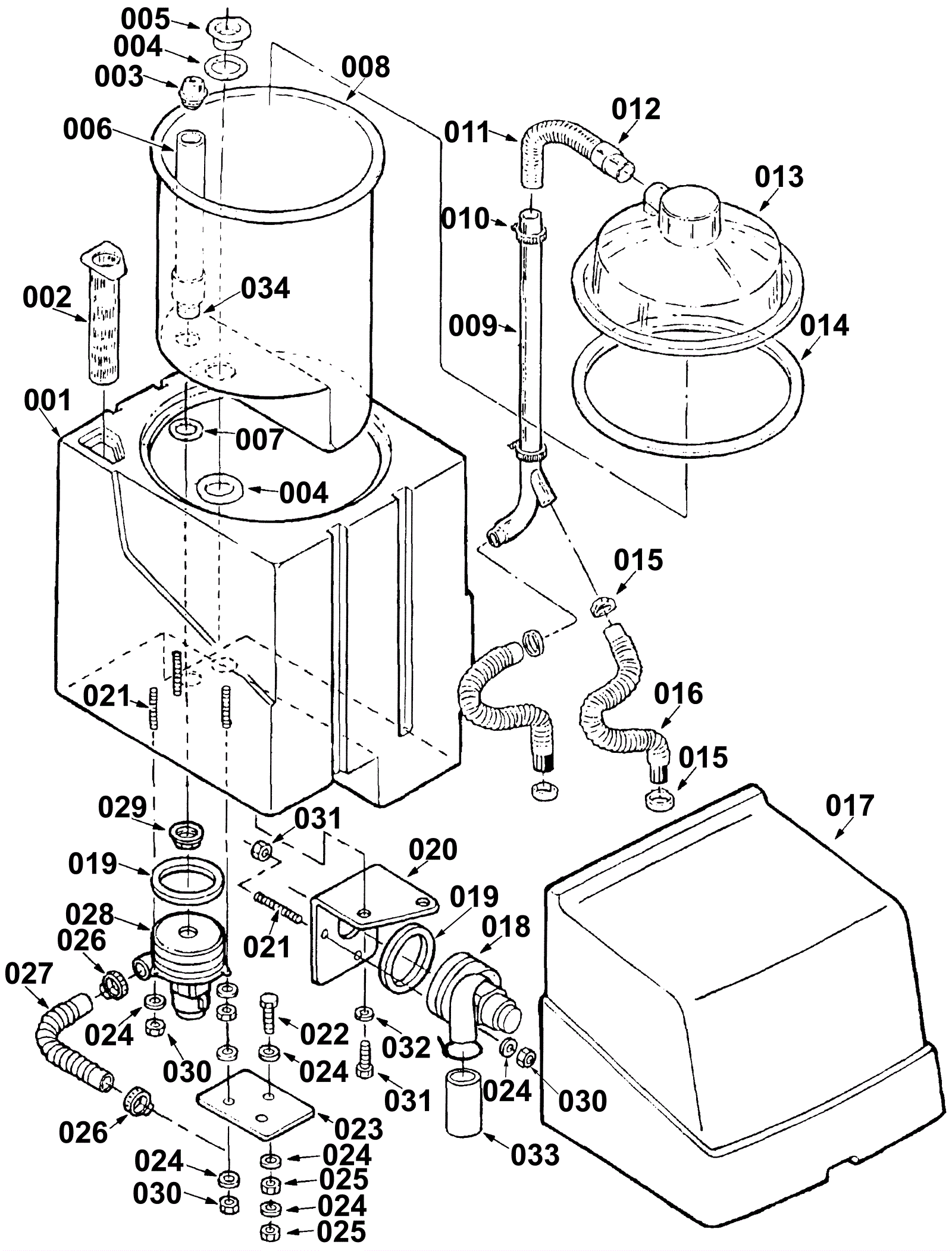

Upper Housing Assembly

#PartDescription ReqNotesAvailability
001 175-7401 Off white solution tank 1
002 175-7402 Solution tank filter screen 1
003 175-6261 Mesh filter screen 1
004 175-7418 Inlet flange gasket (1 bag and 2 gaskets) 2
005 175-7387 Flange inlet with flats 1
006a 175-7403 Standpipe 1
006b 175-2639 1 1/2 inch nipple fitting 1
008 175-7404 Trimmed recovery tank (OBSOLETE) 1
009 175-7405 Black inlet tube (OBSOLETE) 1
010 175-2057 Hose clamp 2
011 175-7406 Black vacuum hose (10.25 feet required) 1
012 175-6269 1 1/2 inch hose cuff (OBSOLETE) 1
013 275-6143 Tank lid 1
014 175-6273 Solution tank (OBSOLETE) 1
015 175-4580 Vacuum hose clamp 4
016 175-7407 Drain hose (black) (OBSOLETE) 2
017 175-7408 Off white hood cover (OBSOLETE) 1
018a 175-7409 36V vacuum motor with snout 1
018b 175-5182 Carbon brush (sold individually) 2
019 N/A Not available 2 Neoprene motor seat
020 175-7410 Vacuum mount plate (OBSOLETE) 1
021 175-6078 Stud 1/4-20 x 5 inch full threaded 6
022 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 2
023 175-7411 Connector plate (OBSOLETE) 1
024 999-0016 Washer 1/4 flat plain finish 12
025 999-0015 Nut 1/4-20 k-lock zinc plated 2
026 175-2057 Hose clamp 2
027 175-7412 Vacuum hose (OBSOLETE) 1
028a 175-5728 Vacuum motor (OBSOLETE) 1
028b 175-5182 Carbon brush (sold individually) 2
029 175-2907 Nut 1 1/2 flanged hex 1
030 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
031 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
032 999-0632 Washer 1/4 split lock stainless steel 2
033 175-2979 Vacuum exhaust muffler 1
N/S 175-7417 Full line label 1
N/S 175-7414 Oval green logo label (OBSOLETE) 1
N/S 175-7415 Battery charge label 1
N/S 175-7416 Foam warning label 1
N/S 175-7413 Model name label (OBSOLETE) 2
