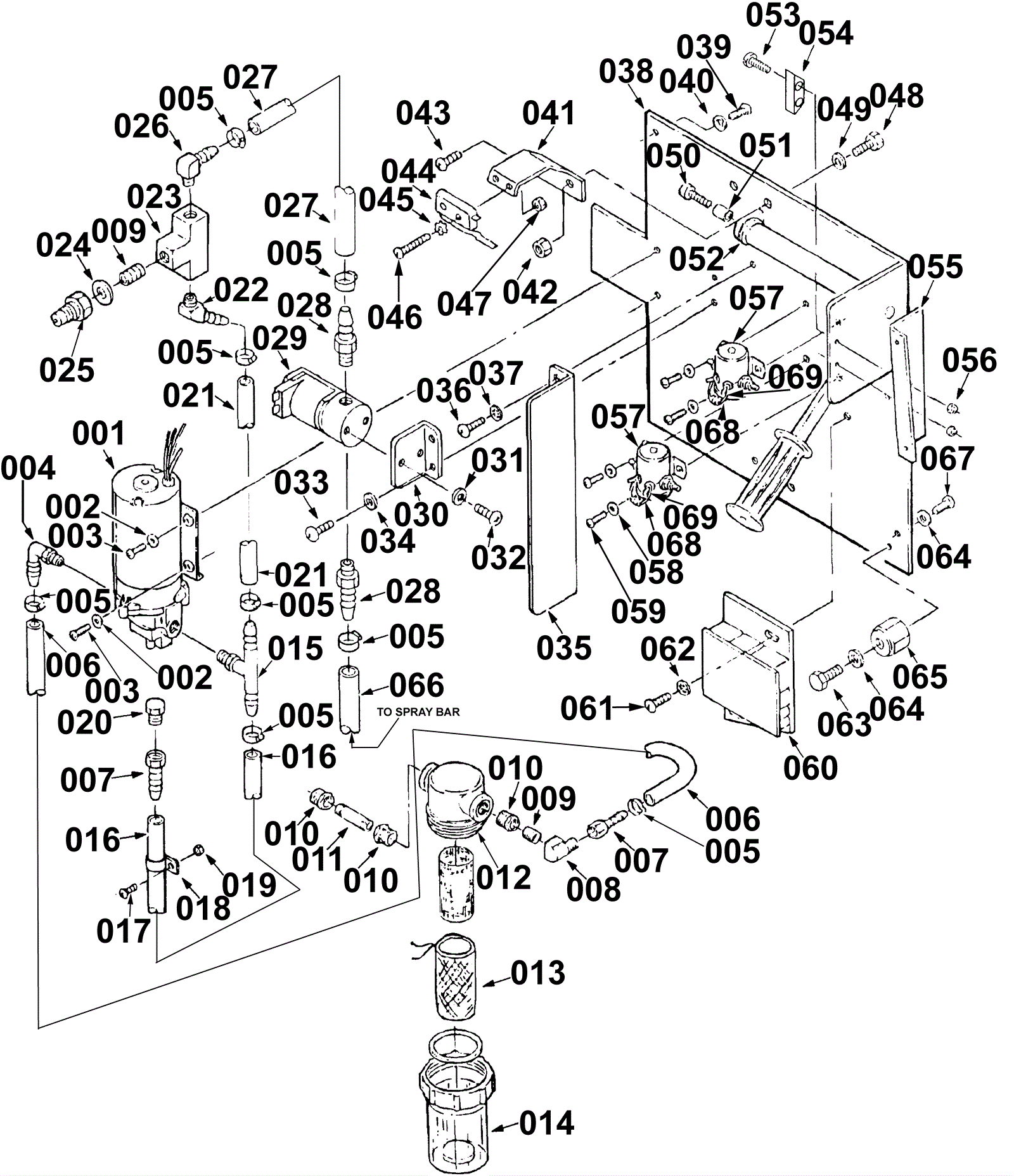

Plumbing System Assembly

#PartDescription ReqNotesAvailability
001 175-6556 Pump 100psi 36v (OBSOLETE) 1
002 999-0016 Washer 1/4 flat plain finish 2
003 999-1077 Screw 1/4-20 x 1/2 truss head phillips stainless steel 2
004 175-6019 90 degree barbed elbow 1
005 175-6081 Hose clamp 15
006 175-6020 Braided hose 3/8 x 45 inch (gray) 1
007 175-6022 Brass fitting 1
008 175-2614 90 degree elbow fitting 1
009 175-6244 Nipple 1
010 175-1977 Fitting 1/4 x 3/8 3
011 175-6015 Nipple 1
012 175-5636 Inline strainer filter assembly (OBSOLETE) 1 Assembly includes 013 and 014
013 175-6557 Sleeve filter (OBSOLETE) 1
014 175-5639 Clear filter bowl 1
015 175-6558 Male tee fitting 3/8 x 3/8 1
016 175-6020 Braided hose 3/8 x 45 inch (gray) 1
017 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
018 175-0988 P clamp 1
019 999-0442 Nut 10-24 nylon insert lock stainless steel 1
020 175-1042 1/4 Inch hex brass plug fitting 1
021 175-6020 Braided hose 3/8 x 45 inch (gray) 1
022 175-3061 Hosebarb 2
023 175-6253 1/4 inch brass tee 1
024 175-1825 Washer 1
025 175-1921 Motor crimp kit 1
026 175-2997 Elbow 1
027 175-6020 Braided hose 3/8 x 45 inch (gray) 1
028 175-1659 Fitting 2
029 175-6559 36V solenoid valve 1
030 175-6560 Solenoid bracket 1
031 999-1083 Washer #8 internal star lock stainless steel 2
032 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 2
033 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 2
034 999-0053 Washer #10 split lock plain finish 4
035 175-6561 Divider plate 1
036 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 4
037 999-0053 Washer #10 split lock plain finish 4
038 175-6562 Control plate 1
039 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 5
040 999-0553 Washer 5/16 medium split lock stainless steel 4
041 175-6563 Revolving switch bracket 1
042 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
043 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 1
044a 175-3116 Snap switch 1
044b 991-5121 Charger interlock switch (OBSOLETE) 1 (NON-OEM)
045 999-0148 Washer #6 external star lock zinc plated 2
046 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
047 999-0195 Nut 6-32 hex plain 2
048 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
049 175-1886 Green twist cap 2
050 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 1
051 175-6564 Bushing 1
052 175-6565 Polypropelene washer 2
053 175-3663 Screw 1/4-20 x 5/8 socket 2
054 175-6566 Lock plate 1
055 175-6567 Support bracket (OBSOLETE) 1
056 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
057 175-1183 36V solenoid 2
058 999-0393 Washer 3/16 flat aluminum 4
059 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 1
060 175-6568 Speed board with heat sink 1
061 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 2
062 999-0053 Washer #10 split lock plain finish 2
063 175-1814 Waist belt latch 1
064 175-1880 Retrofit set 2
065 175-3226 Insulated stand off 1
066 175-6020 Braided hose 3/8 x 45 inch (gray) 1
067 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
068 175-2757 Diode with ring terminals (small) 2
069 175-3130 Terminal ring 4
