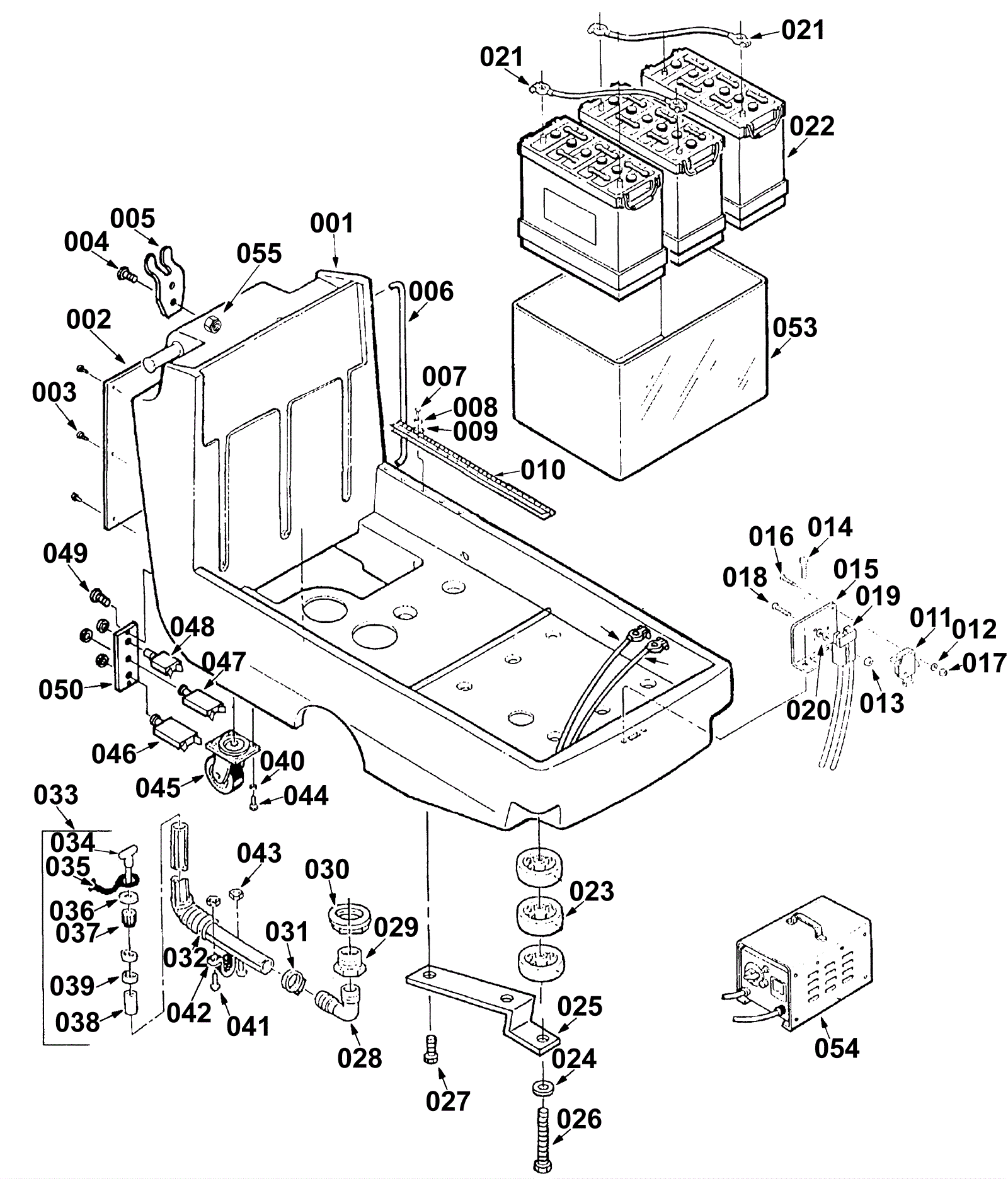

Main Chassis Assembly

#PartDescription ReqNotesAvailability
001 175-7376 Teal chassis (OBSOLETE) 1
002a 175-7377 Rear panel 1
002b 275-1360 Warning decal 1
003 175-7378 Knob 5
004 999-0249 Screw 6-32 x 5/8 round head slotted zinc plated 2
005 175-6069 Drain hose bracket 2
006a 375-0078 10 1/2 foot PVC hose (clear) 1
006b 175-7380 Gallon marker label 1
007 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 9
008 999-0016 Washer 1/4 flat plain finish 9
009 999-0632 Washer 1/4 split lock stainless steel 9
011 175-1199 Snap switch 1
012 999-1521 Washer M3 flat stainless steel 2
013 999-0195 Nut 6-32 hex plain 2
014 999-1118 Screw 12 x 3/4 pan head phillips stainless steel sheet metal 2
015 175-7382 Plug mount plate 1
016 999-0738 Screw M3-.5 x 16mm pan head phillips zinc 2
017 999-1161 Nut M3-.5 hex nylock stainless steel 2
018 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
019 991-2105 SB50 50amp charger plug with pins (gray) 1
020 999-0337 Nut 6-32 nylon insert lock stainless steel 2
021 175-2659 Battery cable 15 inch x 6 gauge - clamp style 2
023 175-7383 Black rubber bumper wheel (OBSOLETE) 6
024 999-0187 Washer 1/2 flat plain finish 2
025a 175-7384 Left bumper wheel bracket 1
025b 175-7385 Right bumper wheel bracket 1
027 999-1205 Screw 1/2-13 x 6 1/2 hex cap stainless steel 4
028 175-5126 Elbow fitting (OBSOLETE) 1
029 175-7386 PVC adapter 1
030 175-7387 Flange inlet with flats 1
031 997-2007 Hose clamp 1
032 175-7388 Drain hose 1
033 175-6070 Drain plug assembly 1
034 175-6071 Drain plug knob 1
035 175-6072 Drain plug strap 1
036 999-1446 Washer 3/8 x 1 1/2 fender stainless steel 1
037 175-6073 Fitting 1
038a 175-6074 Drain hose sleeve 1
039 175-1789 Hose clamp 2
040 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8
041 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 2
042 175-7389 Black hose support bracket (OBSOLETE) 1
043 999-0442 Nut 10-24 nylon insert lock stainless steel 2
044 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 8
045 175-2768 Swivel caster wheel 2
046 175-2761 10amp circuit breaker 1
047 175-7287 60amp circuit breaker 1
048a 175-3132 10amp brush circuit breaker (OBSOLETE) 1
048b 991-8538 10amp circuit breaker 1 (NON-OEM)
049 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 2
050a 175-7390 Circuit breaker mount plate 1
050b 175-7391 Main brush drive label 1
051 175-7392 Red battery cable 1
052 175-9193 Chamber seal 1
053 175-7394 Battery box 1
054a 175-1204 36V 25amp battery charger with small SB50 gray plug 1
055 999-0195 Nut 6-32 hex plain 2
022 162-0002 12V 185Ah wet battery (SNSR) 3
022 162-0047 12V 215Ah AGM battery (Group J185) (SNSR) 3
