| # | Part | Description |
Req | Notes | Availability |
|---|

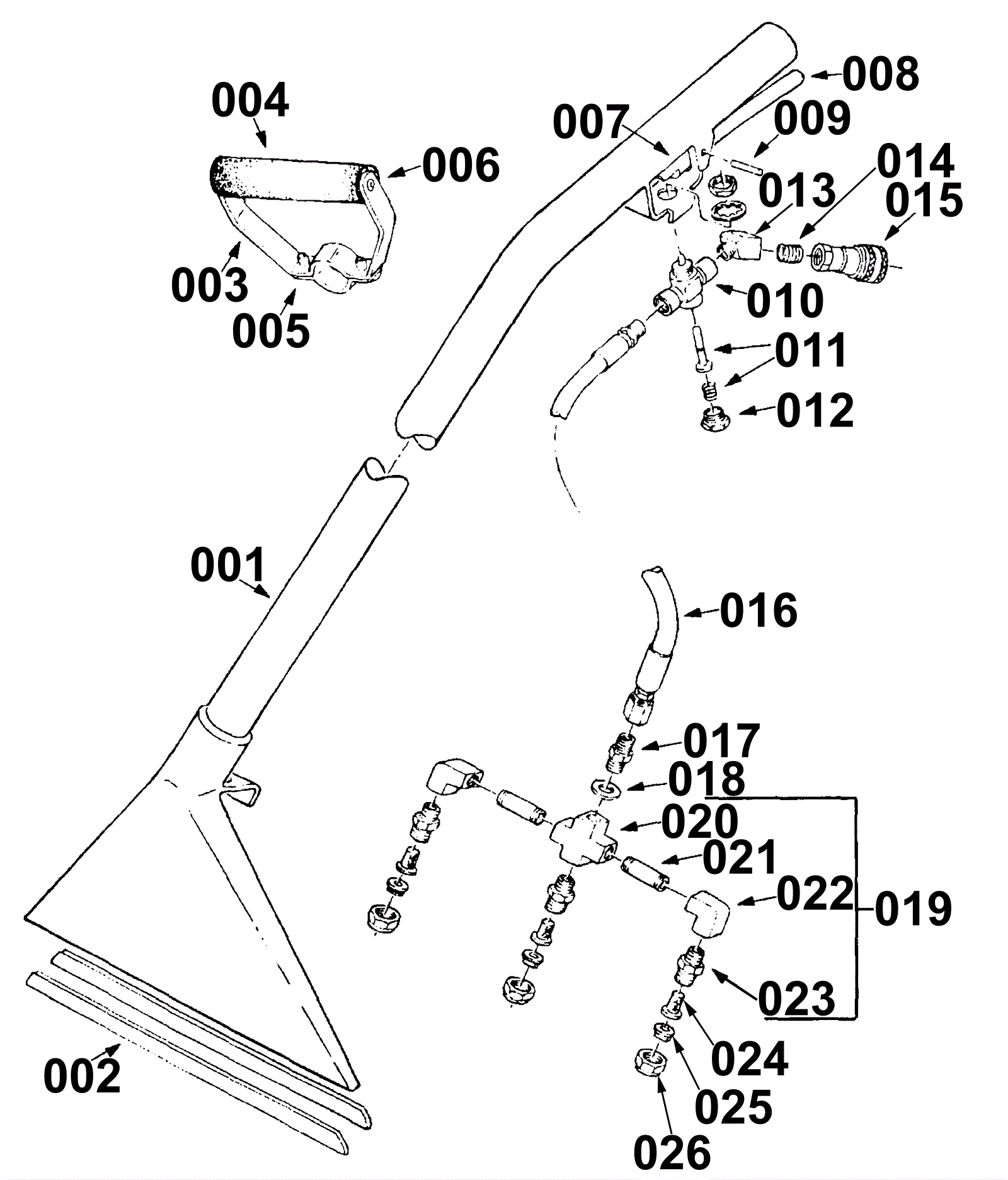

000 |
175-1141
|
Black wire (OBSOLETE) |
1 |
Includes |
|
001 |
175-1810
|
13 inch floor tool |
1 |
|
|
002 |
175-1321
|
13 inch pick-up shoe plate stainless steel |
2 |
|
|
003 |
175-1812
|
Handle assembly (OBSOLETE) |
1 |
|
|
004 |
175-1813
|
Foam grip |
1 |
|
|
005 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
2 |
|
|
006 |
999-0990
|
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
2 |
|
|
007 |
175-1815
|
Trigger |
1 |
|
|
008 |
175-1816
|
Handle sleeve |
1 |
|
|
009 |
175-1817
|
Handle pin |
1 |
|
|
010 |
175-1819
|
Manual valve assembly |
1 |
|
|
011 |
175-1820
|
Valve pin and spring kit |
1 |
|
|
012 |
N/A
|
Not available |
1 |
|
|
013 |
175-6031
|
Straight jet fitting |
1 |
|
|
014 |
175-6244
|
Nipple |
1 |
|
|
015 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
016 |
175-3565
|
Solution hose assembly |
1 |
|
|
017 |
175-6239
|
1/4 inch nipple |
1 |
|
|
018 |
175-1825
|
Washer |
1 |
|
|
019 |
175-1826
|
Spray bar without tips for 13 inch wand |
1 |
Includes 020-023 |
|
020 |
175-1829
|
Tee fitting |
1 |
Included in 019 |
|
021 |
175-6015
|
Nipple |
2 |
Included in 019 |
|
022 |
175-6248
|
90 degree elbow |
2 |
Included in 019 |
|
023 |
175-1830
|
1/4 inch male spray body |
3 |
Included in 019 |
|
024 |
175-1802
|
Mesh screen filter |
3 |
|
|
025 |
175-3566
|
T-jet tip fitting |
3 |
|
|
026 |
175-1834
|
Spray nozzle cap |
3 |
|
|
N/S |
175-1818
|
Nut 1/4 push |
2 |
|
|
