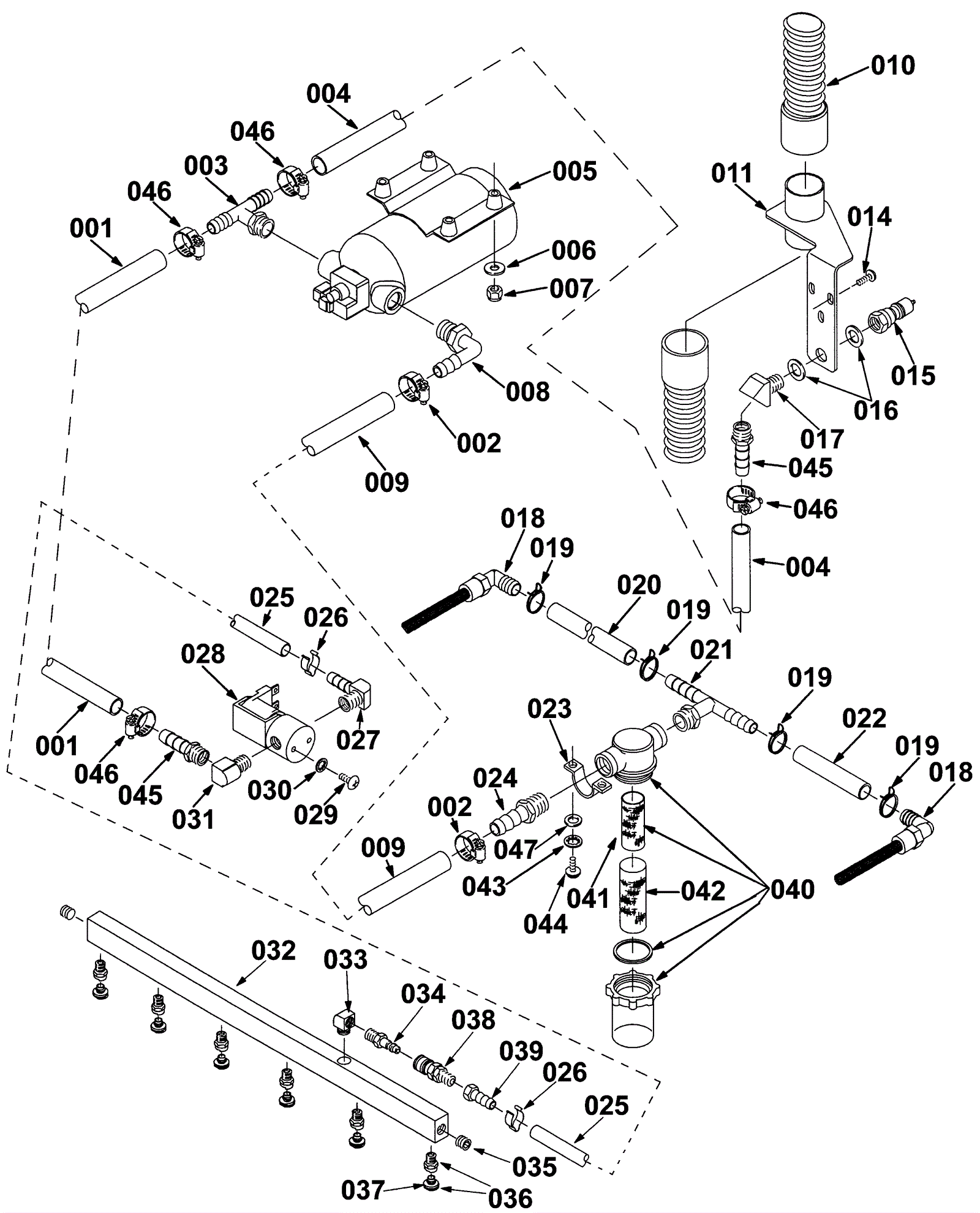

1510 Solution Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4298 11 inch hose (red) $19.00 1 usually ships 5-16 days
002 175-6081 Hose clamp $3.36 2 ships same day
003 175-3692 Tee fitting $8.50 1 usually ships 5-16 days
004 175-4298 11 inch hose (red) $19.00 1 usually ships 5-16 days
005 175-4191 24V 100PSI solution pump $416.10 1 ships same day
006 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
007 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
008 175-3685 90 degree elbow fitting $5.30 1 usually ships 5-16 days
009 175-4300 Hose (OBSOLETE) $4.92 1 usually ships 1-5 days
010 175-0887 Vacuum hose 1 1/2 x 33 inch $41.60 1 ships same day
011 175-4302 Bracket $101.60 1 usually ships 1-5 days
014 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 3 ships same day
015 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $8.75 1 usually ships 3-15 days
016 175-1825 Washer $3.50 2 ships same day
017 175-6031 Straight jet fitting $6.80 1 ships same day
018 175-4303 Inline filter with mesh screen $46.60 2 screen filter usually ships 5-16 days
019 175-3671 Hose clamp $3.60 4 ships same day
020 175-4304 Hose $12.30 1 usually ships 1-5 days
021 175-3692 Tee fitting $8.50 1 usually ships 5-16 days
022 175-4305 Hose $8.50 1 usually ships 1-5 days
023 175-3690 U clamp $23.90 2 usually ships 5-16 days
024 175-1025 Straight brass fitting $6.00 1 ships same day
025 175-4306 PVC braided hose 1/4 ID 1/2 OD x 24 inch (gray) (OBSOLETE) $9.80 1 usually ships 5-16 days
026 175-6170 Hose clamp $3.60 2 ships same day
027 175-4307 Hosebarb $10.90 1 usually ships 5-16 days
028a 175-4308 24V solenoid valve $217.80 1 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) usually ships 5-16 days
028b 991-8598 Replacement plunger with spring for solenoid valve $17.70 1 ships same day
029 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 2 ships same day
030 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
031 175-2614 90 degree elbow fitting $4.50 1 ships same day
032 175-1786 22 inch spraybar $75.50 1 ships same day
033 175-1661 90 degree elbow fitting $4.50 1 usually ships 5-16 days
034 175-1684 Quick disconnect fitting $19.60 1 usually ships 5-16 days
035 175-6121 Brass plug $3.60 2 ships same day
036 175-6118 Spray tip assembly $69.50 6 ships same day
037 175-3535 Brass spray tip $26.00 6 ships same day
038 175-1652 1/8 inch female brass quick coupler $32.00 1 ships same day
039 175-3529 Brass fitting $4.50 1 ships same day
040 175-4310 Solution filter bowl assembly $67.10 1 ships same day
041 175-6250 Strainer $14.20 1 ships same day
042 175-4311 Mesh filter screen $22.70 1 usually ships 5-16 days
043 999-9132 Washer M5 split lock stainless steel $0.99 4 ships same day
044 999-1040 Screw M3-.5 x 20mm pan head $0.99 4 ships same day
045 175-6030 Straight hosebarb $5.30 2 usually ships 5-16 days
046 175-0199 Hose clamp $5.80 4 usually ships 5-16 days
047 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
N/S 175-4309 Spray bar assembly $776.10 1 usually ships 5-16 days
