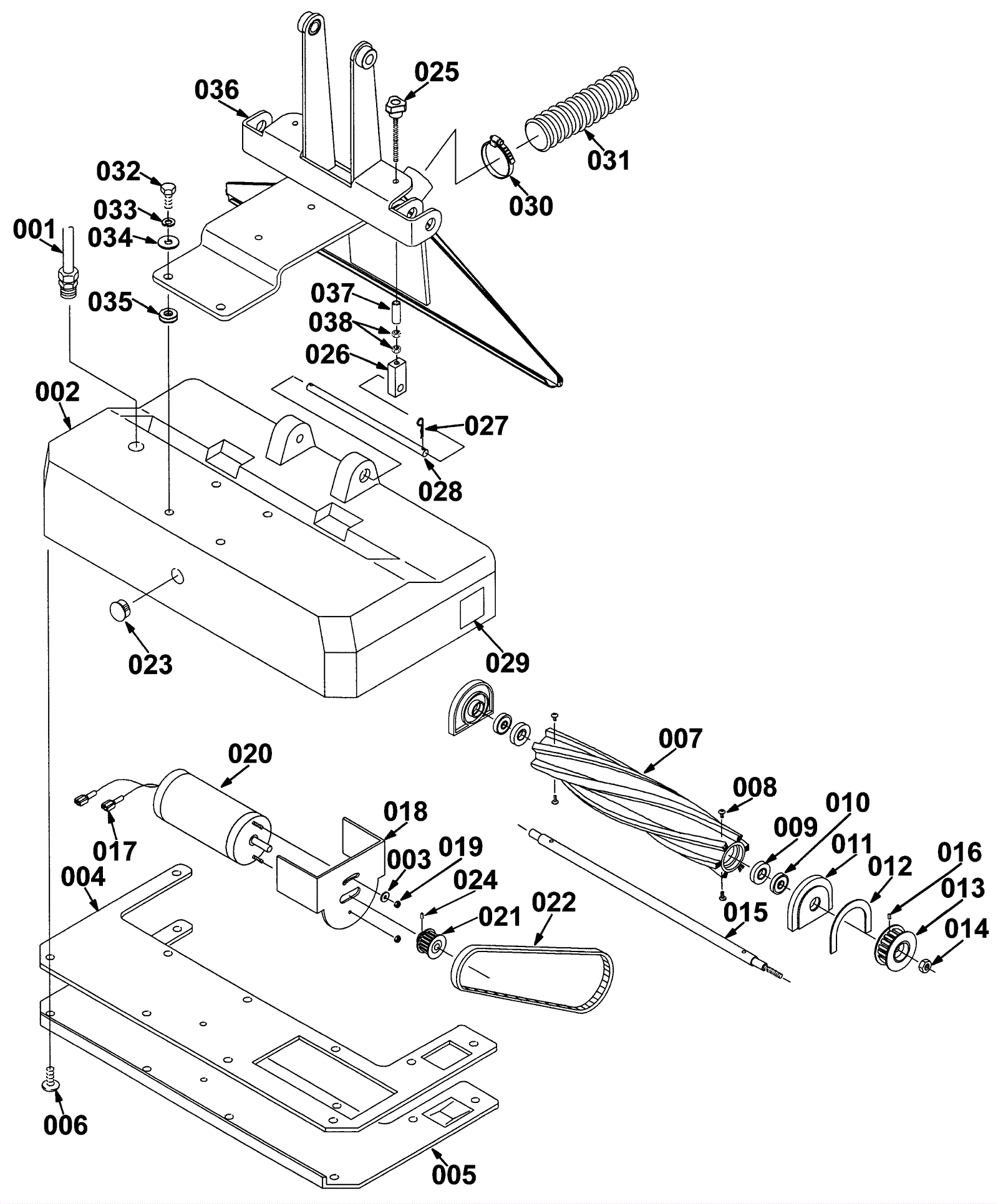

1510 Brush Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4315 18/3 cord 36 inch $16.60 1 usually ships 1-5 days
002 175-4316 22 inch base $213.00 1 usually ships 5-16 days
003 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
004 175-4317 Base plate gasket $90.40 1 usually ships 5-16 days
005 175-4818 Base plate $168.60 1 usually ships 5-16 days
006 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 11 ships same day
007 175-4319 Brush - CYLINDRICAL $206.20 1 usually ships 5-16 days
008 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
009 175-6134 Brush bearing seal $15.20 2 usually ships 5-16 days
010a 175-0069 Brush bearing $16.60 2 (OEM) ships same day
010b 991-5125 Brush bearing $2.20 2 (NON-OEM) usually ships 5-16 days
011 175-6133 Bearing block $8.70 2 usually ships 5-16 days
012 175-6143 Bearing block gasket $4.80 1 ships same day
013 175-4321 Brush pulley $77.70 1 usually ships 5-16 days
014 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 ships same day
015 175-4322 Brush shaft $71.12 1 usually ships 5-16 days
016 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
017 175-0923 Male terminal $3.60 2 usually ships 5-16 days
018 175-4324 Brush motor bracket $50.50 1 usually ships 5-16 days
019 999-0239 Nut 10-32 k-lock zinc plated $0.99 2 ships same day
020 175-4325 Electric brush motor $757.60 1 usually ships 5-16 days
021 175-4326 Motor pulley $59.60 1 usually ships 5-16 days
022 175-4327 Timing belt $42.60 1 usually ships 5-16 days
023 275-7479 PLUGBTN, BLACKNYL (Tennant Industrial) $5.01 1 usually ships 5-16 days
024 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
025 175-4329 Knob 1/4-20 x 3 stud $29.10 2 ships same day
026 175-4330 Adjustment bar $27.30 2 ships same day
027 175-4331 Cotter hair pin $3.60 2 ships same day
028 175-4332 Pivot shaft $16.90 1 ships same day
029 175-1238 Moving parts decal $4.80 2 ships same day
030 997-2007 Hose clamp $2.07 1 ships same day
031 175-4333 Vacuum hose with one cuff $35.40 1 usually ships 5-16 days
032 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
033 999-1053 Washer 5/16 internal star lock stainless steel $0.99 10 ships same day
034 999-0024 Washer 5/16 flat stainless steel $1.34 11 ships same day
035 175-4334 Washer spherical $13.60 2 usually ships 5-16 days
036 175-4335 Vacuum shoe $802.60 1 usually ships 5-16 days
037 175-4336 Spacer $19.60 2 ships same day
038 999-0181 Nut 1/4-20 hex jam plain finish $0.99 4 ships same day
N/S 175-4023 Brush assembly with bearings - CYLINDRICAL $381.30 1 usually ships 5-16 days
