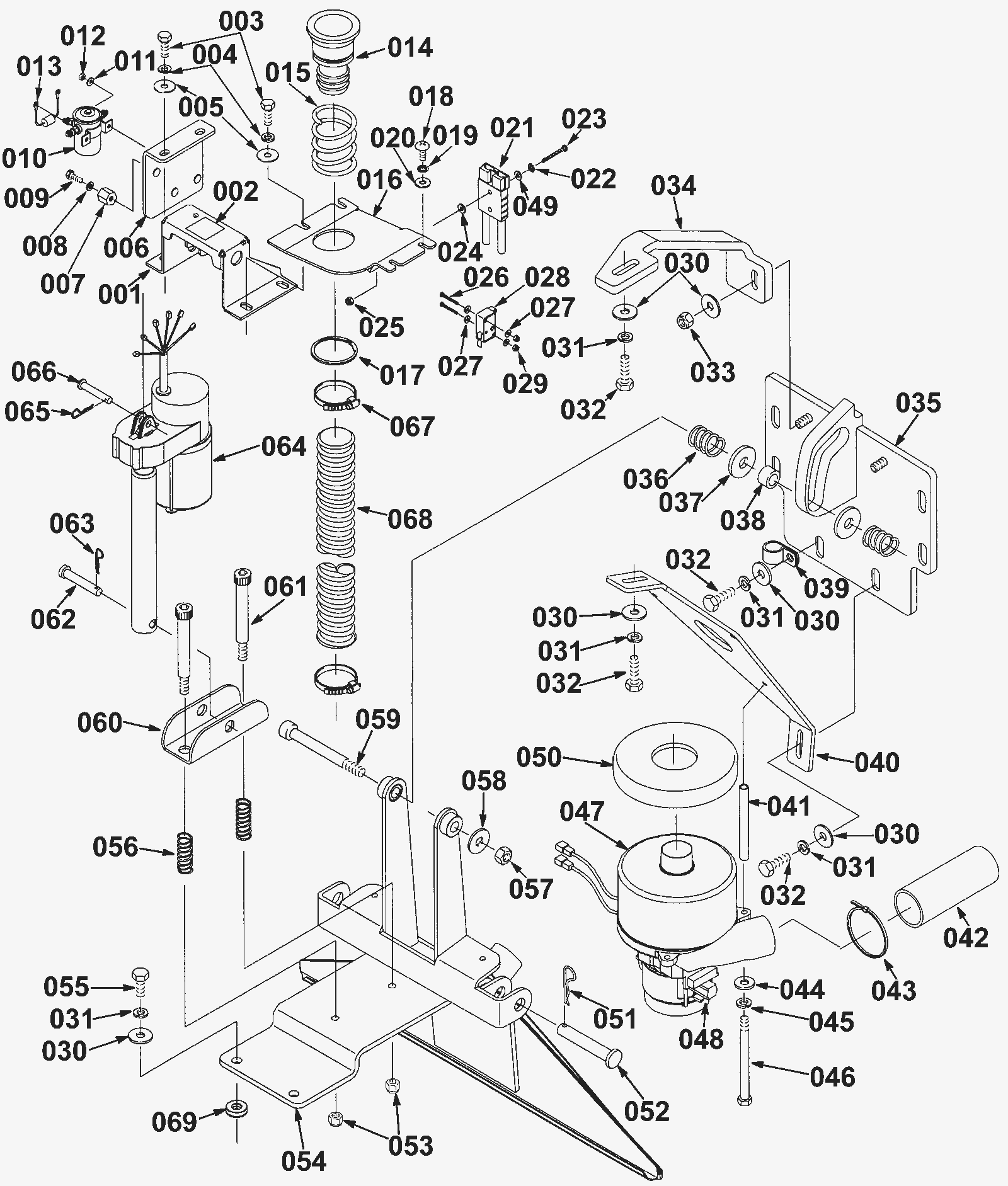

Vacuum Shoe Assembly

#PartDescription ReqNotesAvailability
001 175-8644 Actuator mounting bracket 1
002 175-4351 General hazard decal 1
003 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
004 999-1053 Washer 5/16 internal star lock stainless steel 4
005 999-0024 Washer 5/16 flat stainless steel 4
006 175-4352 Contactor bracket 1
007 175-3226 Insulated stand off 1
008 999-0632 Washer 1/4 split lock stainless steel 1
009 175-0932 Screw 1/4-20 x 5/8 hex head 1
010 175-2023 24V solenoid contactor 1
011 999-0123 Washer 1/4 SAE flat zinc plated 2
012 999-0469 Nut M6-1 nylon insert lock zinc plated 2
013 175-2757 Diode with ring terminals (small) 1
014 175-3635 Transition tube 1
015 175-4353 Compression spring 1
016 175-4354 Vacuum hose bracket for the solution tank 1
017 175-4355 Retaining ring 1
018 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
019 999-0632 Washer 1/4 split lock stainless steel 2
020 999-0016 Washer 1/4 flat plain finish 2
021 991-9284 50amp charger plug SB50 with pins (red) 1
022 999-0148 Washer #6 external star lock zinc plated 2
023 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
024 999-0393 Washer 3/16 flat aluminum 2
025 999-0195 Nut 6-32 hex plain 2
026 175-1333 Screw M3-.5 x 20mm hex head 2
027 999-1553 Washer M3.5 flat zinc plated 4
028 175-4273 Switch 1
029 999-1161 Nut M3-.5 hex nylock stainless steel 2
030 999-0024 Washer 5/16 flat stainless steel 11
031 999-1053 Washer 5/16 internal star lock stainless steel 10
032 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
033 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
034 175-4357 Bracket 1
035 175-4013 Bracket 1
036 175-4371 Compression spring 2
037 175-4358 Washer 1 1/2 thrust 2
038 175-4359 Linkage roller 1
039 175-3005 P clamp 1
040 175-4360 Vacuum motor bracket 1
041 175-4243 Spacer 3
042 175-2979 Vacuum exhaust muffler 1
043 175-0921 Wire tie 1
044 999-0016 Washer 1/4 flat plain finish 3
045 999-0632 Washer 1/4 split lock stainless steel 3
046 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish 3
047a 175-4361 24V 3 stage vacuum motor 1 OEM
047b 991-1230 24V 3 stage vacuum motor tangential with snout 1 (NON-OEM)
048 175-2658 Carbon brush (pkg of 2) 1
049 999-0377 Washer 6 SAE flat plain finish 1
050 675-9893 Vacuum motor gasket 1
051 175-2106 Cotter hair pin 2
052 175-2105 Clevis pin 2
053 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
055 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
056 175-4364 Compression spring 2
057 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
058 999-0032 Washer 3/8 USS flat plain finish 1
059 175-2856 Bolt 3/8-16 x 1/2 x 4 shoulder 1
060 175-4366 Bolt 3/8-16 x 1/2 x 3 shoulder 2
061 175-4367 Actuator spring bracket 1
062 175-5083 Clevis pin 1
063 175-5080 Cotter pin 1
064 175-4368 Actuator 1
065 175-4331 Cotter hair pin 1
066 175-2111 Clevis pin 1
067 175-4334 Washer spherical 2
068 275-9105 Vacuum hose 1
069 175-4334 Washer spherical 1
