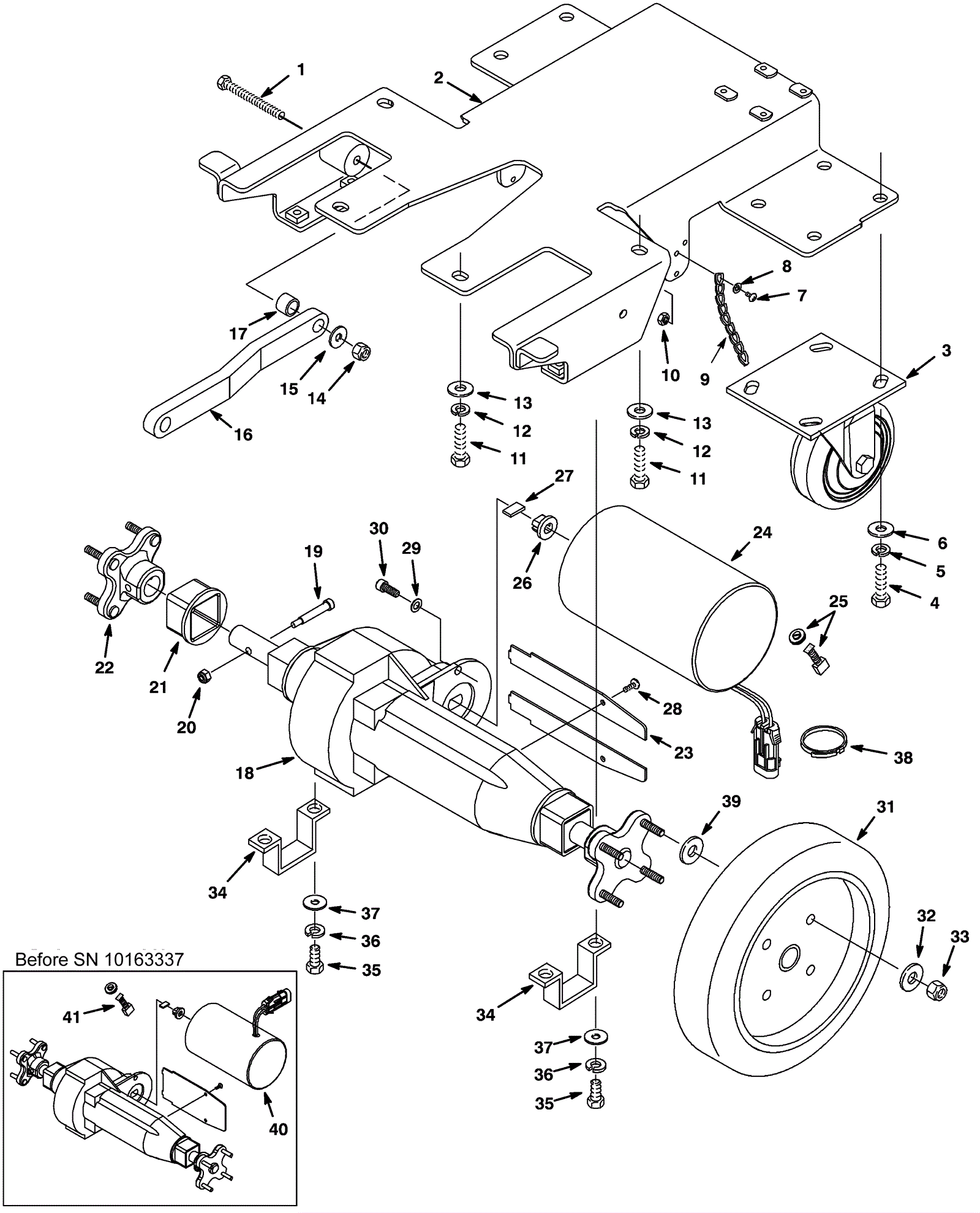

1510 Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-9079 Screw M8 x 80mm hex head stainless steel $4.41 2 ships same day
2 175-8808 Transaxle frame $287.30 1 usually ships 1-5 days
3a 175-2991 4 inch caster wheel $50.62 2 (OEM) ships same day
3b 991-2016 4 inch caster wheel $46.62 2 (NON-OEM) ships same day
4 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 8 ships same day
5 999-1053 Washer 5/16 internal star lock stainless steel $0.99 8 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
7 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel $0.99 1 ships same day
8 999-9089 Washer M4 flat stainless steel $0.99 1 ships same day
9 175-4342 Link chain $10.20 1 (8 inch) usually ships 1-5 days
10 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 1 ships same day
11 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
12 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
13 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
14 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
15 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
16 175-2102 Scrub head lifting arm $44.50 2 ships same day
17 175-4343 1 inch tube $5.70 2 ships same day
18a 175-3622 24V transaxle motor assembly $2,018.00 1 (includes 18b thru 24) usually ships 5-16 days
18b 175-3654 Transaxle body $1,903.60 1 usually ships 5-16 days
19 999-0745 Screw 10-24 x 1 1/4 socket head shoulder $2.67 2 ships same day
20 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
21 175-3660 Transaxle sleeve $9.20 2 usually ships 5-16 days
22 275-5229 Transaxle wheel hub with retainer $122.60 2 usually ships 5-16 days
23 N/A Not available Call for price 2 (transaxle cover) usually ships 3-26 days
24 175-3657 24V transaxle motor $593.70 1 (inlcudes 25 thru 30) (after SN 10163337) usually ships 5-16 days
25 175-7898 Carbon brush (pkg of 4) $59.50 1 (after SN 10163337) ships same day
26 175-3655 Transaxle coupling $8.90 1 ships same day
27 175-3656 Transaxle key $9.10 1 usually ships 5-16 days
28 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 2 ships same day
29 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
30 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 2 ships same day
31 175-4347 Wheel $113.40 2 usually ships 5-16 days
32 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
33 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
34 175-4349 Transaxle bracket $33.40 2 usually ships 5-16 days
35 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 4 ships same day
36 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
37 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
38 175-0921 Wire tie $3.60 2 usually ships 5-16 days
39 175-1097 Washer flat stainless steel $4.30 8 ships same day
40 175-4344 Transaxle motor $511.90 1 (includes 41) (before SN 10163337) usually ships 1-5 days
41 175-4345 Carbon brush (pkg of 2) $70.00 2 (before SN 10163337) usually ships 5-16 days
