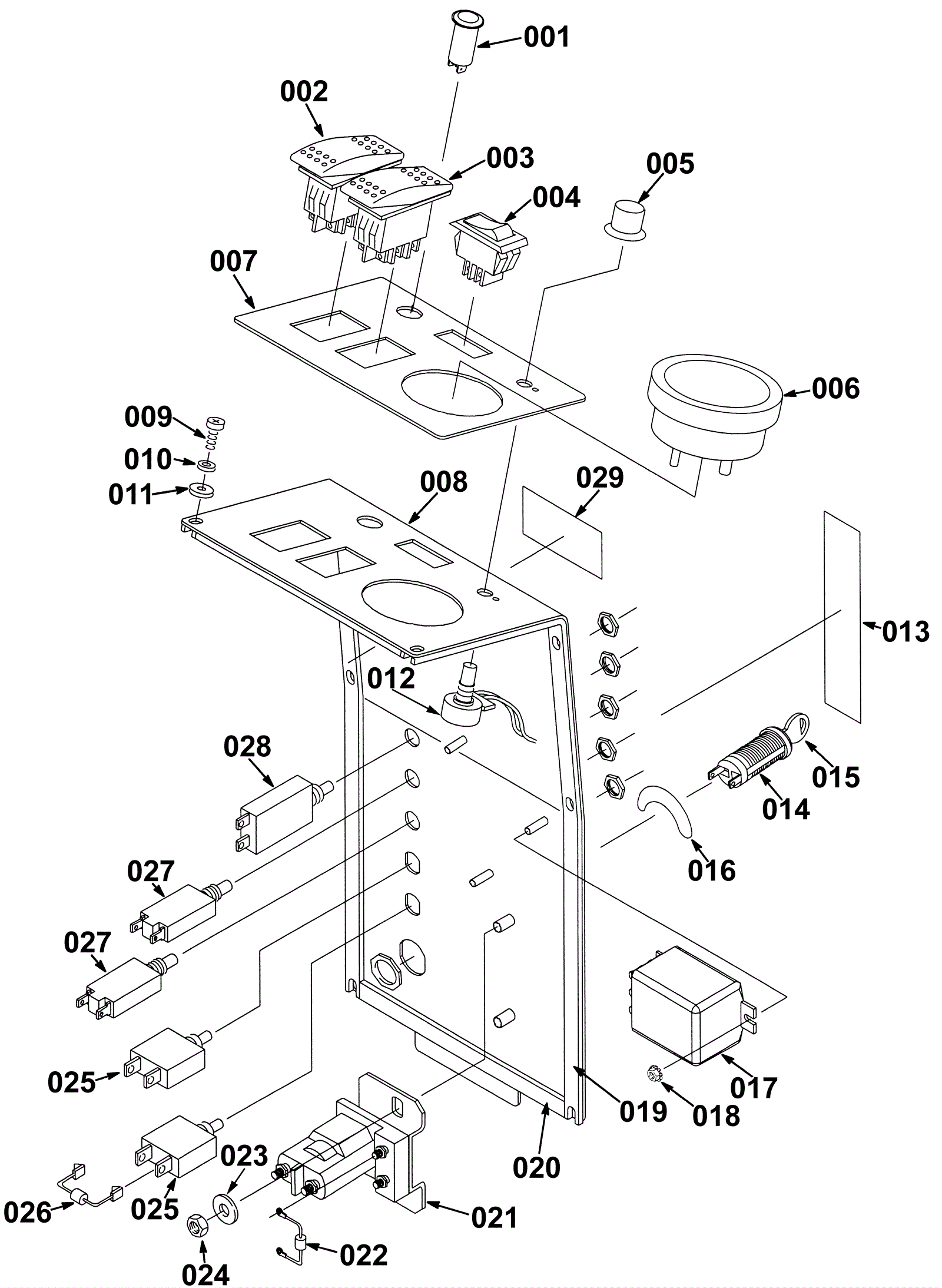

1510 Console Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-2849 Indicator light $15.07 1 usually ships 13-17 days
002 175-1847 Rocker switch $54.12 1 ships same day
003 175-4280 Console switch $37.29 1 usually ships 13-17 days
004 175-2847 Rocker switch $13.20 1 usually ships 13-17 days
005 175-4281 Potentiometer knob $15.07 1 usually ships 13-17 days
006 175-4282 Battery meter $74.14 1 usually ships 13-17 days
007 175-4283 Dash label $26.84 1 usually ships 1-5 days
008 175-4284 Switch panel $137.39 1 usually ships 1-5 days
009 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 8 ships same day
010 999-1083 Washer #8 internal star lock stainless steel $0.99 8 ships same day
011 999-9089 Washer M4 flat stainless steel $0.99 8 ships same day
012 175-4285 Potentiometer $38.83 1 usually ships 13-17 days
013 175-4286 Circuit breakers label $18.48 1 usually ships 1-5 days
014 175-4287 Key switch assembly (OBSOLETE) $143.33 1 (includes 015) usually ships 13-17 days
015 175-0185 Double sided key (steel) $16.94 1 ships same day
016 175-4288 Key switch decal $15.40 1 usually ships 1-5 days
017 175-4289 24V relay $123.09 1 usually ships 1-5 days
018 175-4290 Nut M4 x .70mm hex $3.17 2 usually ships 1-5 days
019 175-4291 Console gasket $4.49 2 usually ships 13-17 days
020 175-4292 Console gasket $19.47 2 ships same day
021 175-4293 24V relay $64.68 1 usually ships 13-17 days
022 175-2757 Diode with ring terminals (small) $12.32 1 usually ships 13-17 days
023 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
024 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
025a 175-1186 15amp circuit breaker $19.69 2 ships same day
025b 991-8539 15amp circuit breaker $7.74 2 (NON-OEM) ships same day
026 175-4295 Terminal diode $18.92 1 usually ships 13-17 days
027 175-4296 25amp resettable circuit breaker $51.70 2 usually ships 13-17 days
028 175-6061 12amp circuit breaker $46.86 1 usually ships 13-17 days
029 175-4297 Accessory tool label $18.48 1 usually ships 13-17 days
