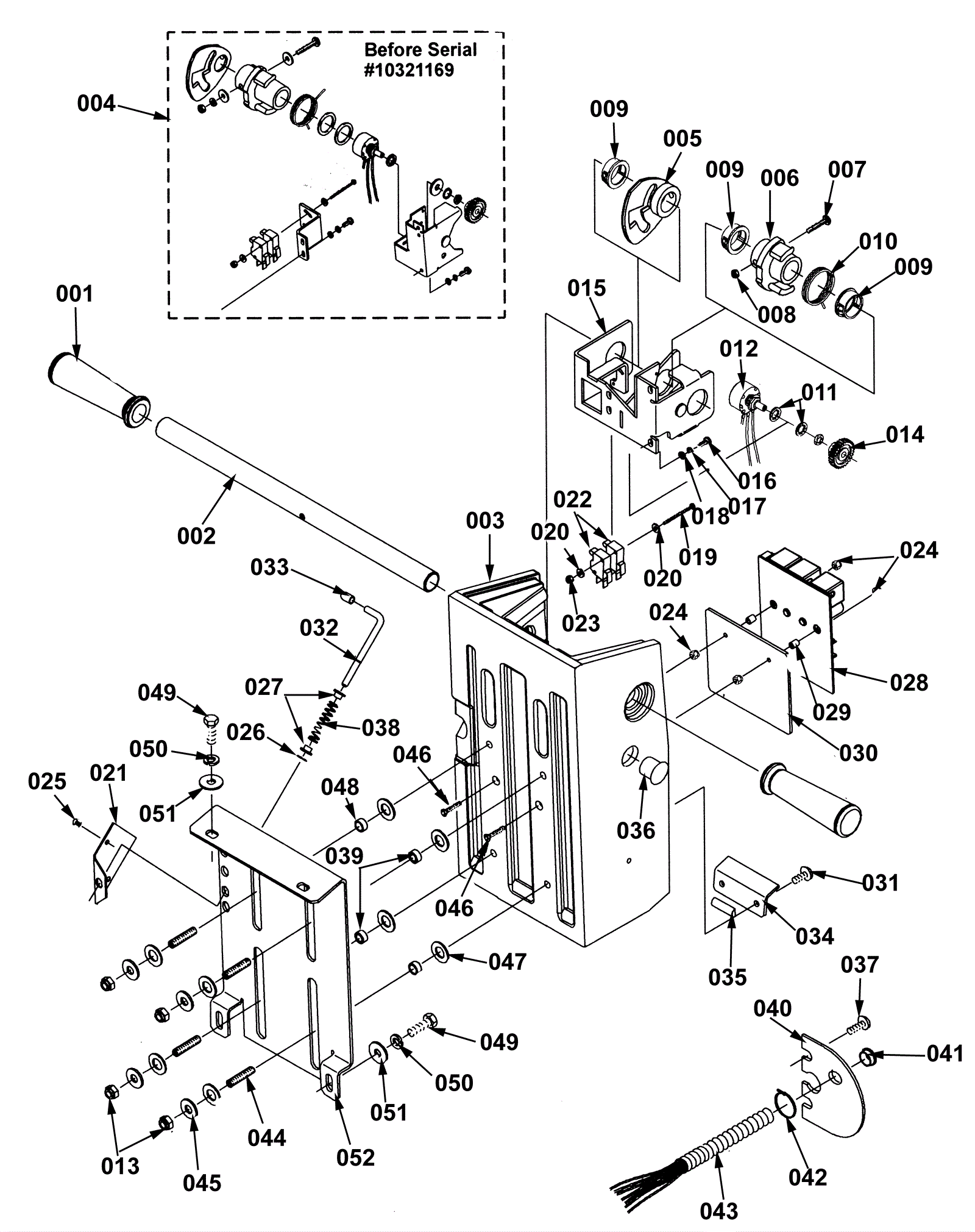

1510 Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
001a 164-0304 Handle grip Call for price 2 usually ships 1-5 days
001b 991-8571 Handle grip Call for price 2 (NON-OEM) usually ships 13-17 days
002 175-4253 Handle bar Call for price 1 usually ships 16-21 days
003 175-4263 Console (teal) (OBSOLETE) Call for price 1 usually ships 1-5 days
004 175-4259 Potentiometer console bracket Call for price 1 before SN 10321169 usually ships 16-21 days
005 275-5060 Cam switch plate Call for price 1 usually ships 1-5 days
006 275-5061 Hub assembly with gear Call for price 1 usually ships 16-21 days
007 275-5062 Screw M6-1 x 35mm hex head Call for price 1 usually ships 16-21 days
008 999-0439 Nut M6-1 hex coarse thread Call for price 1 usually ships 11-14 days
009 175-3093 Flanged bushing Call for price 3 usually ships 16-21 days
010 175-4260 Torsion spring Call for price 1 usually ships 16-21 days
011 999-0201 Washer 3/8 internal star lock Call for price 2 usually ships 11-14 days
012 175-4261 Potentiometer and wiring assembly Call for price 1 usually ships 16-21 days
013 999-0471 Nut M8-1.25 nylon insert lock zinc plated Call for price 4 usually ships 11-14 days
014 275-5064 Toothed gear Call for price 1 usually ships 16-21 days
015 275-5063 Potentiometer bracket Call for price 1 usually ships 1-5 days
016 999-1042 Screw M4-1 x 12mm pan head phillips zinc Call for price 4 usually ships 11-14 days
017 999-9089 Washer M4 flat stainless steel Call for price 4 usually ships 11-14 days
018 999-1083 Washer #8 internal star lock stainless steel Call for price 4 usually ships 8-9 days
019 175-5034 Screw M3 x 30mm Call for price 2 usually ships 1-5 days
020 999-1553 Washer M3.5 flat zinc plated Call for price 4 usually ships 11-14 days
021 175-4250 Retainer plate Call for price 1 usually ships 16-21 days
022 175-4273 Switch Call for price 2 usually ships 16-21 days
023 999-1161 Nut M3-.5 hex nylock stainless steel Call for price 2 usually ships 11-14 days
024 999-0954 Nut M4-.7 nylon insert lock stainless steel Call for price 4 usually ships 11-14 days
025 999-1519 Screw M4-.7 x 8mm flat head phillips zinc plated Call for price 2 usually ships 11-14 days
026 175-4252 Retaining ring Call for price 1 usually ships 16-21 days
027 175-4255 Flanged bushing Call for price 2 usually ships 16-21 days
028 175-3124 55amp speed control board Call for price 1 usually ships 16-21 days
029 175-4898 Spacer Call for price 2 usually ships 1-5 days
030 175-3101 Heat sink Call for price 1 usually ships 1-5 days
031 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel Call for price 2 usually ships 11-14 days
032 175-4254 Adjustment lever Call for price 1 usually ships 16-21 days
033 175-4278 Cap Call for price 1 usually ships 16-21 days
034 175-4264 Bracket Call for price 1 usually ships 1-5 days
035 175-4265 Skid strip Call for price 1 usually ships 1-5 days
036 175-1410 Dome plug Call for price 1 usually ships 16-21 days
037 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel Call for price 2 usually ships 11-14 days
038 175-4256 Compression spring Call for price 1 usually ships 16-21 days
039 175-4270 Bearing Call for price 2 usually ships 16-21 days
040 175-4277 Wiring harness retainer Call for price 1 usually ships 1-5 days
041 175-2755 Snap bushing Call for price 1 usually ships 1-5 days
042 175-4267 Nylon wire tie Call for price 2 usually ships 1-5 days
043 275-9113 24V main wire harness Call for price 1 usually ships 1-5 days
044 175-4271 Screw M8 x 35mm set Call for price 4 usually ships 16-21 days
045 999-0024 Washer 5/16 flat stainless steel Call for price 4 usually ships 11-14 days
046 999-1565 Screw M4-.7 x 35mm flat head phillips Call for price 2 usually ships 1-5 days
047 999-0566 Washer 1/2 flat nylon Call for price 8 usually ships 11-14 days
048 175-4269 Bearing Call for price 2 usually ships 16-21 days
049 999-0900 Screw M8-1.25 x 18mm hex head stainless steel Call for price 4 usually ships 11-14 days
050 999-1053 Washer 5/16 internal star lock stainless steel Call for price 4 usually ships 11-14 days
051 999-0024 Washer 5/16 flat stainless steel Call for price 4 usually ships 11-14 days
052 175-4272 Sliding plate Call for price 1 usually ships 1-5 days
