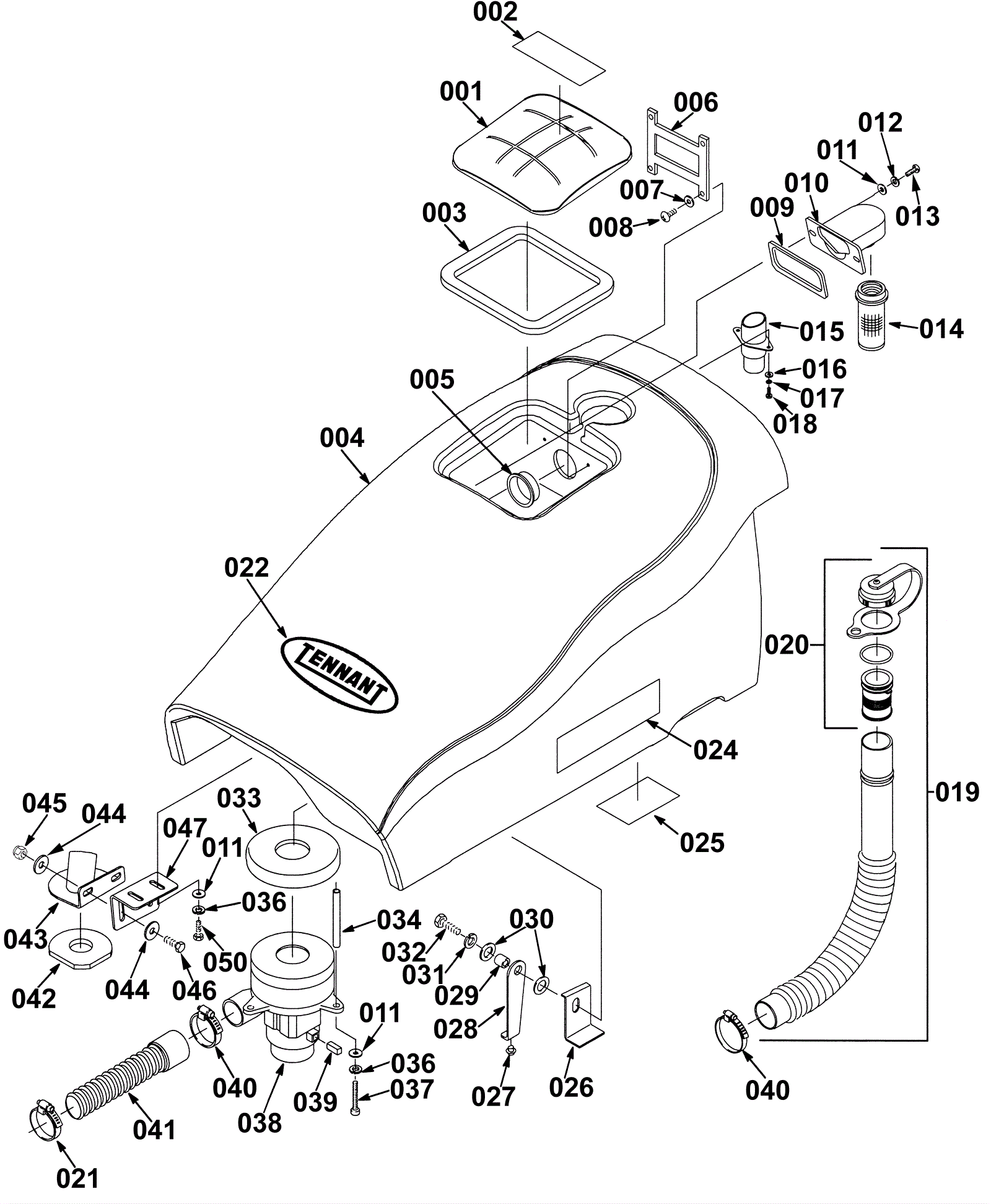

1510 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4224 Tank lid and decal assembly $164.30 1 includes 002 ships same day
002 175-2868 Warning decal $10.90 1 ships same day
003 175-4226 Tank lid gasket $33.10 1 ships same day
004 175-4227 Recovery tank (teal) $880.60 1 usually ships 1-5 days
005 175-4228 2 inch plug $3.00 1 usually ships 5-16 days
006 175-1803 Tank lid hinge $10.90 1 ships same day
007 175-5797 Washer 1/6 flat zinc $3.00 4 ships same day
008 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 4 ships same day
009 175-4231 Float mount gasket $4.80 1 ships same day
010 175-4232 Float cage mount $18.50 1 ships same day
011 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
012 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
013 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 2 ships same day
014a 175-1804 Shut-off float $68.80 1 usually ships 16-25 days
014b 991-3108 Shut off float $28.15 1 (NON-OEM) ships same day
015 175-4233 Hose adaptor $26.90 1 ships same day
016 175-4234 Washer M5.3 flat $3.00 2 usually ships 5-16 days
017 999-9132 Washer M5 split lock stainless steel $0.99 2 ships same day
018 175-3234 Screw M5-.8 x 10mm pan head $2.90 2 usually ships 5-16 days
019a 175-1153 Drain hose assembly $78.80 1 (OEM) ships same day
019b 991-5126 Drain hose assembly $27.35 (NON-OEM) ships same day
020a 175-4214 Drain plug assembly $18.10 1 ships same day
020b 991-3028 Drain plug assembly $10.74 1 ships same day
021 997-2007 Hose clamp $2.07 2 ships same day
022 175-4237 Tennant decal $16.40 1 usually ships 5-16 days
024 175-4238 Side label $9.70 2 usually ships 5-16 days
025 175-4239 Battery replacement decal $22.90 1 usually ships 1-5 days
026 175-4236 Stop bracket $35.10 1 usually ships 1-5 days
027 175-7780 Rubber bumper $3.10 1 usually ships 5-16 days
028 175-4241 Tank support $31.80 1 usually ships 1-5 days
029 175-2673 Bushing $2.80 1 usually ships 5-16 days
030 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
031 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 ships same day
032 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 1 ships same day
033 175-2657 Vacuum motor gasket $4.80 1 usually ships 5-16 days
034 175-4243 Spacer $6.00 3 usually ships 5-16 days
036 999-0632 Washer 1/4 split lock stainless steel $0.99 5 ships same day
037 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish $1.91 3 ships same day
038a 175-4245 24V 3 stage vacuum motor $386.20 1 OEM usually ships 1-5 days
038b 991-1210-D 24V 3 stage vacuum motor tangential with Delphi plug $154.00 1 (NON-OEM) usually ships 3-26 days
039 175-2658 Carbon brush (pkg of 2) $32.30 1 ships same day
040 175-2057 Hose clamp $5.10 2 usually ships 1-5 days
041 175-4246 Vacuum hose with one cuff $26.30 1 usually ships 5-16 days
042 175-2028 Gasket $8.10 1 usually ships 5-16 days
043 175-4247 Bracket $79.90 1 usually ships 1-5 days
045 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
046 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
047 175-4249 Vacuum mounting bracket $49.20 1 usually ships 1-5 days
050 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
