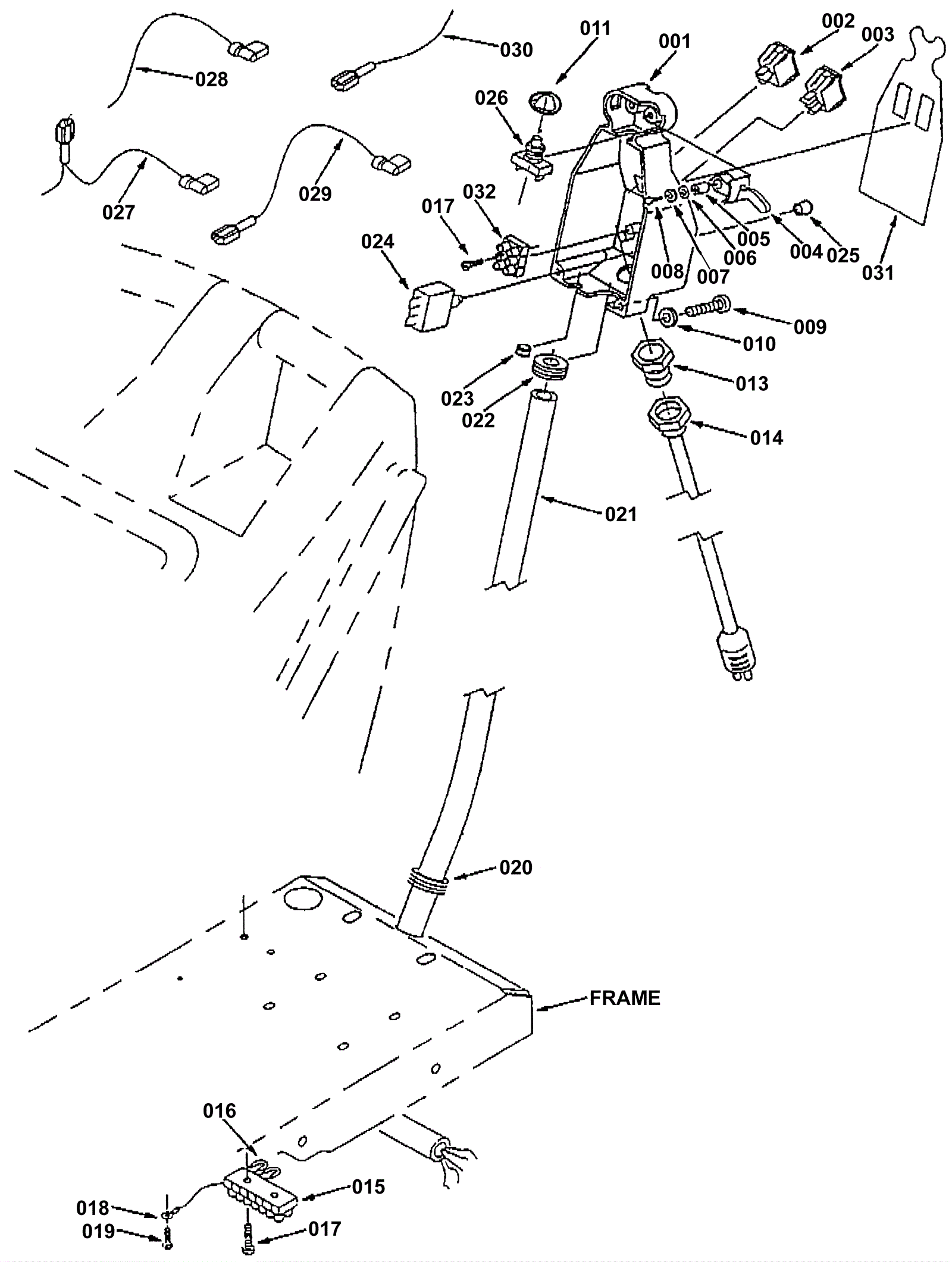

EXTRAVAC E-17 Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-6381 Console cover (OBSOLETE) $26.18 1 usually ships 1-5 days
002 N/A Not available Call for price 1 (rocker switch) usually ships 3-26 days
003 175-0136 On/off rocker switch $11.11 1 ships same day
004 175-6383 Trigger arm (OBSOLETE) $7.37 2 usually ships 5-16 days
005 175-6384 Trigger spacer $3.63 2 usually ships 5-16 days
006 999-1115 Washer M4 flat zinc plated $0.99 2 ships same day
007 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
008 999-0805 Bolt M3-.5 x 16mm hex head $0.99 2 ships same day
009 999-1085 Screw M5-.8 x 30mm pan head phillips zinc plated $0.99 2 ships same day
010 175-6323 Washer lock (OBSOLETE) Call for price 2 usually ships 1-5 days
011 175-6386 Washer 1/2 flat spring disc zinc plated $4.95 1 usually ships 5-16 days
013 175-6387 Pigtail strain relief (OBSOLETE) Call for price 1 usually ships 1-5 days
014 175-6388 Cord set (OBSOLETE) $66.11 1 usually ships 1-5 days
015 175-6389 Terminal block and pin $5.50 1 usually ships 1-5 days
016 175-6390 Jumper wire (OBSOLETE) $2.64 2 usually ships 1-5 days
017 175-6391 Screw 6 pan head self-tapping type 3 (OBSOLETE) $1.45 4 usually ships 1-5 days
018 175-6392 Ground wire assembly (OBSOLETE) $1.58 1 usually ships 1-5 days
019 175-6393 Screw 10 - 3/8 slotted zince plated hex head type f (OBS) $0.99 1 usually ships 1-5 days
020 175-6394 Motor frame strain relief (OBSOLETE) Call for price 1 usually ships 1-5 days
021a 175-6395 5 wire harness (OBSOLETE) $5.28 1 usually ships 1-5 days
021b 175-6396 5 wire harness (OBSOLETE) Call for price 1 usually ships 1-5 days
022 175-6311 Grommet (OBSOLETE) $2.24 1 usually ships 1-5 days
023 175-6397 Grommet (OBSOLETE) $1.72 1 usually ships 1-5 days
024 175-6398 Circuit breaker 3 amp (OBSOLETE) $29.70 1 usually ships 1-5 days
025 175-6399 Button plug (OBSOLETE) Call for price 1 usually ships 1-5 days
026 175-6400 Push button switch kit $31.13 1 ships same day
028 175-6402 Accessory switch wire assembly (OBSOLETE) $2.50 1 usually ships 1-5 days
029 175-6403 Vacuum switch wire assembly (OBSOLETE) $5.28 1 usually ships 1-5 days
030 175-6404 Vacuum motor wire assembly (OBSOLETE) $2.90 1 usually ships 1-5 days
031a 175-6405 Console decal (OBSOLETE) $9.68 1 usually ships 1-5 days
031b 175-6406 Console decal (OBSOLETE) Call for price 1 usually ships 1-5 days
032 175-0027 25amp terminal strip $5.83 1 usually ships 5-16 days
