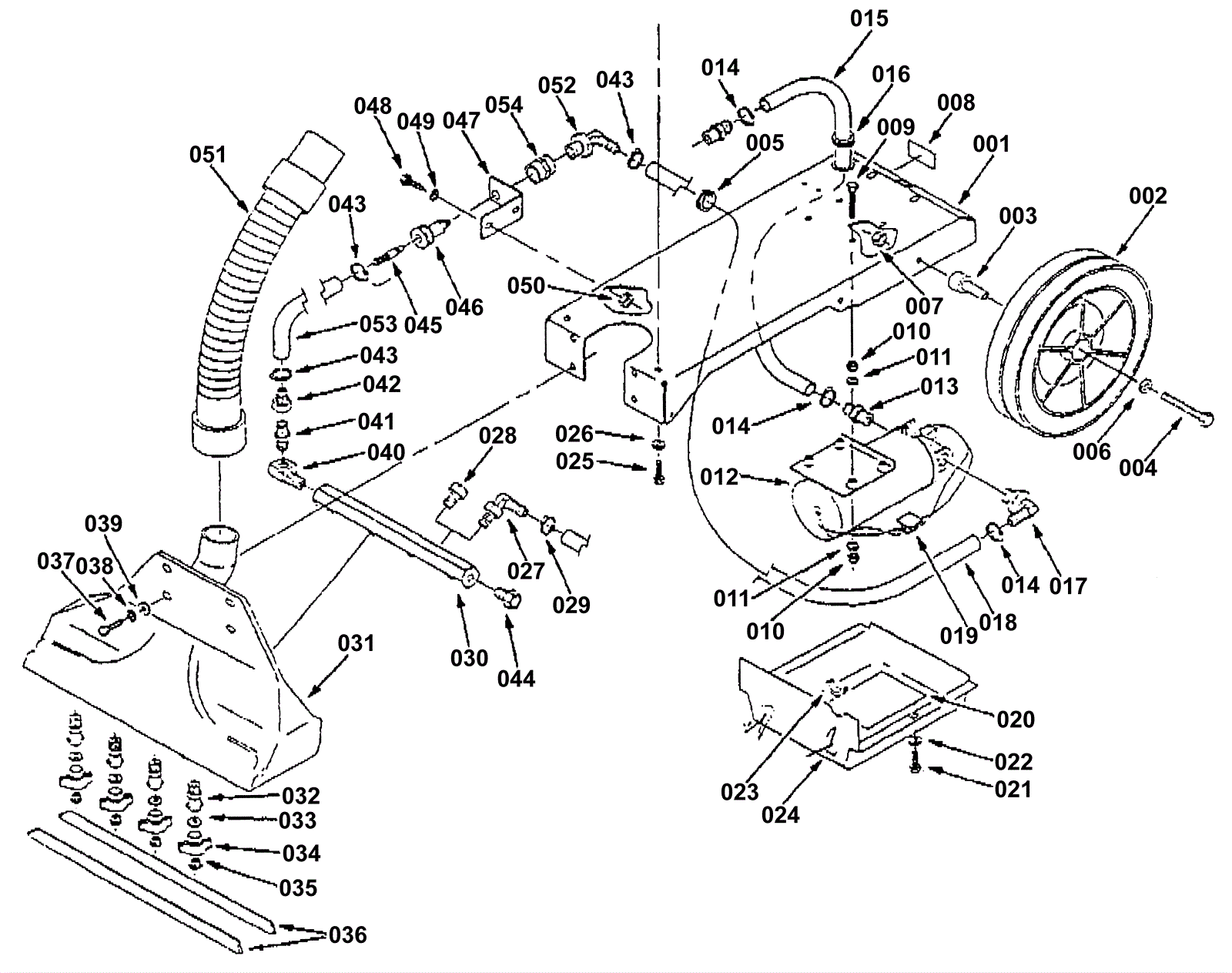

EXTRAVAC E-17 Main Frame and Water Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-6307 Frame (OBSOLETE) $213.04 1 usually ships 1-5 days
002 175-6308 Wheels 10 diameter (OBSOLETE) $29.34 2 usually ships 1-5 days
003 175-6309 Axle spacer (OBSOLETE) $18.15 2 usually ships 1-5 days
004 999-9079 Screw M8 x 80mm hex head stainless steel $4.41 2 ships same day
005 175-6311 Grommet (OBSOLETE) $2.24 1 usually ships 1-5 days
006 175-6312 Washer flat (OBSOLETE) $1.58 4 usually ships 1-5 days
007 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
008 175-6313 Data plate decal (OBSOLETE) Call for price 1 usually ships 1-5 days
009 175-6314 Screw hex head (OBSOLETE) $0.99 4 usually ships 1-5 days
010 175-6315 Nut hex lock (OBSOLETE) $0.99 8 usually ships 1-5 days
011 999-9100 Washer M5 flat stainless steel $5.83 8 ships same day
012 175-6299 Pump motor assembly (OBSOLETE) $356.51 1 usually ships 1-5 days
013 175-6316 Hose adapter 3/8 x 3/8 (OBSOLETE) Call for price 1 usually ships 1-5 days
014 175-6317 Hose clamp (OBSOLETE) $15.84 3 usually ships 1-5 days
015 175-6318 Hose 3/8 x 8 inch $23.65 1 usually ships 5-16 days
016 175-6319 Grommet (OBSOLETE) $2.64 1 usually ships 1-5 days
017 175-6320 Elbow fitting (OBSOLETE) $15.95 1 usually ships 1-5 days
018 175-6321 Hose (OBSOLETE) $9.46 1 usually ships 1-5 days
019 175-0411 Cable clip $3.30 1 usually ships 1-5 days
020 175-6322 Wiring decal (OBSOLETE) Call for price 1 usually ships 1-5 days
021 999-0569 Screw 10 x 1/2 pan head phillips sheet metal $0.99 2 ships same day
022 175-6323 Washer lock (OBSOLETE) Call for price 2 usually ships 1-5 days
023 175-6324 Grommet (OBSOLETE) $2.24 1 usually ships 1-5 days
024 175-6325 Pump cover (OBSOLETE) $28.83 1 usually ships 1-5 days
025 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 4 ships same day
026 175-0399 Washer 8mm plain (OBSOLETE) $0.99 4 usually ships 1-5 days
027 175-2844 90 degree elbow fitting $4.95 1 ships same day
028 175-6326 Hex plug pipe (OBSOLETE) $1.98 1 usually ships 1-5 days
030 175-6328 Manifold (OBSOLETE) $96.14 1 usually ships 1-5 days
031 175-6329 Water pickup shoe (OBSOLETE) $174.90 1 usually ships 1-5 days
032 175-4192 Quick jet body $13.97 4 usually ships 5-16 days
033 175-4193 Quick jet gasket $3.30 4 ships same day
034 175-4194 Quick jet cap (green) $6.49 4 ships same day
035a 175-4195 Brass spray nozzle 11015 (E-17P and E-179PR only) (OBSOLETE) $11.66 4 usually ships 5-16 days
035b 175-6330 Spray nozzle $19.14 4 ships same day
036 175-6331 Vacuum shoe glide (OBSOLETE) $13.20 2 usually ships 1-5 days
037 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 4 ships same day
038 175-6332 Washer lock (OBSOLETE) $0.99 4 usually ships 1-5 days
039 175-6333 Washer 8.4mm 17 1.6 flat stainless steel (OBSOLETE) $0.99 4 usually ships 1-5 days
040 175-6334 Street elbow (OBSOLETE) Call for price 1 usually ships 1-5 days
041 N/A Not available Call for price 1 (Check valve) usually ships 3-26 days
042 175-6336 Hose fitting (OBSOLETE) $5.72 1 usually ships 1-5 days
043 175-6337 Hose clamp $2.77 3 usually ships 1-5 days
044 175-6326 Hex plug pipe (OBSOLETE) $1.98 1 usually ships 1-5 days
045 175-6338 Quick connect fitting (OBSOLETE) $15.73 1 usually ships 1-5 days
046 175-9723 Brass female quick connect fitting $61.16 1 usually ships 1-5 days
047 175-6340 Coupling mount angle (OBSOLETE) $12.76 1 usually ships 1-5 days
048 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
049 N/A Not available Call for price 2 usually ships 3-26 days
050 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
051 175-6341 Vacuum hose (OBSOLETE) $39.16 1 usually ships 1-5 days
052 175-2844 90 degree elbow fitting $4.95 1 ships same day
053 175-6342 Hose (OBSOLETE) $9.24 1 usually ships 1-5 days
054 175-6343 Anchor connector (OBSOLETE) Call for price 1 usually ships 1-5 days
