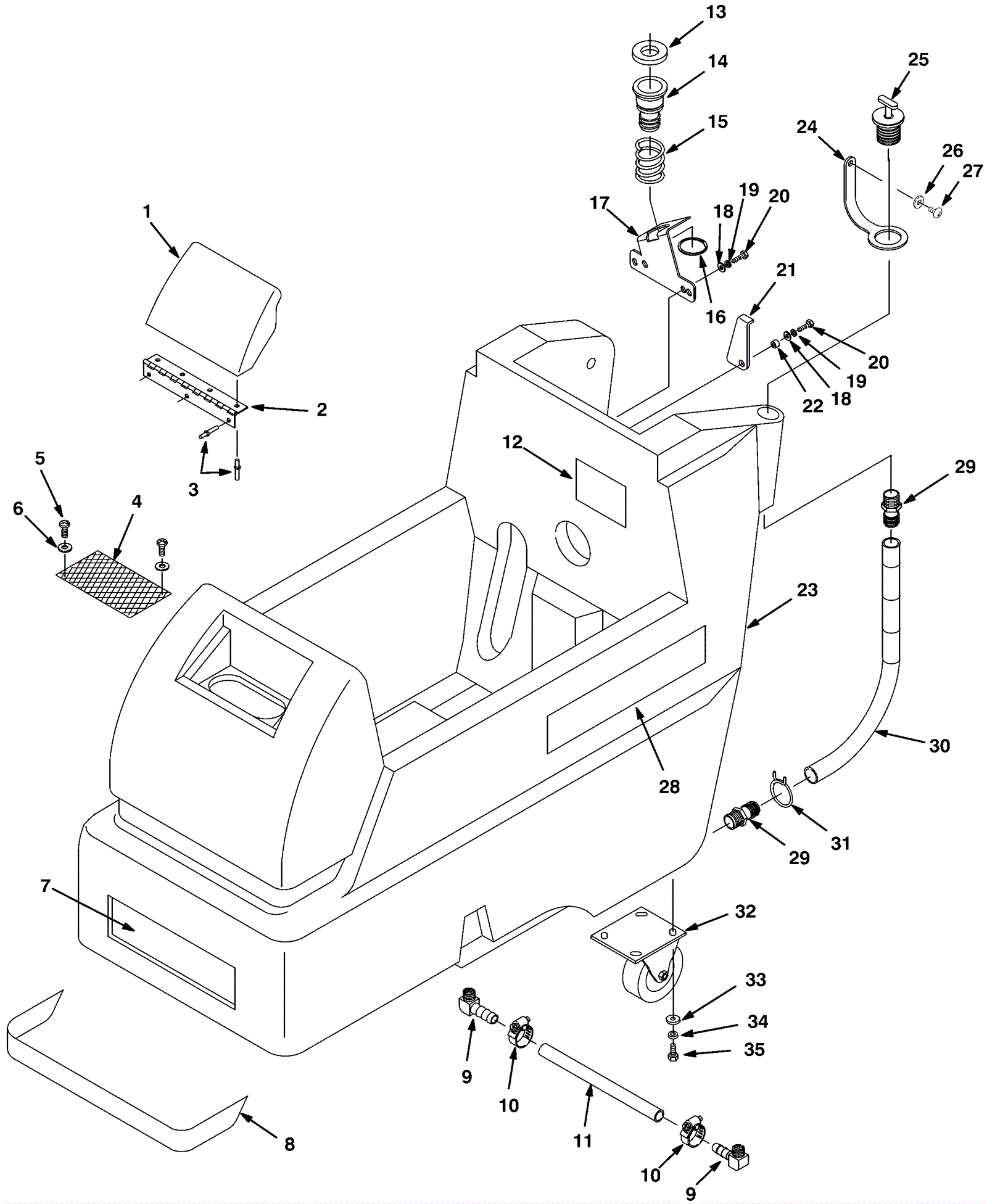

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-6638
|
Teal solution tank cover |
1 |
|
|
2 |
175-3633
|
Hinge |
1 |
|
|
4 |
175-2666
|
Screen filter |
1 |
|
|
5 |
999-0434
|
Screw 6 x 3/8 pan head phillips |
2 |
|
|
6 |
999-1158
|
Washer #6 flat stainless steel |
2 |
|
|
7 |
175-4891
|
Tennant decal |
1 |
|
|
8 |
175-4890
|
Recess decal (OBSOLETE) |
1 |
|
|
9 |
175-2997
|
Elbow |
2 |
|
|
10 |
175-6081
|
Hose clamp |
2 |
|
|
11 |
175-4889
|
Hose 3/8 x 17 1/2 inch |
1 |
|
|
12 |
175-2982
|
Battery recharge decal |
1 |
|
|
13 |
675-9895
|
Vacuum motor gasket |
1 |
|
|
14 |
175-3635
|
Transition tube |
1 |
|
|
15 |
175-4353
|
Compression spring |
1 |
|
|
16 |
175-4355
|
Retaining ring |
1 |
|
|
17 |
175-3636
|
Vacuum tube bracket |
1 |
|
|
18 |
999-0024
|
Washer 5/16 flat stainless steel |
3 |
|
|
19 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
3 |
|
|
20 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
3 |
|
|
21 |
175-2672
|
Recovery tank support |
1 |
|
|
22 |
175-2673
|
Bushing |
1 |
|
|
23 |
175-4888
|
Solution tank teal (OBSOLETE) |
1 |
|
|
24 |
175-2984
|
Plug strap (OBSOLETE) |
1 |
|
|
25 |
175-2653
|
1 1/2 inch expansion plug |
1 |
|
|
26 |
999-0393
|
Washer 3/16 flat aluminum |
1 |
|
|
27 |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
1 |
|
|
28 |
175-7297
|
1500 Decal (OBSOLETE) |
2 |
|
|
29 |
175-2676
|
Barbed fitting |
2 |
|
|
30 |
175-3637
|
Drain hose with level indicator |
1 |
|
|
31 |
175-2678
|
Hose clamp |
1 |
|
|
32a |
175-2991
|
4 inch caster wheel |
2 |
|
|
32b |
991-2016
|
4 inch caster wheel |
2 |
|
|
33 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
|
34 |
999-1081
|
Washer M10 split lock stainless steel |
8 |
|
|
35 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
8 |
|
|
