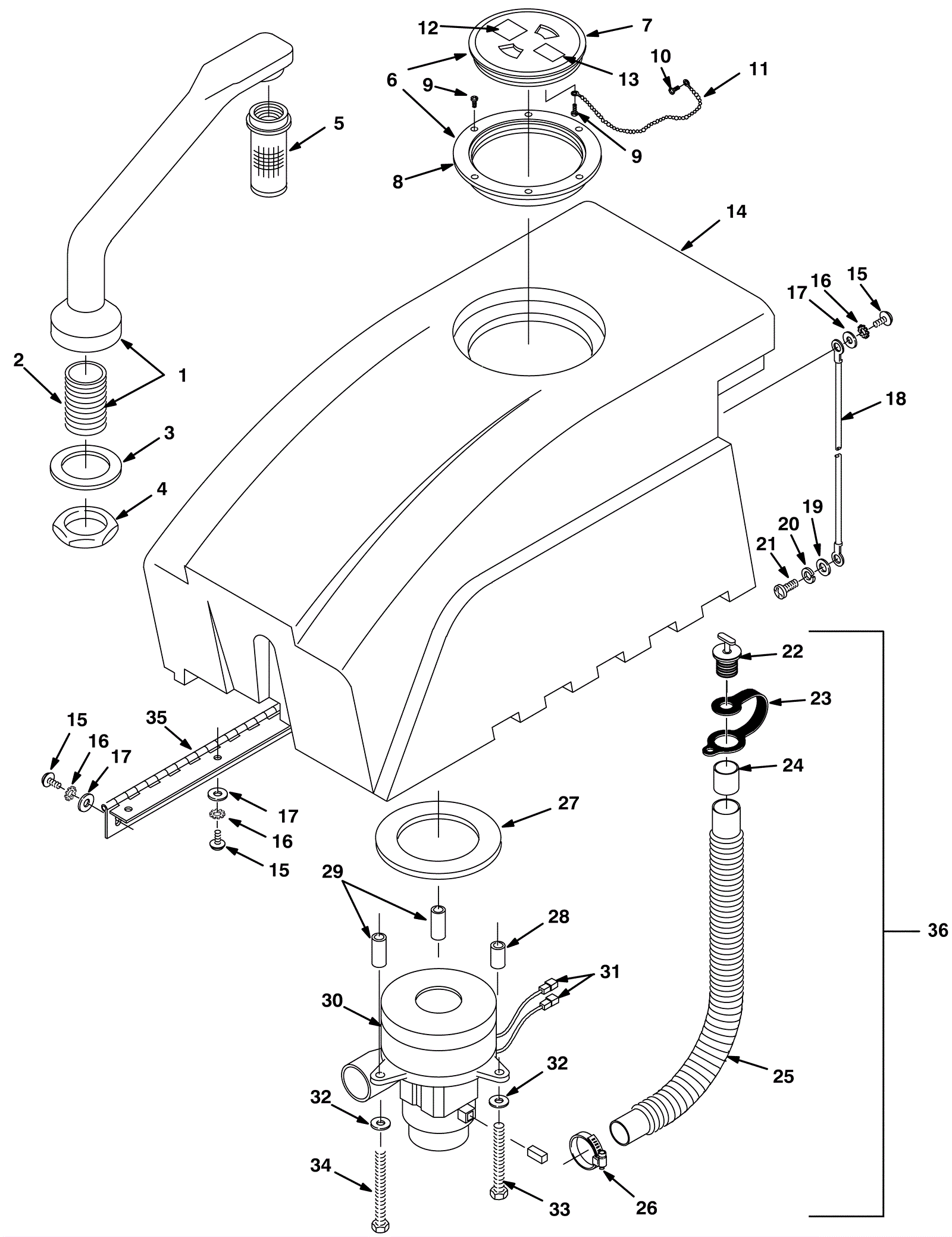

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 175-2998 Standpipe with nipple assembly 1 (includes item 2)
2 175-2639 1 1/2 inch nipple fitting 1
3 175-2640 Gasket 1
4 175-2907 Nut 1 1/2 flanged hex 1
5a 675-9887 Shut-off float 1 (OEM)
5b 991-5136 Shut-off float 1 (NON-OEM)
6 164-0202 Tank lid assembly 1 (Includes 7 and 8)
7a 164-0044 Tank lid (clear) 1
7b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
8 164-0205 Tank lid ring (clear) 1
9 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal 7
10 999-0434 Screw 6 x 3/8 pan head phillips 1
11 164-0204 Recovery tank lid chain 1
12 275-2370 Read manual decal 1
13 175-6107 Always drain decal 1
14 175-4879 Recovery tank teal 1
15 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 12
16 999-1024 Washer 1/4 external tooth lock stainless steel 12
17 999-0016 Washer 1/4 flat plain finish 12
18 175-2651 Support cable 1
19 999-0024 Washer 5/16 flat stainless steel 1
20 999-0553 Washer 5/16 medium split lock stainless steel 1
21 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 1
22 175-2653 1 1/2 inch expansion plug 1
23 175-2654 Drain hose strap 1
24 175-2655 Drain hose sleeve 1
25 175-2656 Drain hose 1
26 175-2057 Hose clamp 1
27 175-1315 Vacuum motor gasket 1
28 175-1362 Nylon spacer 1
29 175-7295 Spacer (OBSOLETE) 2
30a 175-7293 24V 2 stage vacuum motor tangential 1
30b 175-7294 Carbon brush (pkg of 2) 1
30c 991-1203 24V 2 stage vacuum motor tangential 1 (NON-OEM)
31 175-3032 Positive terminal ring 2
32 999-0016 Washer 1/4 flat plain finish 3
33 999-0779 Screw M6-1 x 25mm hex head plain finish 1
34 175-3400 Bolt M6-1 x 55mm hex head stainless steel 2
35 175-3001 Recovery tank hinge 1
36 175-4671 Drain hose assembly (OBSOLETE) 1 (Includes 22-26)
