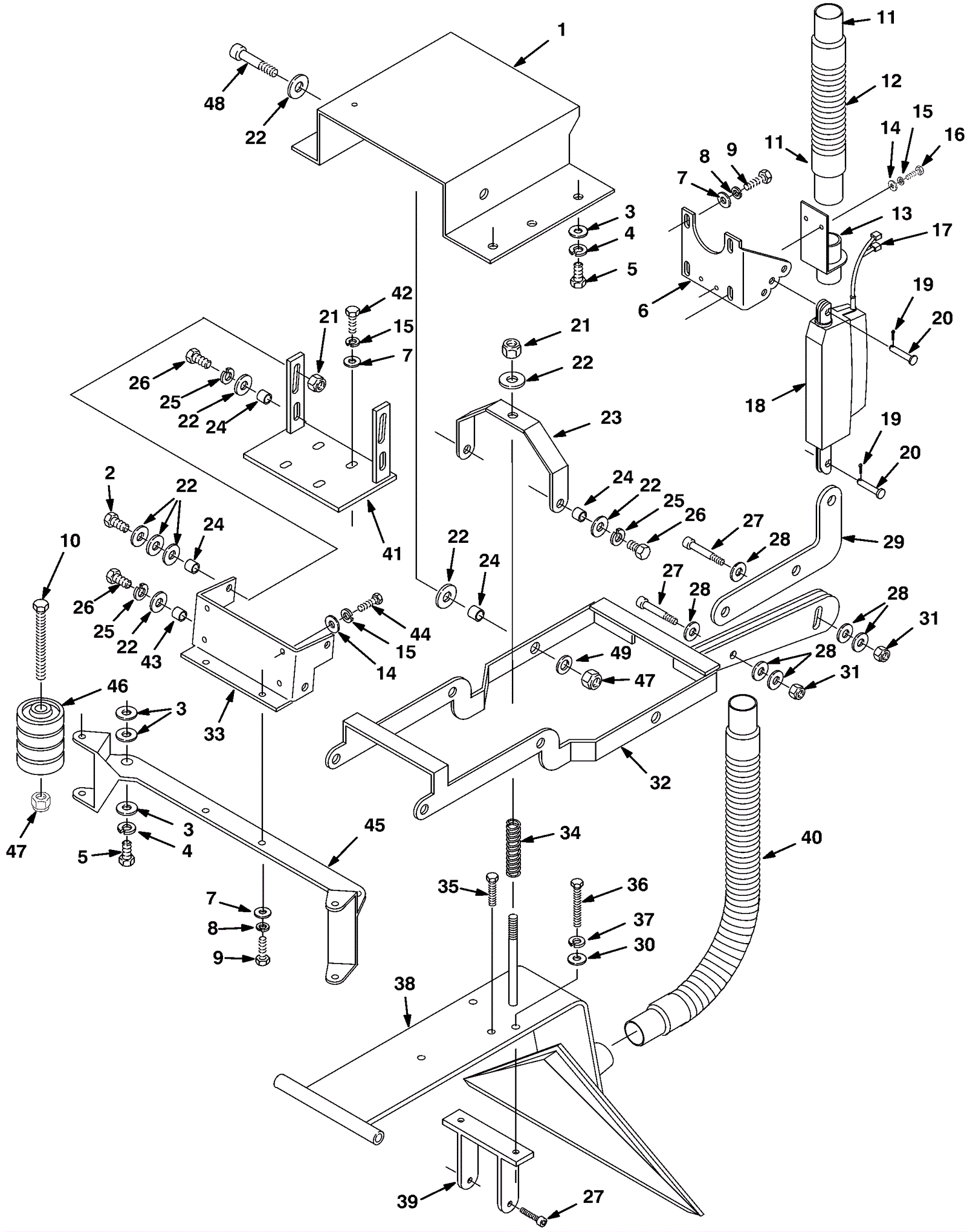

Lift Assembly

#PartDescription ReqNotesAvailability
1 175-4842 Base plate 1
2 999-0687 Bolt 1/2-13 x 1 1/4 hex head stainless steel 2
3 999-0617 Washer 3/8 x 1 flat stainless steel 8
4 999-1081 Washer M10 split lock stainless steel 4
5 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel 4
6 275-4594 Actuator bracket 1
7 999-0024 Washer 5/16 flat stainless steel 10
8 999-0553 Washer 5/16 medium split lock stainless steel 8
9 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
10 175-4843 Screw 3/8-16 x 4 3/4 hex head 2
11 175-0228 Hose cuff (black) 1
12 175-4844 Vacuum hose 1 1/2 x 15 inch with cuff 1
13 175-4845 Vacuum hose bracket 1
14 999-0016 Washer 1/4 flat plain finish 2
15 999-0632 Washer 1/4 split lock stainless steel 10
17 175-2603 Female disconnect terminal (red) 2
18 175-3010 Actuator 1
19 175-3012 Clevis pin 2
20 175-5080 Cotter pin 2
21 999-1208 Nut 1/2-13 nylon insert lock stainless steel 3
22 999-0559 Washer 1/2 x 1/4 flat stainless steel 17
23 175-4846 Spring bracket 1
24 175-3023 Bushing 8
25 999-0126 Washer 1/2 split lock 6
26 999-1223 Screw M12-1.75 x 25mm hex head stainless steel 6
27 175-6156 Screw 3/8 x 3/4 shoulder 4
28 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 6
29 175-4847 Actuator lifting plate 1
30 999-0024 Washer 5/16 flat stainless steel 2
31 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
32 175-4848 Lifting bracket 1
33 175-4849 Carpet tool mounting bracket 1
34 175-4850 Spring 1
35 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
36 175-0955 Screw 5/16-18 x 2 1/2 2
37 999-0553 Washer 5/16 medium split lock stainless steel 4
38 175-4851 22 inch carpet tool 1
39 175-4852 Leveling bracket 1
40 175-3067 Vacuum hose 1 1/2 x 30 inch with cuffs 1
41 175-4853 Mounting bracket 1
42 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
43 175-2743 Sleeved bushing 2
44 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
45 175-4854 Bumper wheel bracket 1
46 991-2013 Wheel 8
47 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 4
48 175-3648 Shoulder bolt (Tennant industrial) 2
49 999-0032 Washer 3/8 USS flat plain finish 2
