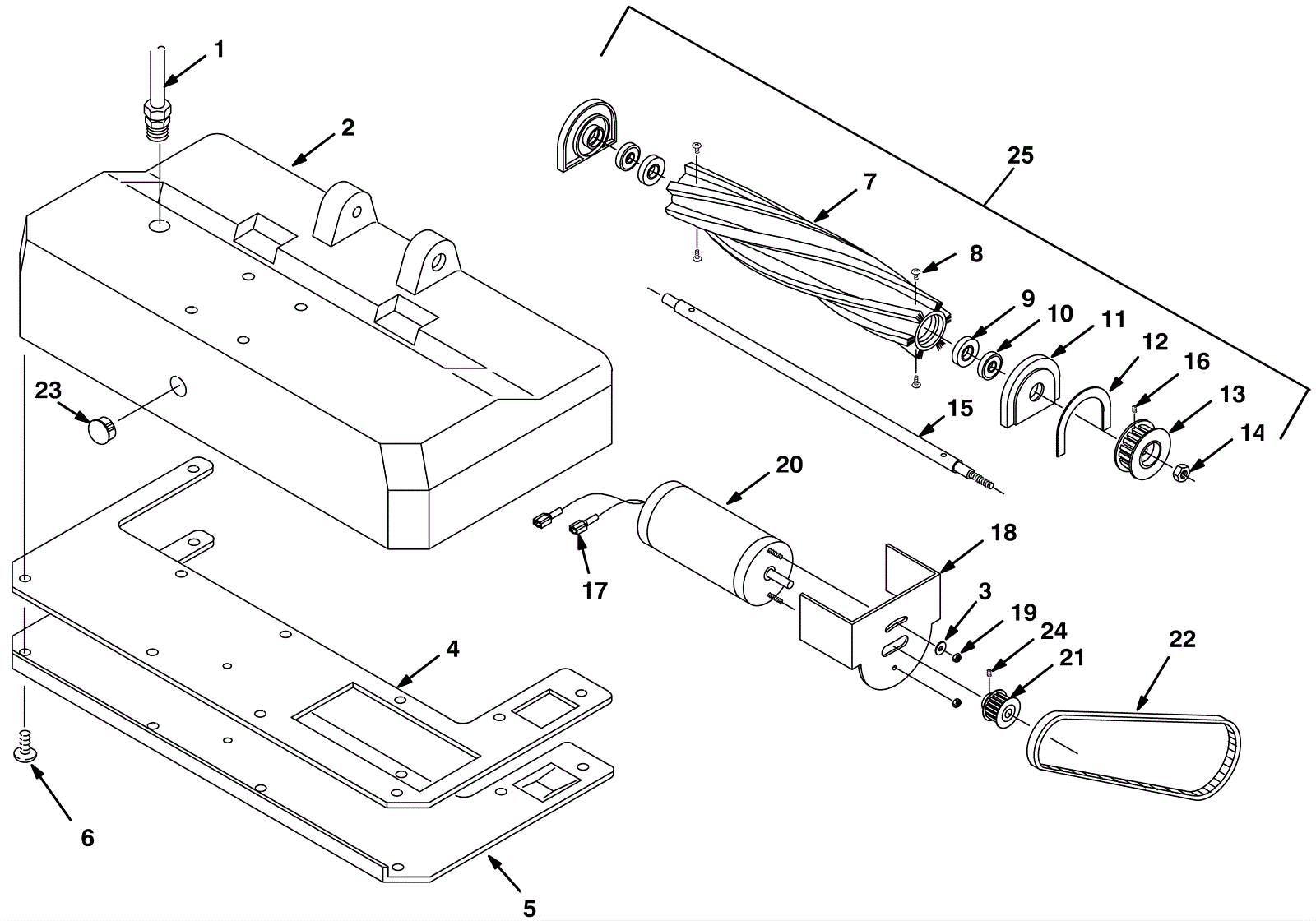

Brush Base Assembly

#PartDescription ReqNotesAvailability
1 175-4816 Interconnect cord 1
2 175-4316 22 inch base 1
3 999-0803 Washer M5 flat plain finish 1
4 175-4317 Base plate gasket 1
5 175-4818 Base plate 1
6 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 11
7 175-4319 Brush - CYLINDRICAL 1
8 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
9 775-0402 Brush bearing seal 2
10a 175-0069 Brush bearing 2 (OEM)
10b 991-5125 Brush bearing 2 (NON-OEM)
11 175-6133 Bearing block 2
12 175-6143 Bearing block gasket 1
13 175-4321 Brush pulley 1
14 999-0430 Nut 5/16-18 hex jam plain finish 1
15 175-4322 Brush shaft 1
16 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 1
17 175-0923 Male terminal 2
18 175-4324 Brush motor bracket 1
19 999-0239 Nut 10-32 k-lock zinc plated 2
20 175-4325 Electric brush motor 1
21 175-4326 Motor pulley 1
22 175-4327 Timing belt 1
23 275-7479 PLUGBTN, BLACKNYL (Tennant Industrial) 1
24 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 1
25 175-4023 Brush assembly with bearings - CYLINDRICAL 1 (Includes 7-16)
