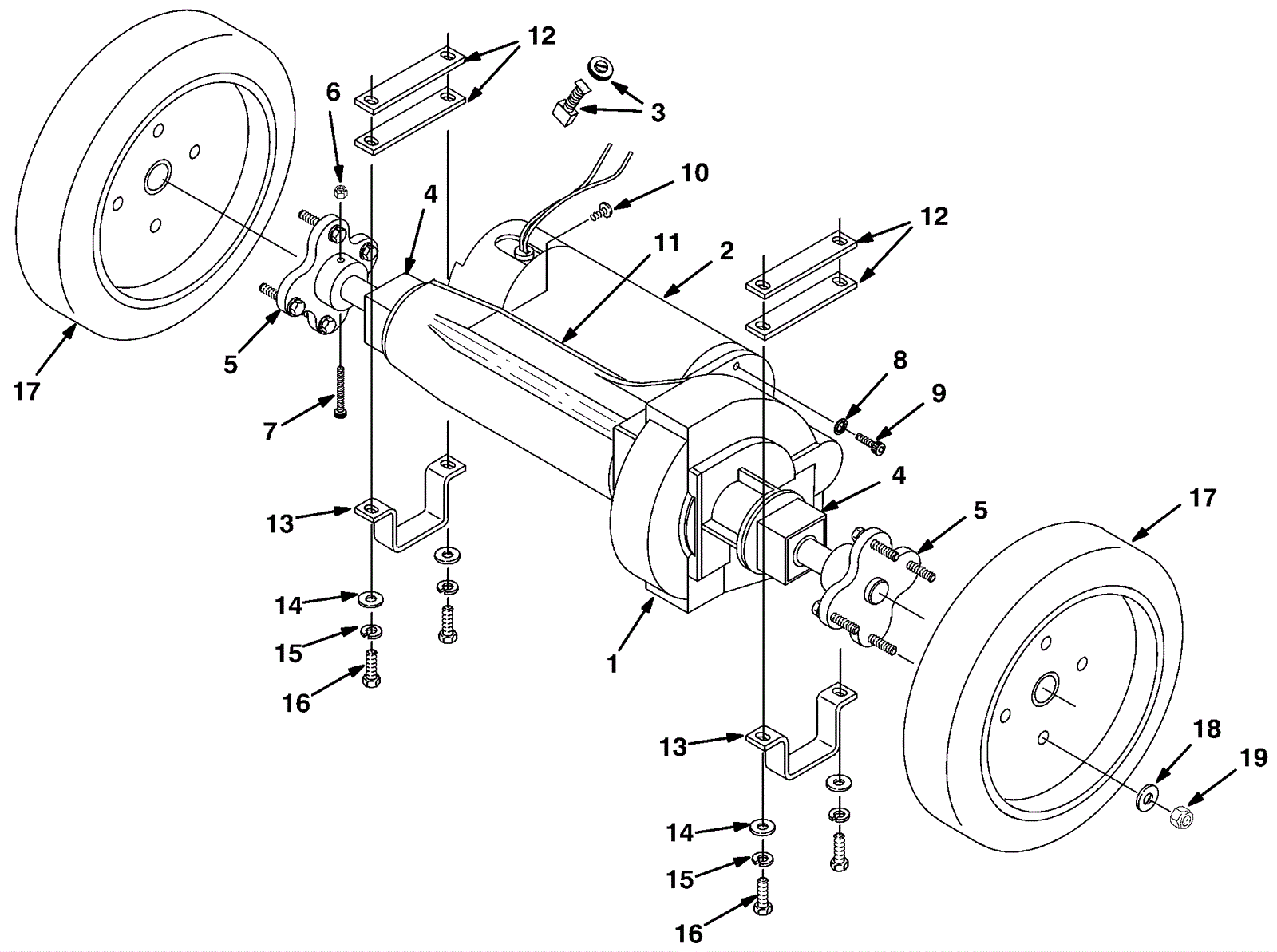

1500 Drive Assembly

#PartDescription ReqNotesAvailability
1a 175-3622 24V transaxle motor assembly 1 (Includes 1b-11) usually ships 16-21 days
1b 175-3654 Transaxle body 1 usually ships 16-21 days
1c 175-3655 Transaxle coupling 1 usually ships 16-21 days
1d 175-3656 Transaxle key 1 usually ships 16-21 days
2 175-3657 24V transaxle motor 1 usually ships 16-21 days
3 175-4345 Carbon brush (pkg of 2) 2 usually ships 16-21 days
4 175-3660 Transaxle sleeve 2 usually ships 16-21 days
5 275-5229 Transaxle wheel hub with retainer 2 usually ships 16-21 days
6 999-0442 Nut 10-24 nylon insert lock stainless steel 2 usually ships 11-14 days
7 999-0745 Screw 10-24 x 1 1/4 socket head shoulder 2 usually ships 11-14 days
8 999-0238 Washer 1/4 internal star lock zinc plated 2 usually ships 11-14 days
9 175-3663 Screw 1/4-20 x 5/8 socket 2 usually ships 1-5 days
10 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc 2 usually ships 11-14 days
11 175-3665 Transaxle cover (OBSOLETE) 1 usually ships 1-5 days
12 175-3666 Axle spacer 4 usually ships 1-5 days
13 175-3667 Transaxle MTG bracket 2 usually ships 16-21 days
14 999-0617 Washer 3/8 x 1 flat stainless steel 4 usually ships 11-14 days
15 999-1081 Washer M10 split lock stainless steel 4 usually ships 11-14 days
16 175-3019 Screw M10 x 35mm 4 usually ships 16-21 days
17 175-4347 Wheel 2 usually ships 16-21 days
18 999-0016 Washer 1/4 flat plain finish 8 usually ships 11-14 days
19 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8 usually ships 11-14 days
