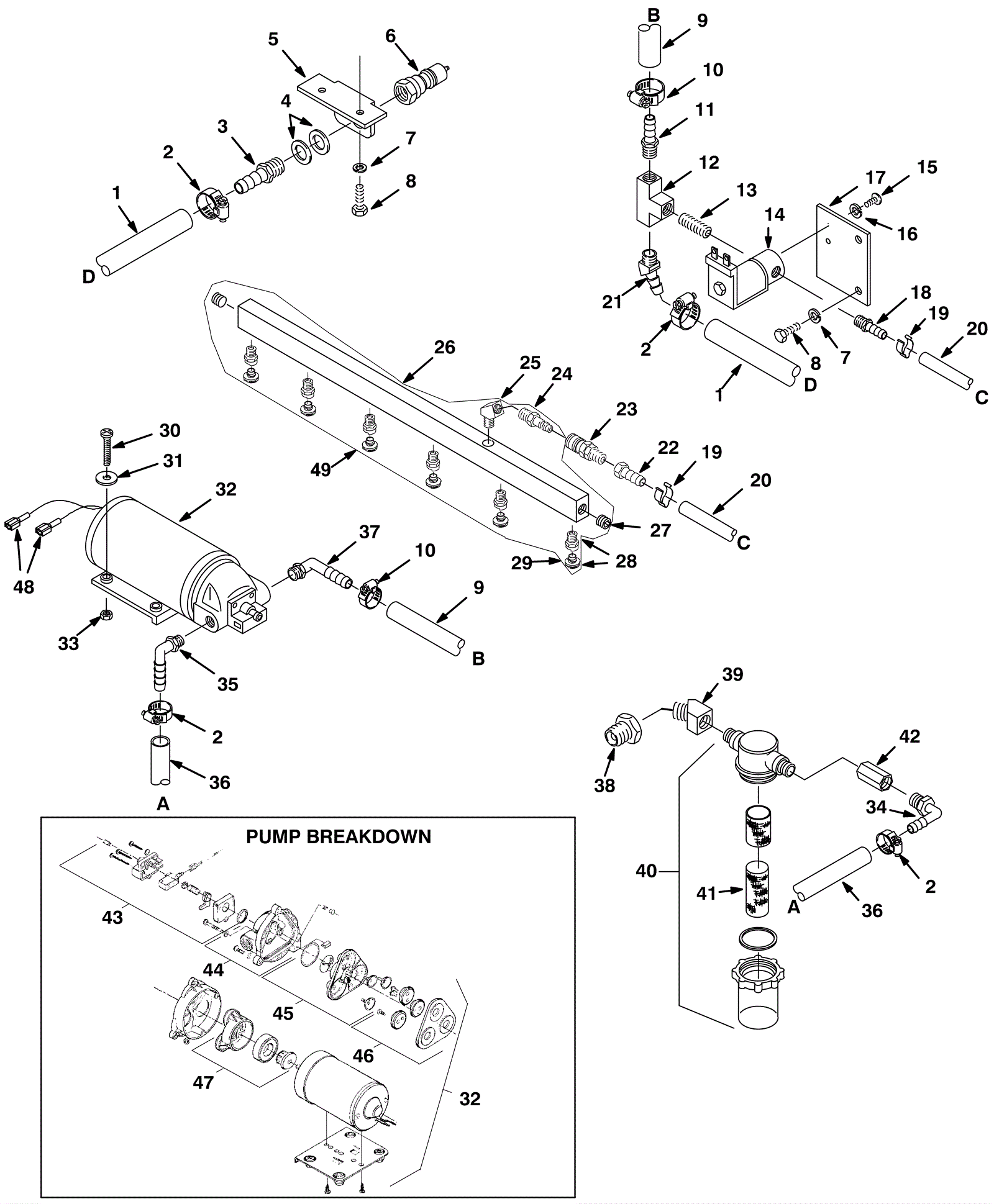

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-4868
|
Hose 3/8 x 24 1/2 inch (gray) |
1 |
|
|
2 |
175-6081
|
Hose clamp |
4 |
|
|
3 |
175-2613
|
Straight brass fitting |
1 |
|
|
4 |
175-1825
|
Washer |
2 |
|
|
5 |
175-4869
|
Mounting bracket |
1 |
|
|
6 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
7 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
8 |
999-1041
|
Screw M6-1 x 12mm pan head phillips stainless steel |
4 |
|
|
9 |
175-4870
|
Hose |
1 |
|
|
10 |
175-0199
|
Hose clamp |
2 |
|
|
11 |
175-6030
|
Straight hosebarb |
1 |
|
|
12 |
175-6253
|
1/4 inch brass tee |
1 |
|
|
13 |
175-6244
|
Nipple |
1 |
|
|
14a |
175-4308
|
24V solenoid valve |
1 |
(if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) |
|
14b |
991-8598
|
Replacement plunger with spring for solenoid valve |
1 |
|
|
15 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
2 |
|
|
16 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
17 |
175-7290
|
Bracket |
1 |
|
|
18 |
175-6024
|
Hosebarb |
1 |
|
|
19 |
175-6170
|
Hose clamp |
2 |
|
|
20 |
175-4872
|
Hose 1/4 x 18 inch (OBSOLETE) |
1 |
|
|
21 |
175-3061
|
Hosebarb |
1 |
|
|
22 |
175-3529
|
Brass fitting |
1 |
|
|
23 |
175-1652
|
1/8 inch female brass quick coupler |
1 |
|
|
24 |
175-1684
|
Quick disconnect fitting |
1 |
|
|
25 |
175-6041
|
Elbow 1/8 x 1/8 inch |
1 |
|
|
26 |
175-1786
|
22 inch spraybar |
1 |
|
|
27 |
175-6121
|
Brass plug |
2 |
|
|
28 |
175-6118
|
Spray tip assembly |
6 |
|
|
29 |
175-3535
|
Brass spray tip |
6 |
|
|
30 |
999-1195
|
Screw 10-24 x 1 1/4 round head phillips zinc plated |
2 |
|
|
31 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
32 |
175-4191
|
24V 100PSI solution pump |
1 |
|
|
32b |
991-6047
|
24V pump 100PSI |
|
(NON-OEM) |
|
33 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
2 |
|
|
34 |
175-2844
|
90 degree elbow fitting |
1 |
|
|
35 |
175-6019
|
90 degree barbed elbow |
1 |
|
|
36 |
175-7292
|
Vinyl tubing 3/8 x 30 inch (gray) |
1 |
|
|
37 |
175-6016
|
Elbow |
1 |
|
|
38 |
175-1944
|
Brass bushing |
1 |
|
|
39 |
175-6031
|
Straight jet fitting |
1 |
|
|
40 |
175-6249
|
Inline filter |
1 |
|
|
41 |
175-4311
|
Mesh filter screen |
1 |
|
|
42 |
175-4875
|
Coupling fitting |
1 |
|
|
43a |
175-6003
|
Pressure switch kit |
1 |
|
|
43b |
175-6004
|
Viton pressure switch kit |
1 |
|
|
43c |
175-6005
|
Shurflo diaphragm switch kit |
1 |
|
|
44a |
175-6006
|
Upper pump housing kit |
1 |
|
|
44b |
175-6007
|
Check valve kit |
1 |
|
|
45 |
175-6008
|
Viton valve kit |
1 |
|
|
46 |
175-6009
|
Shurflo valve kit |
1 |
|
|
47 |
175-6010
|
Lower pump housing kit |
1 |
|
|
48 |
175-0923
|
Male terminal |
2 |
|
|
49 |
175-4873
|
Spray bar assembly |
1 |
(Includes 24-28) |
|
