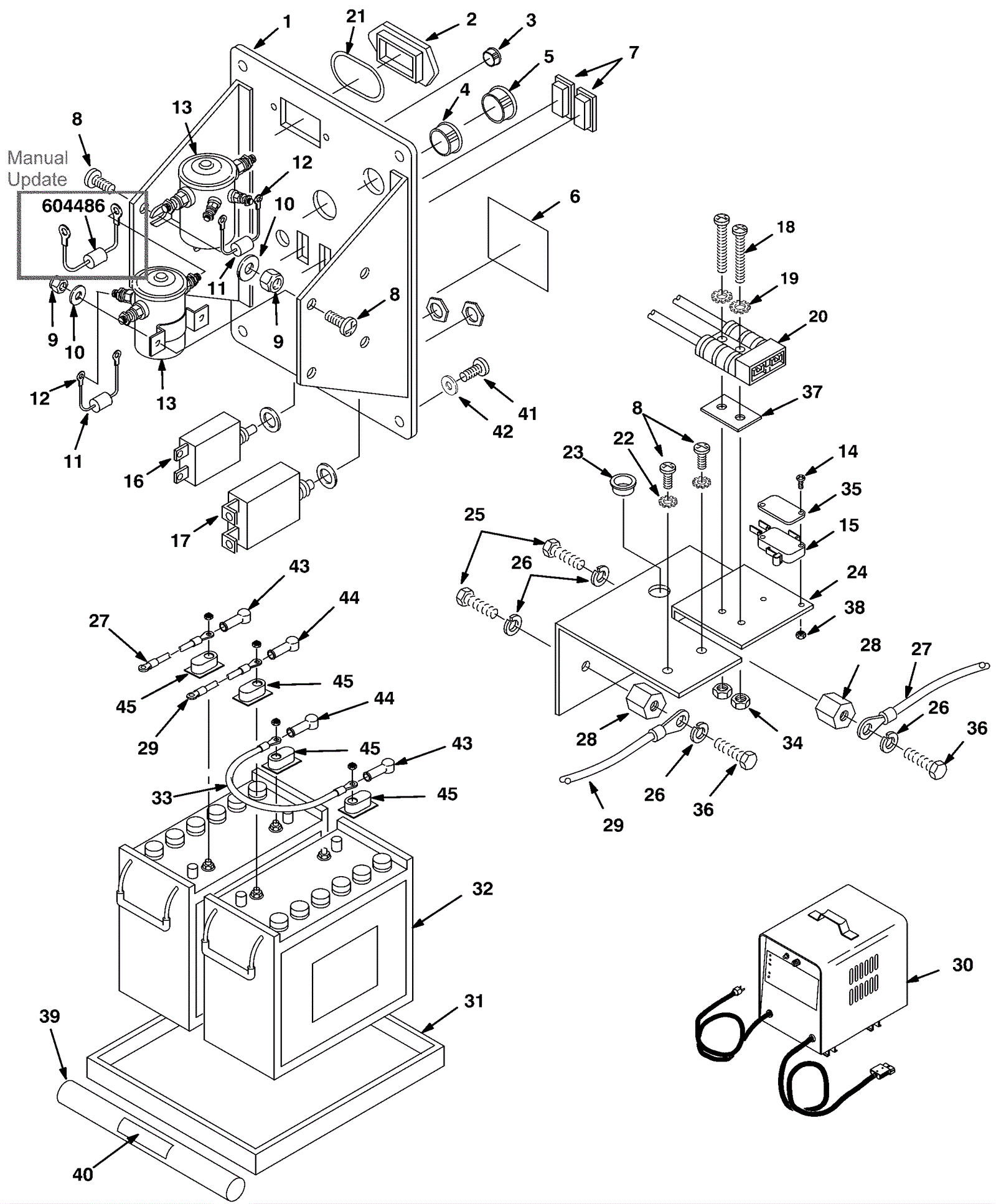

Electrical Assemblies

#PartDescription ReqNotesAvailability
1 175-0297 Control panel housing 1
2 175-3646 Hour meter plug 1
3 175-2701 Plug 1
4 175-3126 Plug 1
5 175-3127 Plug 1
6 275-2369 Flammable material decal 1
7 175-2698 Switch plug 2
8 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 6
9 999-0497 Nut M6-1 nylon insert lock stainless steel 4
10 999-0016 Washer 1/4 flat plain finish 4
11 175-2757 Diode with ring terminals (small) 2
12 175-0924 #10 ring terminal 4
13 175-2023 24V solenoid contactor 2
14 175-1201 Screw M3 x 20mm pan head phillips 2
15 175-1199 Snap switch 1
16a 175-1186 15amp circuit breaker 1
16b 991-8539 15amp circuit breaker 1 (NON-OEM)
17 175-7287 60amp circuit breaker 1
18 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
19 999-0148 Washer #6 external star lock zinc plated 2
20 991-9284 50amp charger plug SB50 with pins (red) 1
21 175-3144 O-ring 1
22 999-1026 Washer #10 internal lock stainless steel 2
23 175-3134 Snap bushing 1
24 175-7284 Charger bracket with standoff 1
25 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
26 999-0632 Washer 1/4 split lock stainless steel 4
27 175-3137 Battery cable (black) 1
28 175-3226 Insulated stand off 2
29 175-7285 Wiring assembly (red) 1
30 175-3139 24V 19amp off board battery charger 1
31 175-3140 Battery tray 1
32 162-0002 12V 185Ah wet battery (SNSR) 2
33a 998-0010 Battery jumper cable - ring type (red) 1
33b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 1 (NON-OEM)
34 999-0144 Nut 6-32 k-lock zinc plated 2
35 175-1200 Switch backing plate 1
36 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
37 175-1197 Plate 1
38 999-1161 Nut M3-.5 hex nylock stainless steel 2
39 175-1147 Battery support tube 1
40 175-7286 Battery placement decal 1
41 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 4
42 999-1026 Washer #10 internal lock stainless steel 4
43 175-1103 Battery cable boot (black) 2
44 175-1103 Battery cable boot (black) 2
45 175-2121 Battery terminal cover (clear) 4
