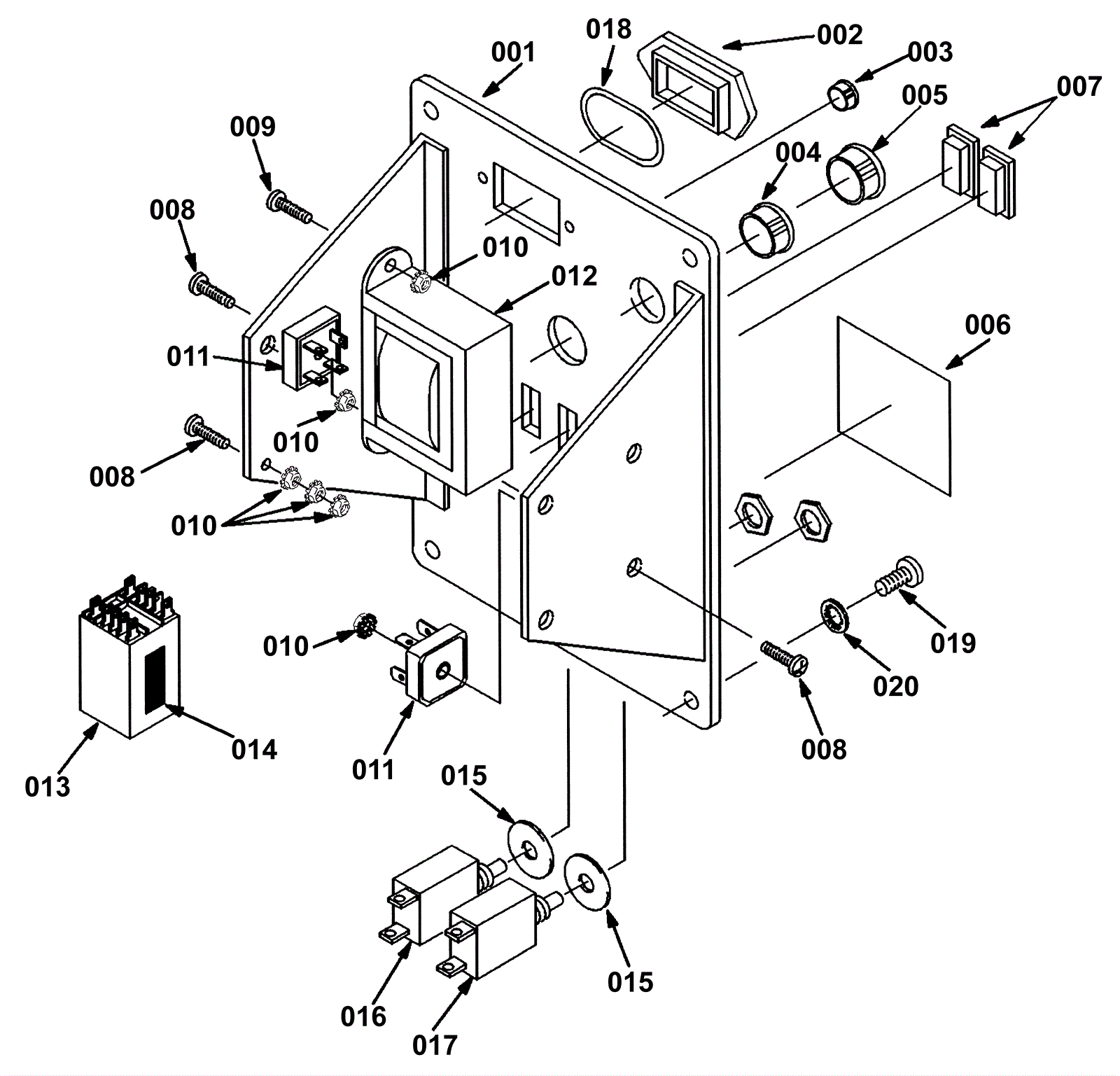

1520 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-0297 Control panel housing $69.30 1 usually ships 10-16 days
002 175-3646 Hour meter plug $10.01 1 ships same day
003 175-2701 Plug $3.83 1 ships same day
004 175-3126 Plug $4.88 1 ships same day
005 175-3127 Plug $4.88 1 usually ships 10-16 days
006 275-2369 Flammable material decal $13.20 1 usually ships 10-16 days
007 N/A Not available Call for price 2 (Vacuum motor hose) usually ships 3-26 days
008 172-1851 Plastic hose with coupling (OBSOLETE) $102.12 3 usually ships 17-28 days
009 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
010 999-0356 Nut 10-24 lock stainless steel $0.99 7 ships same day
011 175-6052 15amp rectifier $24.64 2 ships same day
012 175-4837 Transformer 120v (OBSOLETE) $75.57 1 usually ships 1-5 days
013 175-4030 Complete wallbumpers, right side (OBSOLETE) $71.72 1 usually ships 1-5 days
014 175-0287 Acrylic foam tape 1 inch x 1 foot $15.40 1 usually ships 10-16 days
015 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
016 175-4839 Circuit breaker 4.5a $32.23 1 ships same day
017 275-5777 2amp circuit breaker $47.30 1 usually ships 10-16 days
018 175-3144 O-ring $4.22 1 usually ships 10-16 days
019 999-1040 Screw M3-.5 x 20mm pan head $0.99 4 ships same day
020 999-0053 Washer #10 split lock plain finish $0.99 4 ships same day
