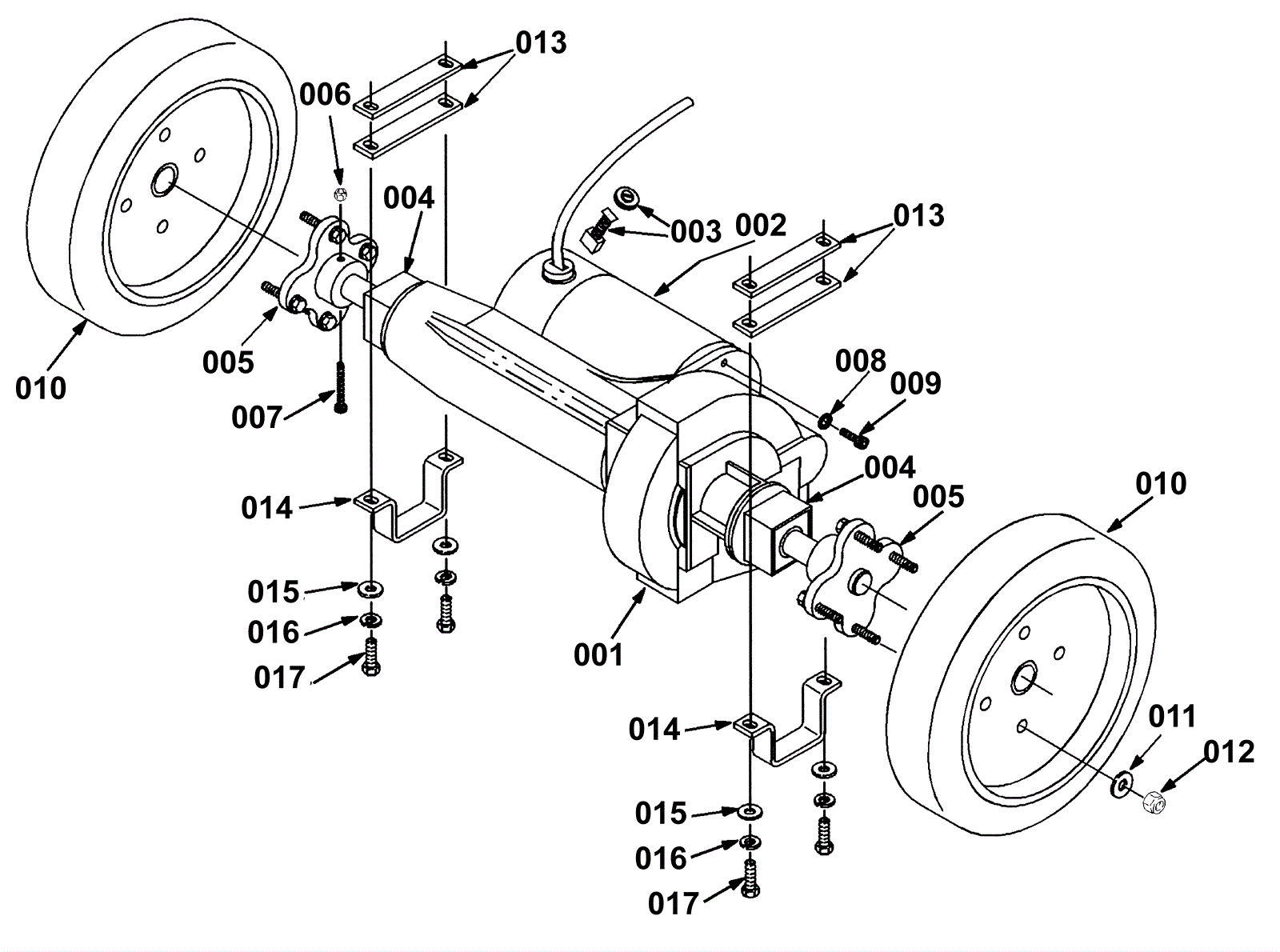

1520 Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001a 175-4833 Transaxle assembly $2,877.05 1 usually ships 1-5 days
001b 175-3654 Transaxle body $2,285.47 1 included in 001a usually ships 10-16 days
001c 175-3655 Transaxle coupling $10.78 1 included in 001a usually ships 10-16 days
001d 175-3656 Transaxle key $11.00 1 included in 001a usually ships 10-16 days
002 175-4834 Transaxle motor $663.74 1 usually ships 10-16 days
003 175-4835 Carbon kit brush $73.92 2 usually ships 1-5 days
004 175-3660 Transaxle sleeve $11.11 2 usually ships 10-16 days
005 275-5229 Transaxle wheel hub with retainer $147.29 2 usually ships 10-16 days
006 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
007 999-0745 Screw 10-24 x 1 1/4 socket head shoulder $2.67 2 ships same day
008 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
009 N/A Not available Call for price 2 Screw 1/4-20 x 3/4 socket usually ships 3-26 days
010 175-4347 Wheel $136.18 2 usually ships 10-16 days
011 175-1895 Carbon brush set for 802 watt motor $64.24 8 usually ships 1-5 days
012 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
013 175-3666 Axle spacer $13.86 4 usually ships 1-5 days
014 175-3667 Transaxle MTG bracket $31.68 2 usually ships 10-16 days
015 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
016 999-1081 Washer M10 split lock stainless steel $0.99 4 ships same day
017 175-3019 Screw M10 x 35mm $5.28 4 usually ships 10-16 days
