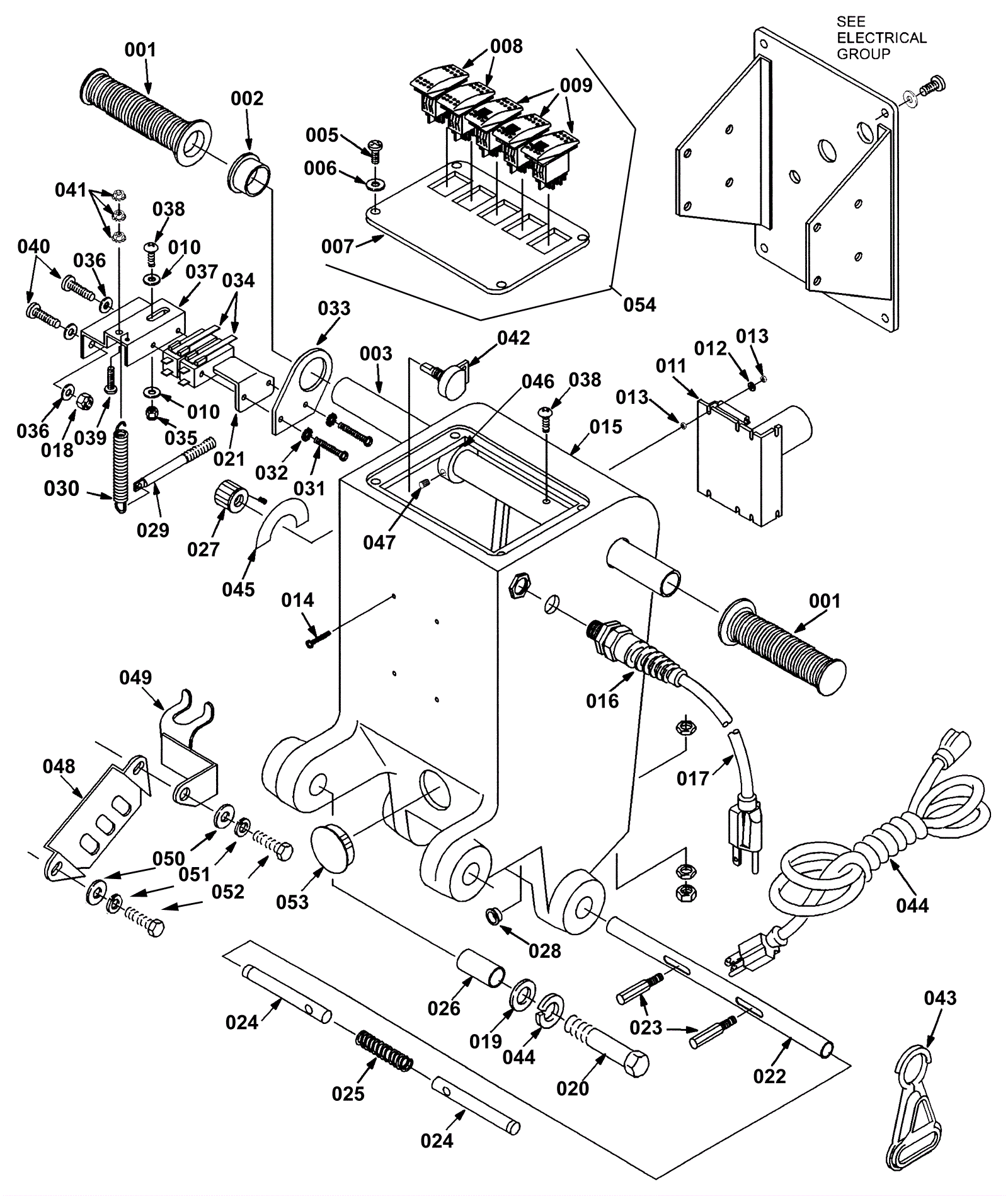

1520 Console Assembly

#PartDescriptionPriceReqNotesAvailability
001a 175-2703 Handle grip $5.02 2 ships same day
001b 991-8571 Handle grip $2.91 2 usually ships 14-21 days
002 175-3093 Flanged bushing $4.88 1 usually ships 10-16 days
003 175-3094 Handle tube $83.05 1 usually ships 10-16 days
004 999-0126 Washer 1/2 split lock $1.28 2 ships same day
005 999-1040 Screw M3-.5 x 20mm pan head $0.99 4 ships same day
006 999-0053 Washer #10 split lock plain finish $0.99 4 ships same day
007a 175-4820 Switch panel (OBSOLETE) $68.97 1 included in 054 usually ships 1-5 days
007b 175-4821 Wire main harness (OBSOLETE) Call for price 1 included in 054 usually ships 1-5 days
008 175-4822 Rocker switch $41.69 2 included in 054 usually ships 10-16 days
009 175-4823 Lighted rocker 120v switch $53.24 3 included in 054 usually ships 1-5 days
010 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
011 175-4824 Board control 120v (OBSOLETE) $366.85 1 usually ships 1-5 days
012 999-0377 Washer 6 SAE flat plain finish $0.99 4 ships same day
013 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 8 ships same day
014 999-0475 Screw 6-32 x 3/4 pan head slotted zinc plated $0.99 4 ships same day
015 175-4825 Control housing (teal) $249.15 1 usually ships 1-5 days
016 175-0340 Strain relief $10.34 1 usually ships 10-16 days
017 175-6218 14/3 pigtail cord 34 inch (yellow) $18.48 1 usually ships 10-16 days
018 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 usually ships 12-18 days
019 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
020 999-0619 Screw 10-24 x 3/4 truss head slotted stainless steel $0.99 2 ships same day
021 175-3122 Switch plate $14.41 1 usually ships 1-5 days
022 175-3108 Handle adjustment tube $68.53 1 usually ships 1-5 days
023 175-2710 Handle adjustment pin $17.05 2 usually ships 1-5 days
024 175-3109 Handle locking pin $21.23 2 usually ships 1-5 days
025 175-2712 Spring $5.50 1 usually ships 1-5 days
026 175-2714 Bushing $7.81 2 usually ships 1-5 days
027 175-1163 Speed control knob $39.05 1 ships same day
028 175-3111 Snap bushing $3.56 1 usually ships 1-5 days
029 175-3112 Spring return pin $16.06 1 usually ships 10-16 days
030 175-3113 Extension spring $5.50 1 usually ships 10-16 days
031 999-1157 Screw 6-32 x 1 5/8 pan head phillips zinc $0.99 2 ships same day
032 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
033 175-3115 Switch bracket $7.48 1 usually ships 1-5 days
034a 175-3116 Snap switch $14.08 2 usually ships 10-16 days
034b 991-5121 Charger interlock switch $14.08 2 (NON-OEM) ships same day
035 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
036 175-1895 Carbon brush set for 802 watt motor $59.95 4 usually ships 1-5 days
038 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
039 175-1851 Sound/exhaust assembly $23.21 1 usually ships 10-16 days
040 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
041 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
042a 175-2715 Potentiometer kit (OBSOLETE) $140.14 1 usually ships 10-16 days
042b 172-2039 5K potentiometer $63.07 1 Potentiometer only ships same day
043 175-0236 Cord belt clip $10.23 1 ships same day
045 175-1169 Speed control decal $5.28 1 usually ships 10-16 days
046 175-1168 Handle collar $6.05 2 usually ships 10-16 days
047 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
048 175-2728 Locking plate $49.61 2 usually ships 1-5 days
049 175-2729 Hose hanger bracket $39.49 1 usually ships 1-5 days
050 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
052 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
053 175-4826 Dome plug $5.50 1 usually ships 1-5 days
054 175-4819 Switch panel assembly (OBSOLETE) $486.53 1 usually ships 1-5 days
37 175-3117 Switch mount $23.76 1 usually ships 1-5 days
