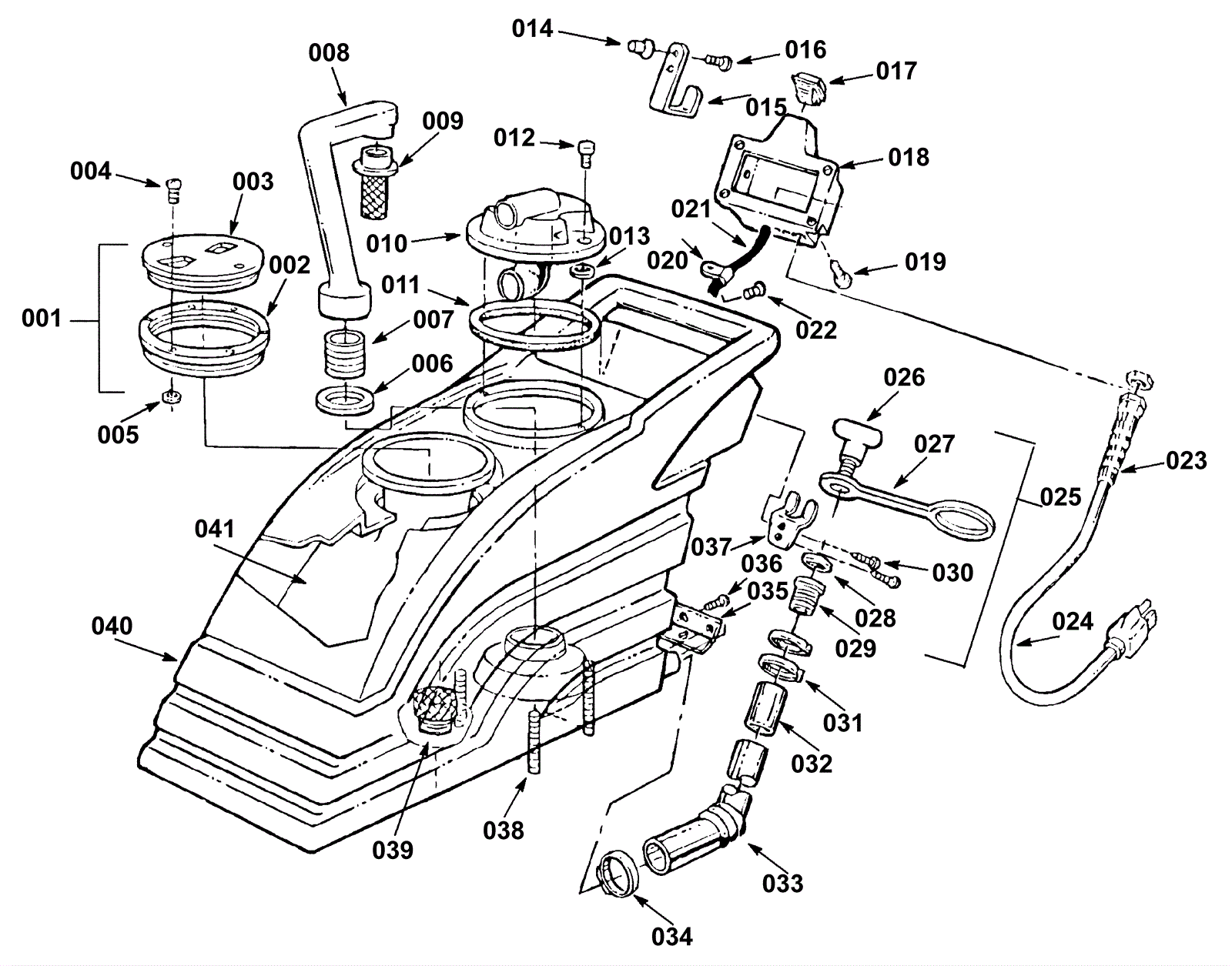

Tank Assembly

#PartDescription ReqNotesAvailability
001 175-6045 Tank lid assembly 1 Includes 002-003
002 164-0205 Tank lid ring (clear) 1 Included with 001
003a 164-0044 Tank lid (clear) 1 Included with 001
003b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
004 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 6
005 999-0016 Washer 1/4 flat plain finish 6
006 175-2640 Gasket 1
007 175-2639 1 1/2 inch nipple fitting 1
008 175-6047 Standpipe 1
009a 675-9887 Shut-off float 1 (OEM)
009b 991-5136 Shut-off float 1 (NON-OEM)
010 175-7350 Dome assembly 1 Includes 011-013
011 175-6049 Tank lid gasket 1 Included with 010
012 175-6050 Knob 2 Included with 010
013 175-6161 Nylon washer 2 Included with 010
014 175-3584 Nut 10-32 well 2
015 175-3585 Cord hook (black) 1
016 999-1016 Screw 10-32 x 1 1/4 flat head phillips stainless steel 2
017 175-0006 Rocker switch 1
018 175-7351 Switchbox (OBSOLETE) 1
019 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 4
020 175-0339 P clamp 2
021 175-7353 Cord 14/4 x 48 inches 1
022 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 2
023 175-0001 Strain relief 1
024 175-0992 14/3 pigtail cord 20 inch 2
025 175-6070 Drain plug assembly 1 Includes 026-029
026 175-6071 Drain plug knob 1 Included with 025
027 175-6072 Drain plug strap 1 Included with 025
028 999-1446 Washer 3/8 x 1 1/2 fender stainless steel 1 Included with 025
029 175-6073 Fitting 1 Included with 025
030 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal 1
031 175-1789 Hose clamp 2
032 175-6074 Drain hose sleeve 2
033a 175-1535 Drain hose assembly 1
033b 991-1907 22 inch molded hose with drain cap 1 (NON-OEM)
034 997-2007 Hose clamp 1
035 175-6077 Tank hinge 1
036 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 1
037 175-6069 Drain hose bracket 1
038 175-6078 Stud 1/4-20 x 5 inch full threaded 1
039 175-6079 Mesh filter screen 3
040 175-7352 Teal recovery tank (OBSOLETE) 1
041 175-6083 10 gallon bladder bag 1
N/S 175-6109 Do not allow foam decal 1
N/S 175-7359 Model name side decal (OBSOLETE) 1
N/S 275-9008 Warning decal 1
N/S 175-6101 Always close decal 1
N/S 175-6107 Always drain decal 1
N/S 175-0147 Tennant decal 1
