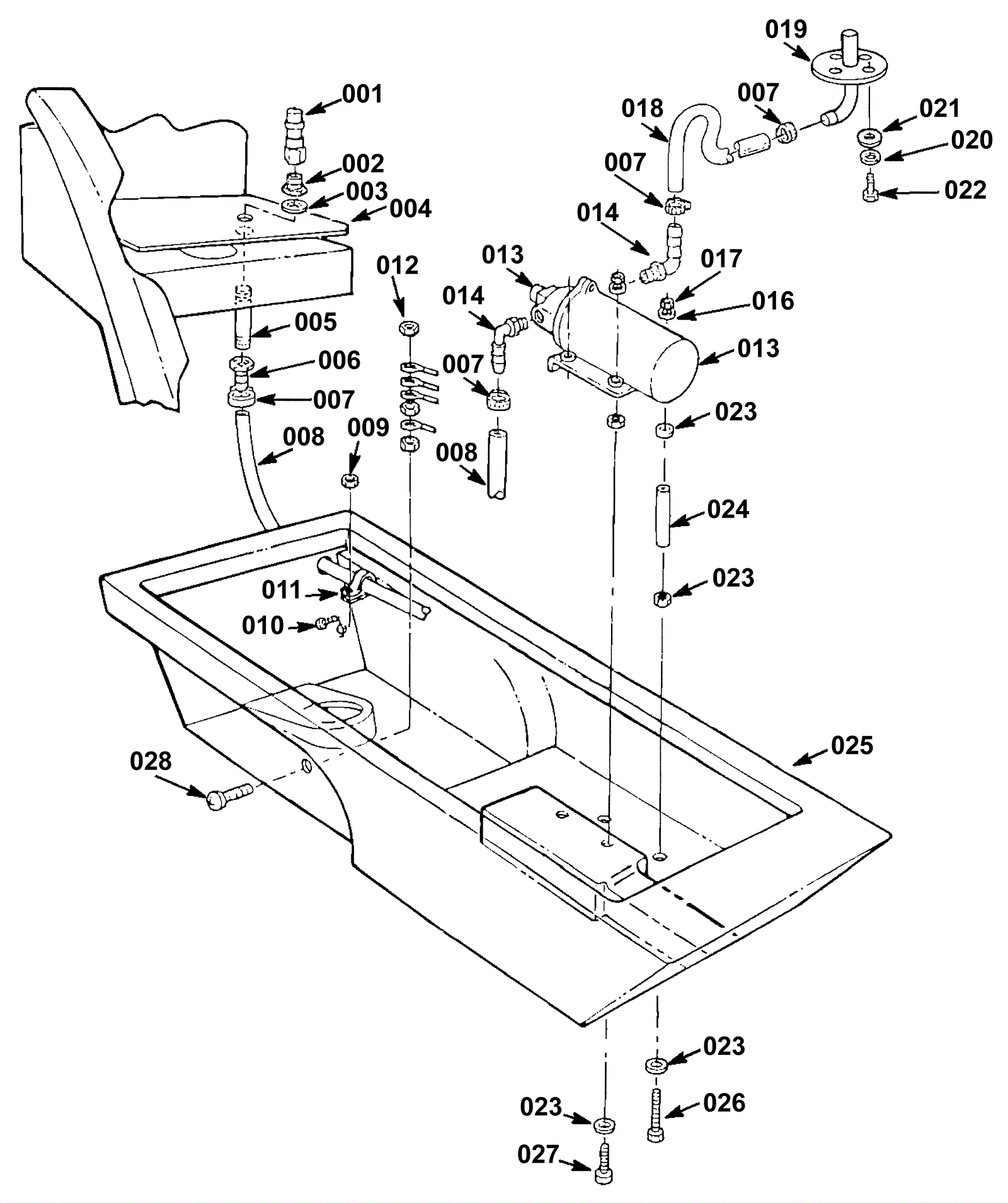

Pump System Assembly

#PartDescription ReqNotesAvailability
001 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
002 175-6014 Adapter 1
003 999-0187 Washer 1/2 flat plain finish 1
004 175-7354 Plate (OBSOLETE) 1
005 175-6015 Nipple 1
006 175-6022 Brass fitting 1
007 997-2001 Hose clamp 4
008 175-6020 Braided hose 3/8 x 45 inch (gray) 4 ft
009 999-0442 Nut 10-24 nylon insert lock stainless steel 1
010 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 1
011 999-1654 P clamp 1
013a 175-6011 120V 100 PSI pump 1
014 175-6016 Elbow 2
016 999-0006 Washer 3/16 flat zinc plated 8
018 175-6020 Braided hose 3/8 x 45 inch (gray) 3 ft
019 175-6021 Bladder plate fitting 1
020 999-0632 Washer 1/4 split lock stainless steel 4
021 999-0016 Washer 1/4 flat plain finish 4
022 999-1027 Screw 10-24 x 1 1/4 round head phillips stainless steel 4
023 999-0393 Washer 3/16 flat aluminum 10
024 175-7355 Plastic spacer 2
025 175-7356 10 Gallon teal chassis (OBSOLETE) 1
026 999-0206 Screw 10-24 x 3 round head slotted zinc plated 2
027 999-1195 Screw 10-24 x 1 1/4 round head phillips zinc plated 2
028 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 4
13b 991-8225 Shurflo pump 1
