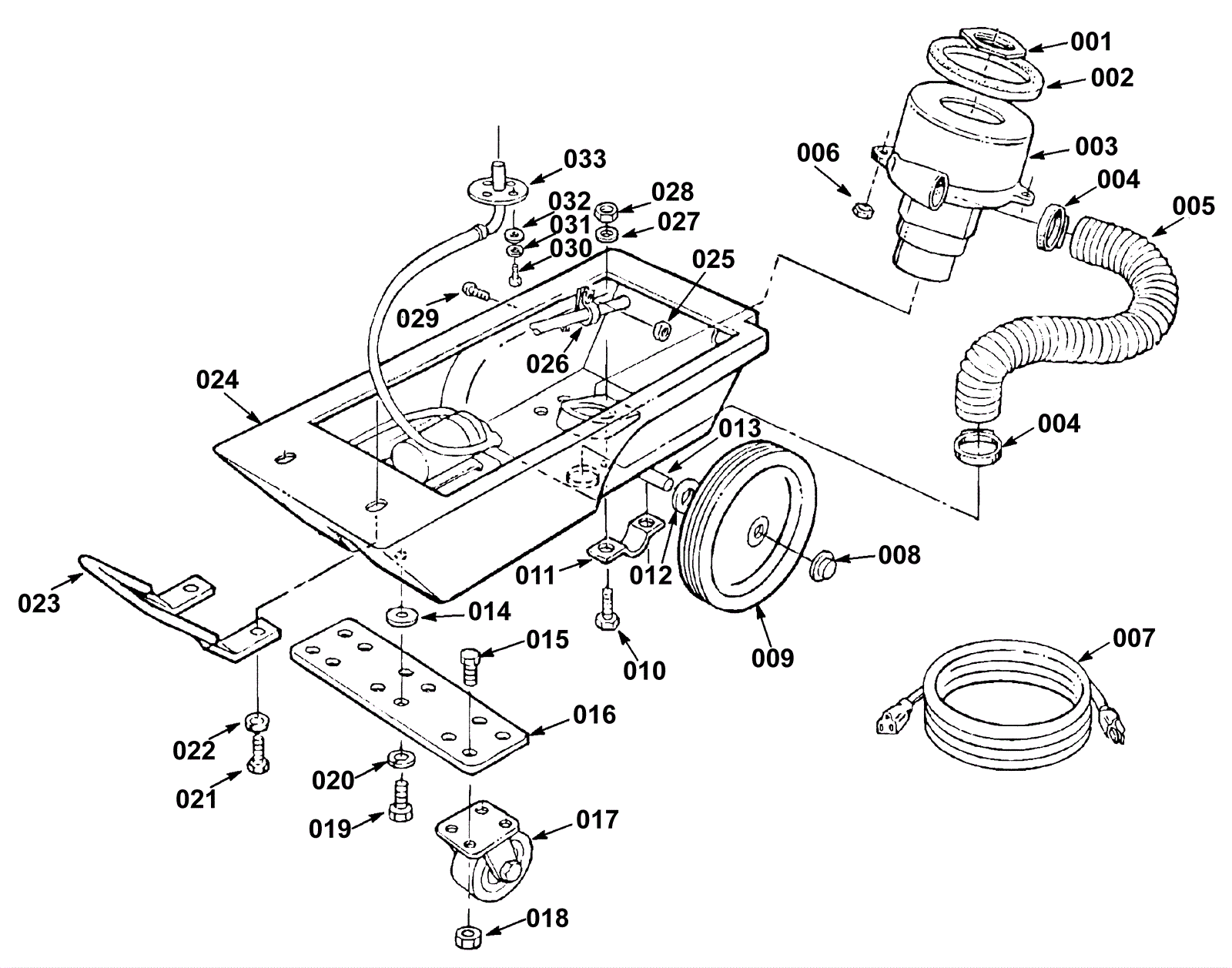

Main Chassis Assembly

#PartDescription ReqNotesAvailability
001 175-2907 Nut 1 1/2 flanged hex 1
002 175-6084 Vacuum motor gasket 1
003a 175-0198 120V 3 stage vacuum motor 1
003b 175-6086 Carbon brush (pkg of 2) 2
003c 991-1213 120V 3 stage vacuum motor tangential 1 (NON-OEM)
004 175-2057 Hose clamp 2
005 175-6090 Exhaust hose 2 x 26 inch (black) 2
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
007 175-1937 14/3 extension cord 25 feet (yellow) 1
008 175-6097 Hub cap 2
009 175-6096 Wheel 2
010 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
011 175-6098 Axle bracket 2
012 999-0187 Washer 1/2 flat plain finish 2
013 175-6095 Axle 1
014 999-0617 Washer 3/8 x 1 flat stainless steel 4
015 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 8
016 175-7347 Caster mount plate 1
017 175-7357 4 Hold swivel caster 2
018 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 8
019 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 4
020 999-0553 Washer 5/16 medium split lock stainless steel 4
021 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 2
022 999-0034 Washer 3/8 split lock plain finish 2
023 175-7358 Handle weldment (OBSOLETE) 1
024 175-7356 10 Gallon teal chassis (OBSOLETE) 1
025 999-0442 Nut 10-24 nylon insert lock stainless steel 1
026 175-0988 P clamp 1
027 999-0016 Washer 1/4 flat plain finish 4
028 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
029 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
030 999-1027 Screw 10-24 x 1 1/4 round head phillips stainless steel 4
031 999-0632 Washer 1/4 split lock stainless steel 4
032 999-0016 Washer 1/4 flat plain finish 4
033 175-6021 Bladder plate fitting 1
