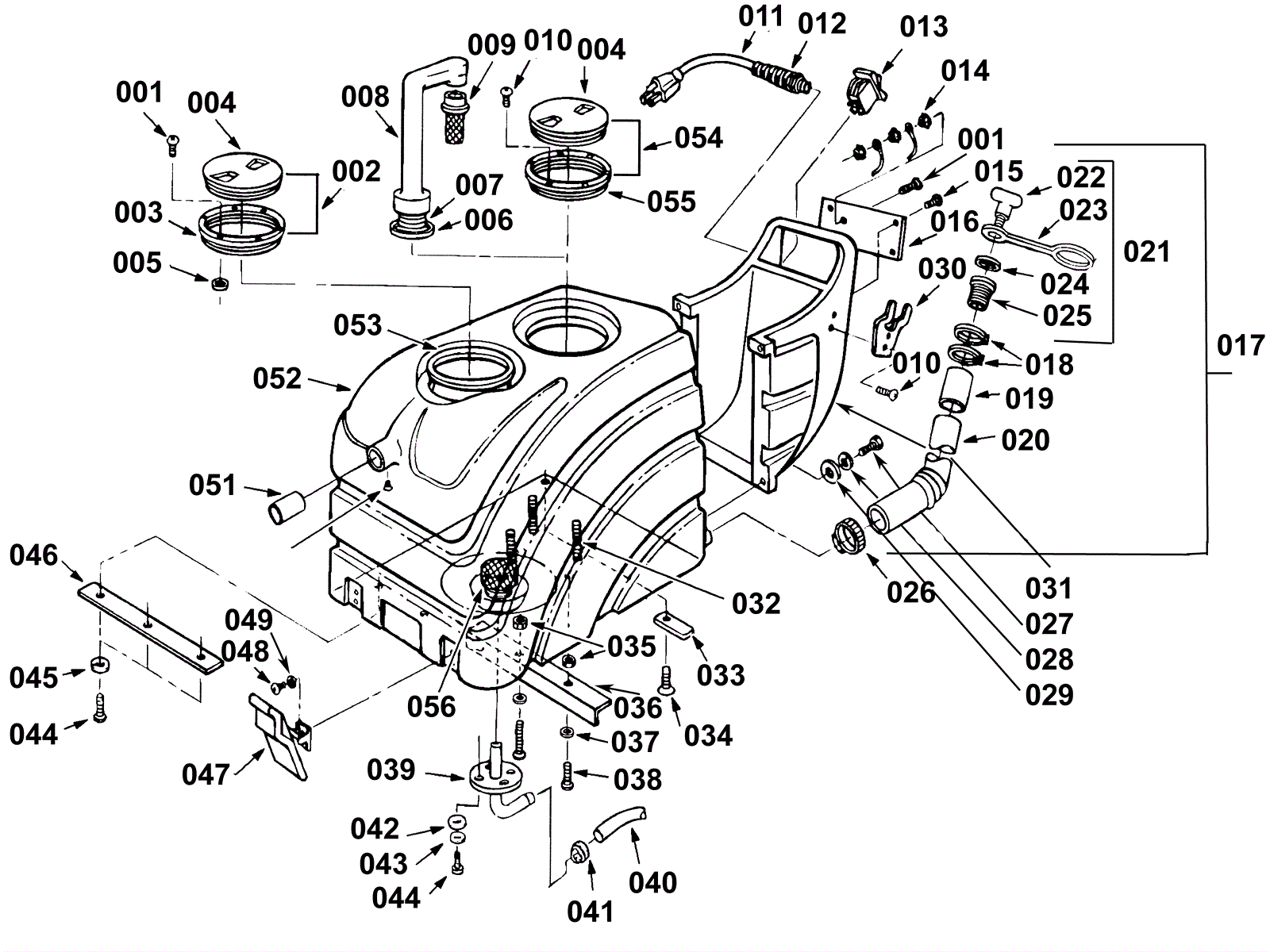

1120 Upper Housing Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-1851 Sound/exhaust assembly $23.21 7 usually ships 5-16 days
002 175-6045 Tank lid assembly $123.31 2 usually ships 5-16 days
003 164-0205 Tank lid ring (black) $34.98 2 ships same day
004 175-1984 Ferrule stainless steel $25.19 2 usually ships 5-16 days
005 175-1895 Carbon brush set for 802 watt motor $58.74 6 usually ships 1-5 days
006 175-2640 Gasket $4.29 1 ships same day
007 175-2639 1 1/2 inch nipple fitting $21.12 1 usually ships 5-16 days
008 175-6047 Standpipe $175.78 1 usually ships 5-16 days
009a 175-2642 Shut-off float $112.75 1 (OEM) usually ships 5-16 days
009b 991-5136 Shut-off float $33.33 1 (NON-OEM) ships same day
010 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 6 ships same day
011 175-0992 14/3 pigtail cord 20 inch $16.17 1 usually ships 5-16 days
012 175-0001 Strain relief $12.32 1 ships same day
013 175-1008 Rocker switch $30.25 2 ships same day
014 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
015 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 4 ships same day
016 175-1849 Rear cover plate (black) (OBSOLETE) $14.19 1 usually ships 5-16 days
017 175-6256 Drain hose kit $97.68 1 usually ships 5-16 days
018 175-1789 Hose clamp $4.95 2 ships same day
019 175-6074 Drain hose sleeve $15.40 1 usually ships 5-16 days
020a 175-1535 Drain hose assembly $104.28 1 ships same day
020b 991-1907 22 inch molded hose with drain cap $40.18 1 (NON-OEM) ships same day
021 175-6070 Drain plug assembly $83.49 1 usually ships 5-16 days
022 175-6071 Drain plug knob $16.17 1 usually ships 5-16 days
023 175-6072 Drain plug strap $17.60 1 usually ships 5-16 days
024 999-1446 Washer 3/8 x 1 1/2 fender stainless steel $0.99 1 ships same day
025 175-6073 Fitting $10.12 1 usually ships 5-16 days
026 997-2007 Hose clamp $2.07 1 ships same day
027 175-1861 Extension cord with cord wrap 50 feet $84.37 4 usually ships 5-16 days
028 175-1862 Waist belt keeper $12.65 4 usually ships 1-5 days
029 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
030 175-1856 Bottom cap $86.68 1 usually ships 1-5 days
031 175-7315 Teal handle (OBSOLETE) $267.52 1 usually ships 1-5 days
032 175-1029 Stud 1/4 x 4 1/4 inch $4.18 3 usually ships 1-5 days
033 175-2008 Plate $13.09 1 usually ships 1-5 days
034 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel $0.99 1 ships same day
035 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 2 ships same day
036 175-2013 Tank support bracket $22.22 1 usually ships 1-5 days
037 175-1880 Retrofit set $211.75 3 usually ships 1-5 days
038 175-2741 Plate $83.49 4 usually ships 1-5 days
039 175-6021 Bladder plate fitting $55.66 1 usually ships 5-16 days
040 175-7216 Hose 3/8 x 31 inch (gray) $18.70 1 usually ships 5-16 days
041 175-2784 Axle clamp $13.92 2 usually ships 1-5 days
042 175-1895 Carbon brush set for 802 watt motor $58.74 4 usually ships 1-5 days
043 175-1880 Retrofit set $211.75 7 usually ships 1-5 days
044 175-1814 Waist belt latch $12.65 7 usually ships 1-5 days
045 175-1880 Retrofit set $211.75 3 usually ships 1-5 days
046 175-2014 Front tank brace $24.64 1 usually ships 1-5 days
047 175-1909 Carbon brush set $37.95 2 usually ships 1-5 days
048 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 8 ships same day
050 175-2016 Pop rivet 3/16 x 1/4 inch $3.19 1 usually ships 5-16 days
051 175-2017 Inlet tube $60.94 1 usually ships 5-16 days
052 175-7310 Recovery tank (teal) $671.77 1 usually ships 5-16 days
053 175-1989 Bladder bag $345.40 1 usually ships 5-16 days
054 164-0202 Tank lid assembly $86.30 1 usually ships 7-10 days
055 175-3580 Outer tank lid ring $37.51 1 usually ships 5-16 days
056 175-6079 Mesh filter screen $17.16 1 ships same day
N/S 175-0147 Tennant decal $7.37 1 usually ships 1-5 days
N/S 175-1938 Use bleeder hose decal $21.56 1 usually ships 5-16 days
N/S 175-6101 Always close decal $14.63 2 usually ships 5-16 days
N/S 175-6107 Always drain decal $6.27 1 usually ships 5-16 days
N/S 175-7312 Warning decal $13.53 1 usually ships 1-5 days
N/S 275-1360 Warning decal $11.00 1 usually ships 5-16 days
