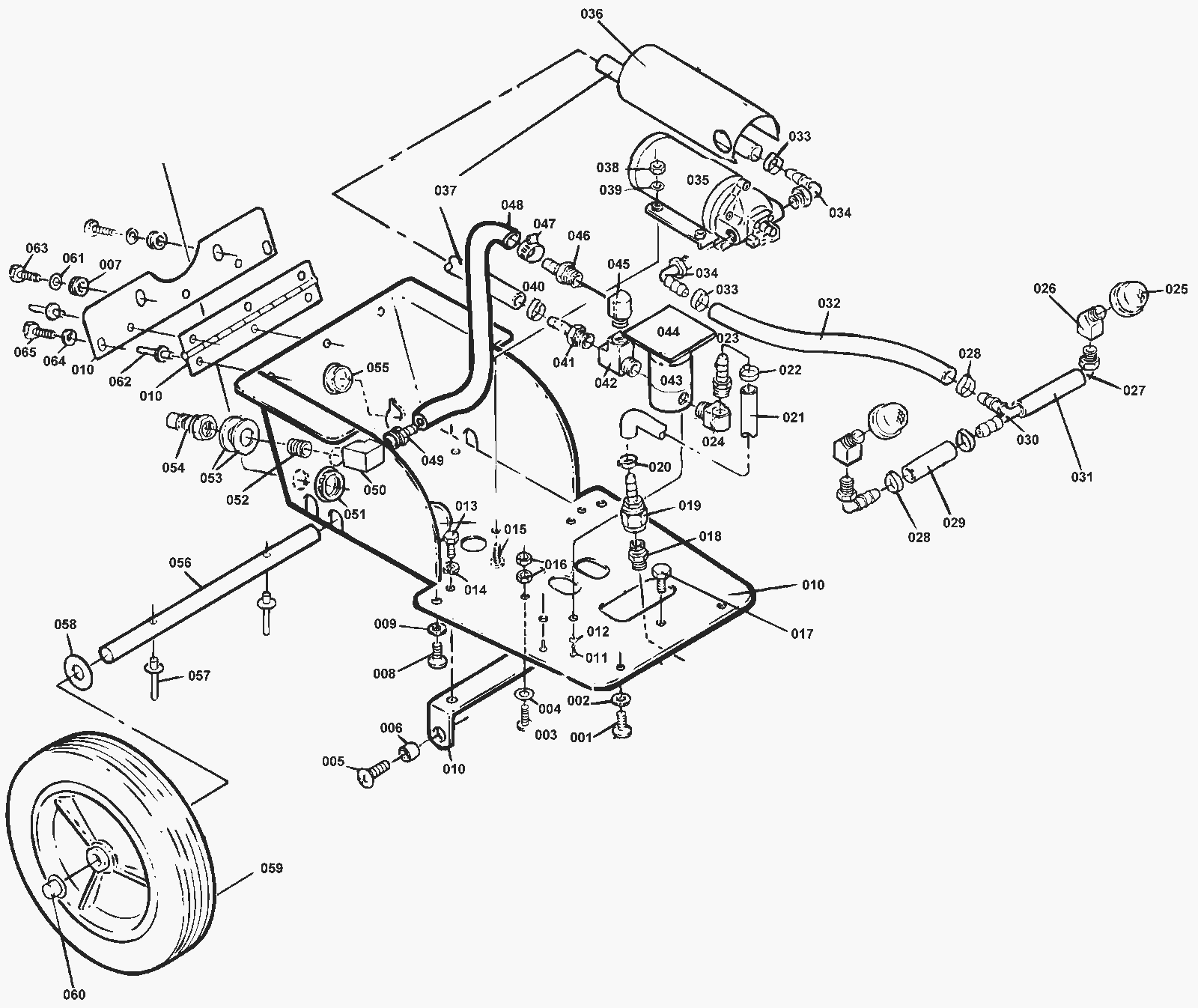

1220 Chassis Assembly - Before 07.2005

#PartDescriptionPriceReqNotesAvailability
001 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
002 999-1024 Washer 1/4 external tooth lock stainless steel $1.32 8 ships same day
003 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 1 ships same day
004 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
005 999-1562 Screw 3/8-16 x 3/4 truss head phillips zinc plated $0.99 2 usually ships 1-5 days
006 175-6154 Spacer $4.73 2 usually ships 5-16 days
007 175-1625 Rubber grommet $3.30 2 usually ships 5-16 days
008 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
009 999-1024 Washer 1/4 external tooth lock stainless steel $1.32 2 ships same day
010 275-4907 Chassis (black) $291.17 1 usually ships 5-16 days
011 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 2 ships same day
012 999-1083 Washer #8 internal star lock stainless steel $0.99 1 ships same day
013 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
014 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
015 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 2 ships same day
016 999-0356 Nut 10-24 lock stainless steel $0.99 2 ships same day
017 999-0590 Screw 3/8-16 x 1/2 socket head shoulder $4.27 1 ships same day
018 175-6042 Adapter $4.29 1 usually ships 5-16 days
019 175-6043 Hosebarb $12.10 1 usually ships 5-16 days
020 175-6170 Hose clamp $3.96 1 ships same day
021a 175-4876 PVC hose 1/4 x 12 inch (gray) $16.83 1 usually ships 5-16 days
021b 175-7332 Hose guard $54.67 1 usually ships 1-5 days
022 175-6170 Hose clamp $3.96 1 ships same day
023 175-6024 Hosebarb $4.95 1 usually ships 5-16 days
024 175-2614 90 degree elbow fitting $4.95 1 ships same day
025 175-6079 Mesh filter screen $17.16 2 ships same day
026 175-6031 Straight jet fitting $7.48 2 ships same day
027 175-2844 90 degree elbow fitting $4.95 2 ships same day
028 175-6032 Hose clamp $4.73 5 ships same day
029 175-7334 Hose 3/8 x 4 inch $9.35 1 usually ships 1-5 days
030 175-1615 Tee fitting $6.60 1 usually ships 5-16 days
031 175-8865 Hose 3/4 x 4 inch $9.68 1 usually ships 5-16 days
032 175-6020 Braided hose 3/8 x 45 inch (gray) $17.82 1 usually ships 5-16 days
033 175-6081 Hose clamp $4.84 2 ships same day
034 175-6019 90 degree barbed elbow $7.48 2 usually ships 5-16 days
035a 175-6011 120V 100 PSI pump $476.08 1 (OEM) usually ships 5-16 days
035b 991-8225 Shurflo pump $252.55 1 (NON-OEM) ships same day
036 175-1616 Pump shield $14.52 1 usually ships 5-16 days
037 275-4585 11 inch PVC hose (gray) $12.43 1 usually ships 5-16 days
038 999-0356 Nut 10-24 lock stainless steel $0.99 2 ships same day
039 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
040 175-6032 Hose clamp $4.73 6 ships same day
041 175-2613 Straight brass fitting $4.95 2 usually ships 5-16 days
042 175-6029 Straight tee $13.75 1 ships same day
043a 175-6025 Solution solenoid valve $220.99 1 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) ships same day
043b 991-8598 Replacement plunger with spring for solenoid valve $19.47 1 ships same day
044 175-7336 Solenoid shield $3.63 1 usually ships 1-5 days
045 175-2614 90 degree elbow fitting $4.95 1 ships same day
046 175-6030 Straight hosebarb $5.83 2 usually ships 5-16 days
047 175-6081 Hose clamp $4.84 2 ships same day
048a 175-6035 26 inch rubber hose (red) $20.46 1 usually ships 5-16 days
048b 175-1618 Hose guard 1/2 x 26 inch $10.45 1 usually ships 1-5 days
049 175-6030 Straight hosebarb $5.83 2 usually ships 5-16 days
050 175-6248 90 degree elbow $7.48 1 usually ships 5-16 days
051 175-3554 Wiring harness $218.02 1 usually ships 5-16 days
052 175-6244 Nipple $3.96 1 ships same day
053 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
054 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $10.94 1 ships same day
055 175-2755 Snap bushing $3.08 1 usually ships 1-5 days
056 275-4907 Chassis (black) $291.17 1 usually ships 5-16 days
057 175-1620 Pop rivet (OBSOLETE) $0.99 2 usually ships 1-5 days
058 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
059 175-1621 10 inch wheel (gray) $54.78 2 ships same day
060 175-6097 Hub cap $4.84 2 ships same day
061 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
062 175-1623 Pop rivet $3.30 6 usually ships 1-5 days
063 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
064 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
065 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
