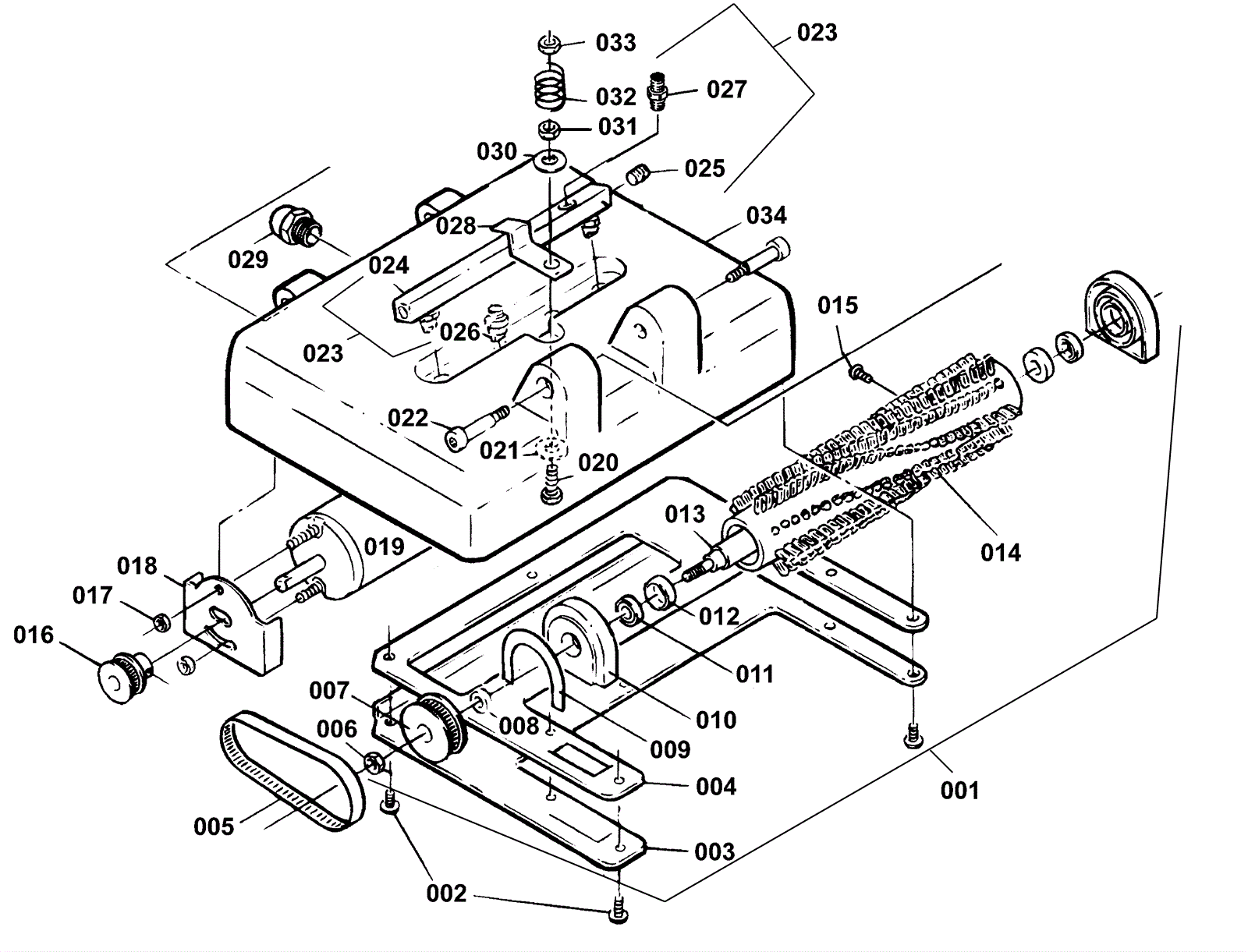

1220 Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-1607 16 inch brush assembly $406.23 1 (includes 006-015) usually ships 5-16 days
002 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 10 ships same day
003 175-6144 16 inch brush base plate $87.12 1 usually ships 5-16 days
004 175-6142 16 inch base gasket $33.88 1 ships same day
005 175-6141 Brush drive belt $30.25 1 usually ships 5-16 days
006 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 ships same day
007 175-6140 Brush pulley $37.07 1 usually ships 5-16 days
008 175-6139 Spacer $3.85 1 usually ships 5-16 days
009 175-6143 Bearing block gasket $5.28 1 ships same day
010 175-6133 Bearing block $9.57 2 usually ships 5-16 days
011a 175-0069 Brush bearing $18.26 2 (OEM) ships same day
011b 991-5125 Brush bearing $2.75 2 (NON-OEM) ships same day
012 175-6134 Brush bearing seal $16.72 2 usually ships 5-16 days
013 175-6137 16 inch brush shaft $135.19 1 usually ships 5-16 days
014 175-6135 Scrubbing brush - CYLINDRICAL $219.89 1 ships same day
015 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
016 175-6129 Motor pulley (Tennant Industrial) $112.89 1 usually ships 5-16 days
017 999-0239 Nut 10-32 k-lock zinc plated $0.99 2 ships same day
018 175-6130 Motor bracket $23.21 1 usually ships 5-16 days
019 175-6131 120V brush motor $289.52 1 ships same day
020 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 ships same day
021 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
022 175-6156 Screw 3/8 x 3/4 shoulder $4.95 2 usually ships 5-16 days
023 175-1609 16 inch spraybar assembly $185.46 1 (includes 024 - 027) usually ships 1-5 days
024 175-6039 16 inch spray bar manifold $87.45 1 usually ships 5-16 days
025 175-6121 Brass plug $3.96 3 ships same day
026a 175-6117 Spray tip assembly $75.02 4 (includes 026b and 026c) usually ships 5-16 days
026b 275-5132 Brass spray tip $27.39 4 usually ships 5-16 days
026c 175-8085 Spray nozzle seal $29.37 4 usually ships 5-16 days
027 175-6042 Adapter $4.29 1 usually ships 5-16 days
028 175-6115 Spray bar clamp $9.57 1 usually ships 5-16 days
029a 175-6065 Interconnect cord $26.18 1 usually ships 1-5 days
029b 175-6124 Cord grip $10.12 1 usually ships 1-5 days
030 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
031 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
032 175-1611 Spring $2.69 1 ships same day
033 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
034 175-7207 16 inch (400mm) brush housing (teal) $191.51 1 usually ships 1-5 days
