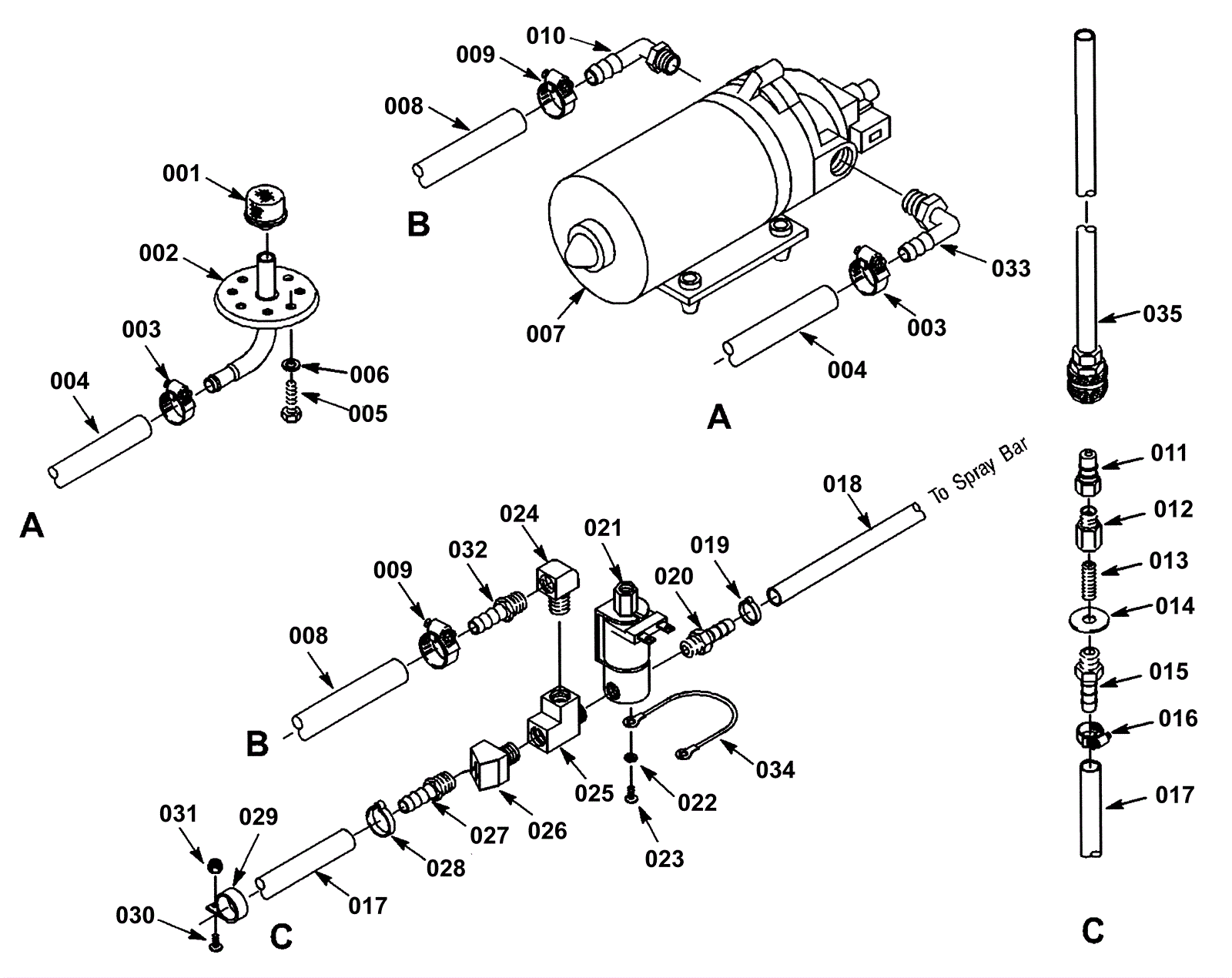

Plumbing Assembly

#PartDescription ReqNotesAvailability
001 175-6079 Mesh filter screen 1
002 175-6021 Bladder plate fitting 1
003 175-6081 Hose clamp 2
004 175-3575 Gray hose 3/8 x 2-3/4 inches 1
005 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
006 999-0632 Washer 1/4 split lock stainless steel 4
007a 175-6011 120V 100 PSI pump 1
008 175-6035 26 inch rubber hose (red) 1
009 175-0199 Hose clamp 2
010 175-6016 Elbow 1
011 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
012 999-0114 Washer 1/2 SAE flat 1
013 175-6015 Nipple 1
014 999-0187 Washer 1/2 flat plain finish 1
015 175-6022 Brass fitting 1
016 175-6081 Hose clamp 1
017 175-3576 Hose 3/8 x 4 1/3 inches 1
018 175-3536 Hose 1/4 x 1-1/4 inches 1
019 175-6170 Hose clamp 2
020 175-6024 Hosebarb 1
021a 175-6025 Solution solenoid valve 1 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve)
021b 991-8598 Replacement plunger with spring for solenoid valve 1
022 999-1083 Washer #8 internal star lock stainless steel 2
023 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 2
024 175-2614 90 degree elbow fitting 1
025 175-6029 Straight tee 1
026 175-6031 Straight jet fitting 1
027 175-2613 Straight brass fitting 1
028 175-6032 Hose clamp 1
029 175-0988 P clamp 1
030 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 1
031 999-0442 Nut 10-24 nylon insert lock stainless steel 3
032 175-6030 Straight hosebarb 1
033 175-6019 90 degree barbed elbow 1
034 175-3578 Ground wire assembly 1
035 175-3579 Pump out hose 1
7b 991-8225 Shurflo pump 1
