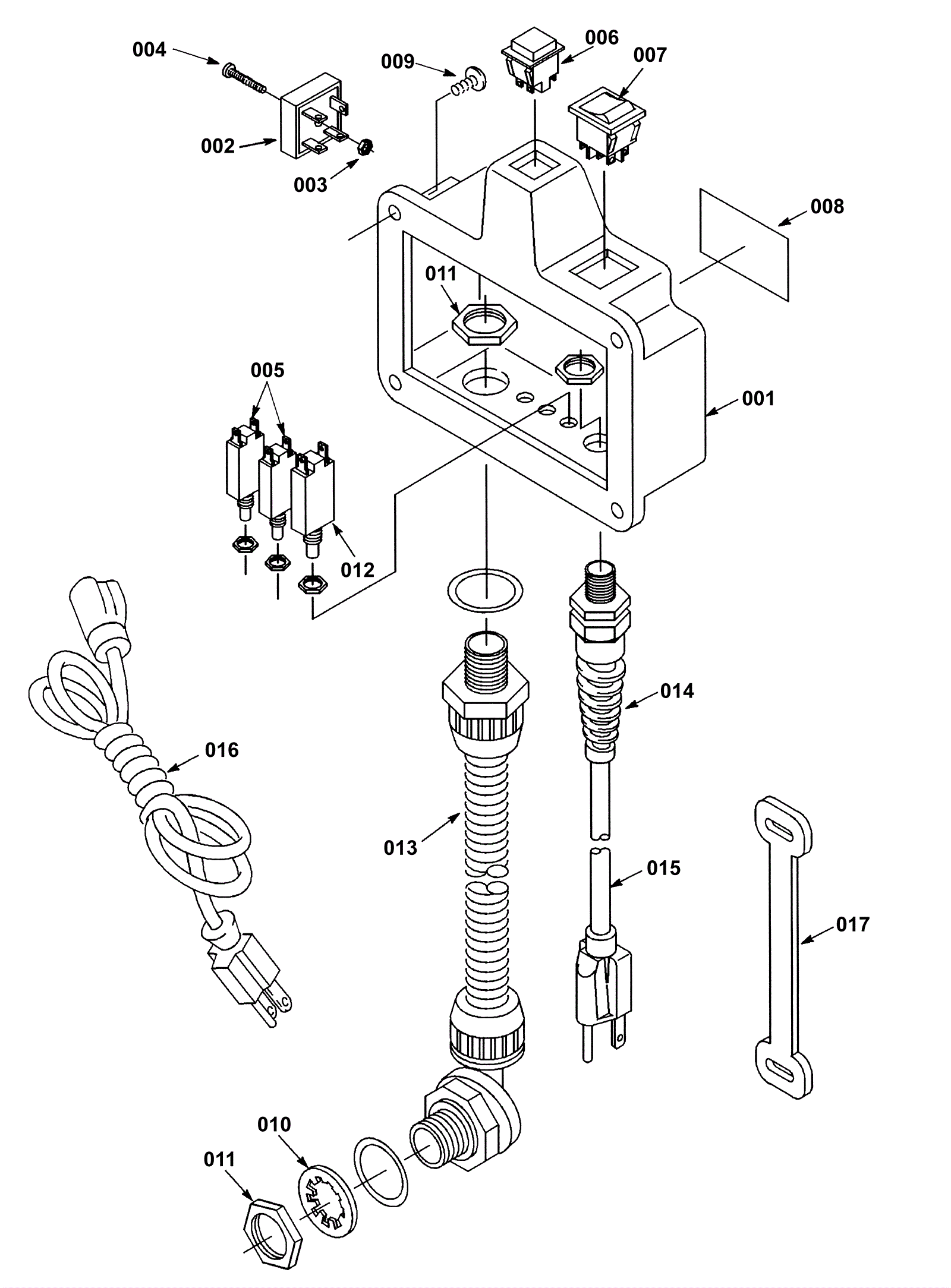

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
175-3547
|
Switchbox assembly (OBSOLETE) |
1 |
120v |
|
002 |
175-6052
|
15amp rectifier |
1 |
|
|
003 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
1 |
|
|
004 |
999-0475
|
Screw 6-32 x 3/4 pan head slotted zinc plated |
1 |
|
|
006 |
175-3549
|
Alternating switch |
1 |
120v |
|
007 |
175-0005
|
Rocker switch |
1 |
|
|
008 |
275-9008
|
Warning decal |
1 |
|
|
009 |
999-1080
|
Screw 1/4-20 x 5/8 truss head phillips stainless steel |
4 |
|
|
012 |
175-6061
|
12amp circuit breaker |
1 |
12 amp 120v |
|
014 |
175-0001
|
Strain relief |
1 |
|
|
015 |
175-6064
|
14/3 pigtail cord 18 inch |
1 |
|
|
017 |
175-3551
|
Cord strain relief strap (OBSOLETE) |
1 |
|
|
