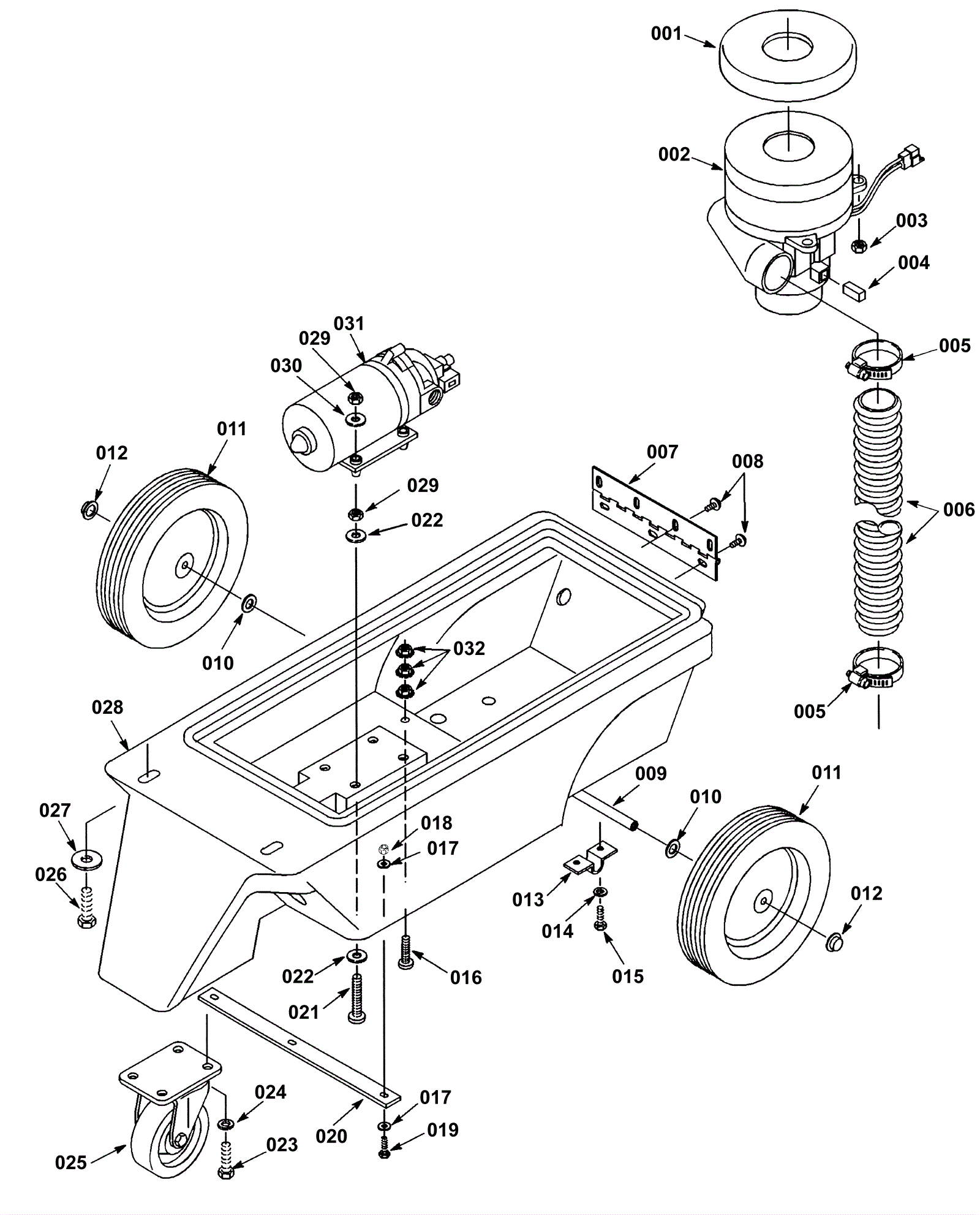

Chassis Assembly

#PartDescription ReqNotesAvailability
001 175-6084 Vacuum motor gasket 1 120v
002b 175-6087 Vacuum fan cover 1 120v
002c 991-1213 120V 3 stage vacuum motor tangential 1 (NON-OEM)
004 175-6086 Carbon brush (pkg of 2) 2
005 175-2057 Hose clamp 2
006 175-6090 Exhaust hose 2 x 26 inch (black) 1
007 175-6077 Tank hinge 1
008 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 7
009 175-6095 Axle 1
013 175-6098 Axle bracket 2
015 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
016 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 1
018 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
019 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 3
022 999-0393 Washer 3/16 flat aluminum 8
024 175-1886 Green twist cap 4
025 175-0888 4 inch swivel caster wheel 1
026 175-3546 Teal Chassis (OBSOLETE) 2
027 999-0617 Washer 3/8 x 1 flat stainless steel 2
028 175-3546 Teal Chassis (OBSOLETE) 1 Teal
032 999-0356 Nut 10-24 lock stainless steel 3
31b 991-8225 Shurflo pump 1
