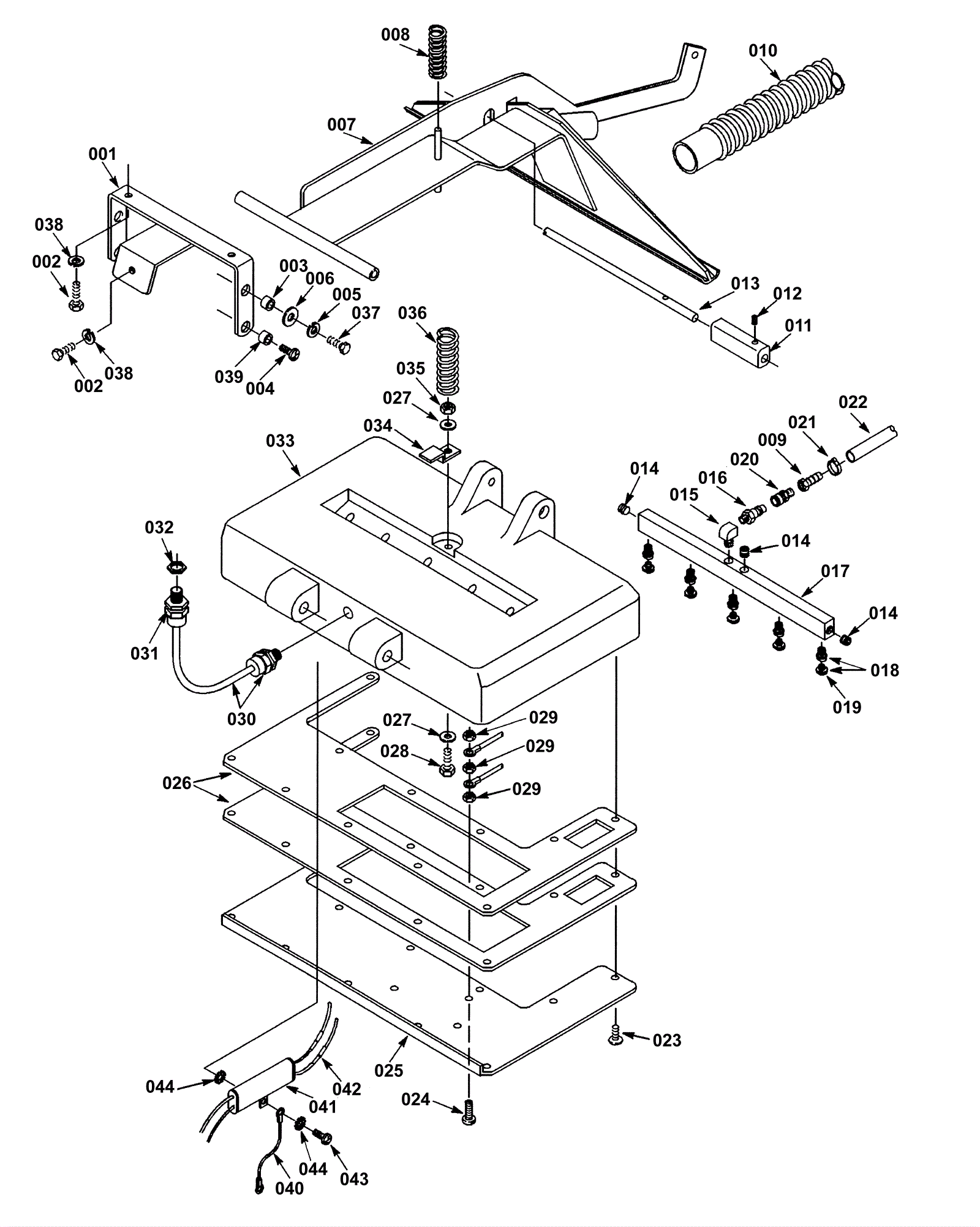

Brush Housing Assembly

#PartDescription ReqNotesAvailability
001 175-3526 Mounting bracket 1
002 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 3
003 175-2725 Bushing 2
004 999-1562 Screw 3/8-16 x 3/4 truss head phillips zinc plated 2
005 999-0034 Washer 3/8 split lock plain finish 2
006 999-0617 Washer 3/8 x 1 flat stainless steel 2
007 175-3527 Pickup tool with lever 1
008 175-3528 Pressure spring 1
009 175-3529 Brass fitting 1
010 175-3530 Vacuum hose with cuffs 1 1/2 x 46 inch 1
011 175-6231 Spraybar w/twist jets assembly 1
012 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 1
013 175-3532 Cam adjuster lever 1
013a 175-3533 20 Inch Spraybar Assembly 1
014 175-6121 Brass plug 3
015 175-3534 Elbow fitting 1/8 x 1/4 inch 1
016 175-1684 Quick disconnect fitting 1
017 175-6040 20 inch spray bar manifold 1
018 175-6118 Spray tip assembly 5
019 175-3535 Brass spray tip
020 175-1652 1/8 inch female brass quick coupler 1
021 175-6170 Hose clamp 1
022 175-3536 Hose 1/4 x 1-1/4 inches 1
023 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 12
024 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
025 175-6145 20 inch brush base plate (black) 1
026 175-6235 20 inch base gasket 1
027 999-0617 Washer 3/8 x 1 flat stainless steel 2
028 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 1
029 999-0356 Nut 10-24 lock stainless steel 3
030 175-3537 18/3 cord 24 inch (black) 1
031 175-6124 Cord grip 1
032 175-6158 Nut 1/2 conduit 1
033 175-3538 20 inch base (black) 1
034 175-3539 Latch 1
035 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
036 175-1611 Spring 1
038 999-0553 Washer 5/16 medium split lock stainless steel 3
039 175-6154 Spacer 2
040 175-1762 Strain relief cable 1
040a 175-3540 Filter assembly 240V 1
041 175-1738 Brush filter 1
043 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1
044 999-0311 Washer #10 external star lock zinc plated 2
