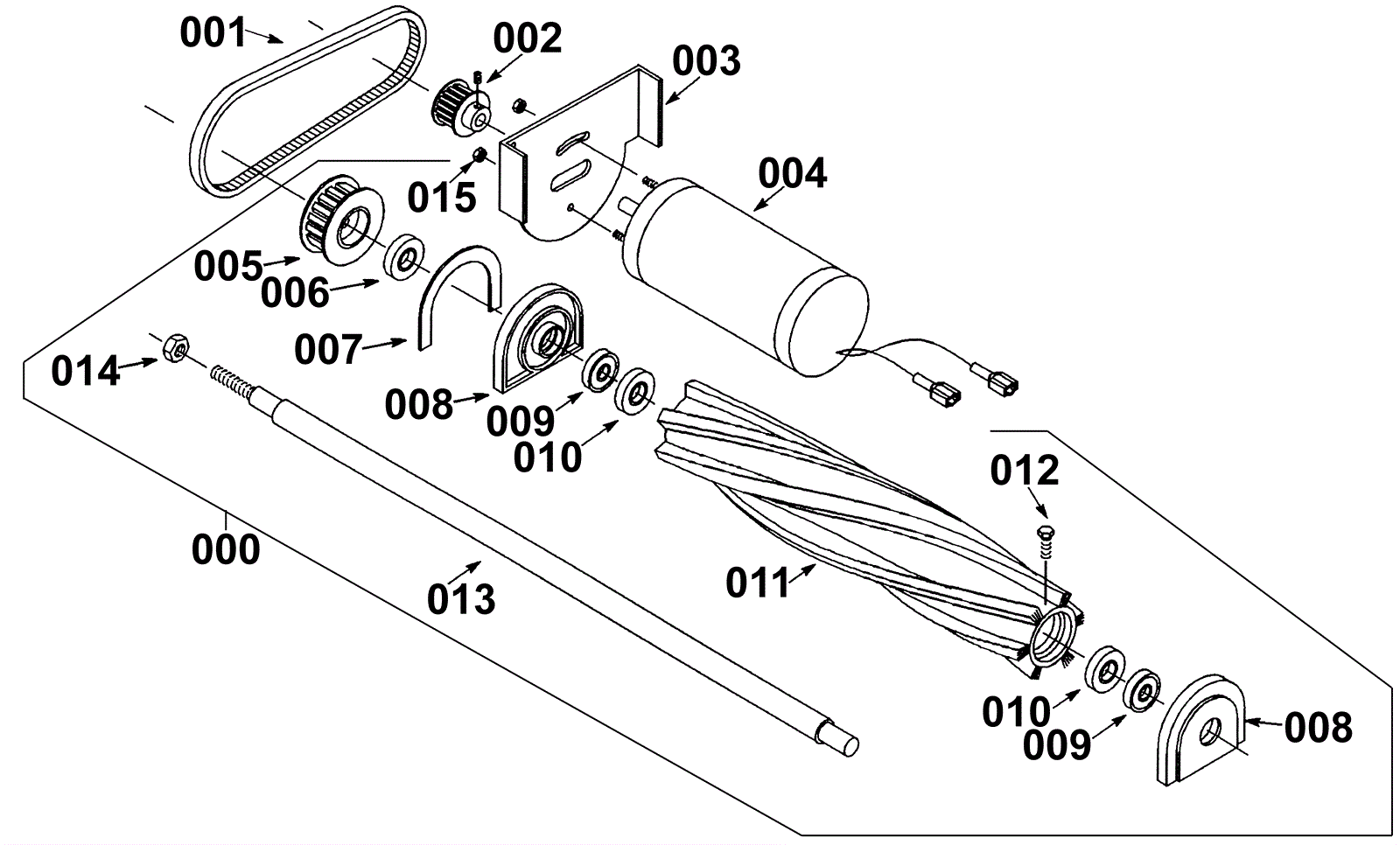

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-6141
|
Brush drive belt |
1 |
|
|
003 |
175-6130
|
Motor bracket |
1 |
|
|
005 |
175-6140
|
Brush pulley |
1 |
|
|
006 |
175-6139
|
Spacer |
1 |
|
|
007 |
175-6143
|
Bearing block gasket |
1 |
|
|
011 |
175-6136
|
Scrubbing brush - CYLINDRICAL |
1 |
|
|
012 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
013 |
175-6138
|
20 inch brush shaft |
1 |
|
|
014 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
1 |
|
|
