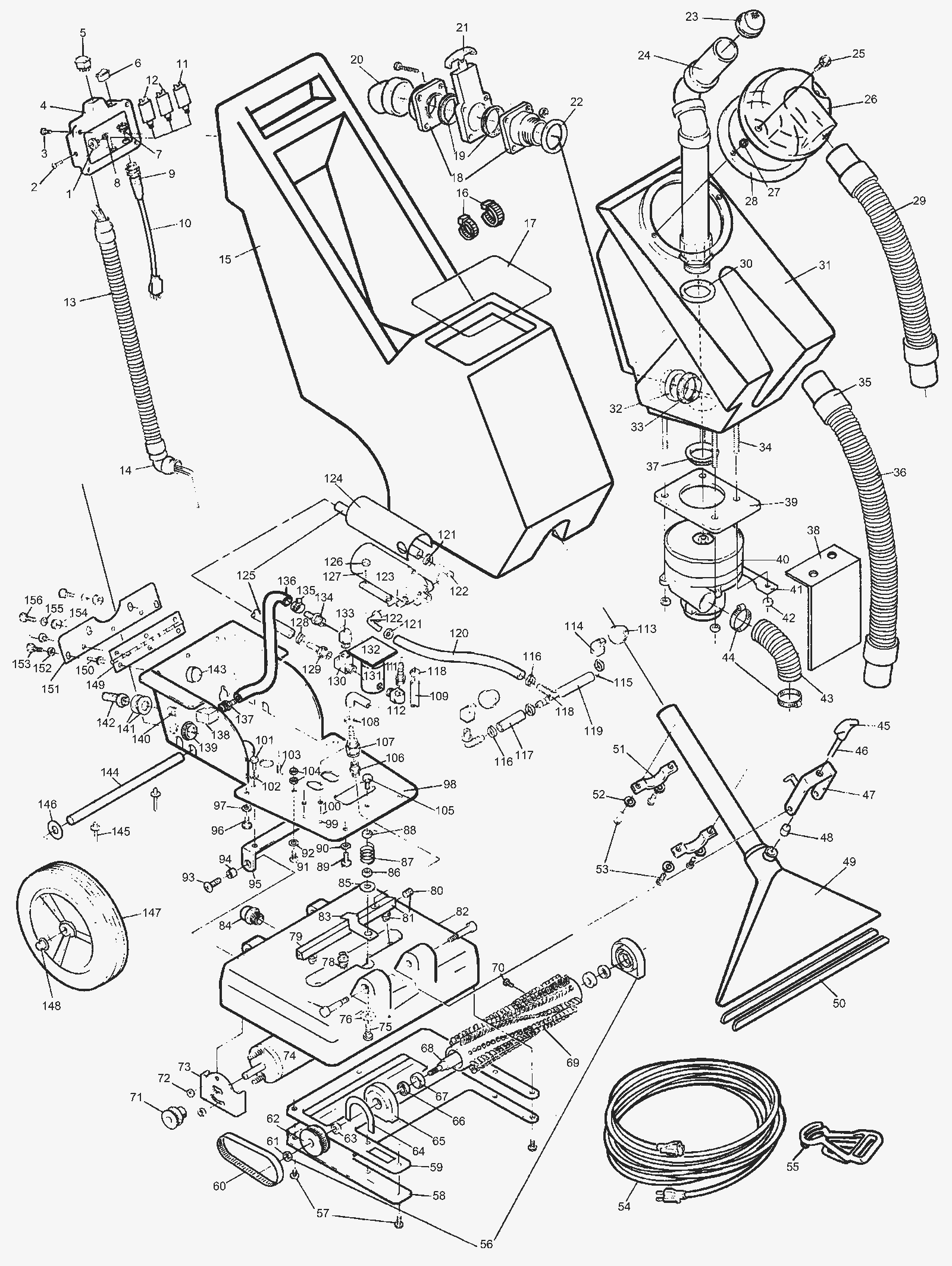

Main Assembly

#PartDescription ReqNotesAvailability
1 175-6052 15amp rectifier 1
2 999-0475 Screw 6-32 x 3/4 pan head slotted zinc plated 1
3 999-1027 Screw 10-24 x 1 1/4 round head phillips stainless steel 4
4 N/A Not available 1 Eagle Switchbox
5 175-6057 Brush pulse switch 1
6 175-0005 Rocker switch 1
7 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
8 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 1
9 175-0001 Strain relief 1
10 175-6064 14/3 pigtail cord 18 inch 1
11 175-6061 12amp circuit breaker 1
12 175-0030 1.5amp circuit breaker 2
13 175-3554 Wiring harness 1
14 175-1591 1/2 inch swivel elbow (OBSOLETE) 1
15 175-1592 Clean water tank housing (OBSOLETE) 1
16 175-0037 Wire tie 2
17 175-1593 Dust cover 1
18 175-1594 Drain valve 1
19 175-1306 Drain valve gate seal 2
20 175-1308 Drain valve downspout 1
21 175-1305 Drain valve handle 1
22 175-1304 Drain valve gasket 1
23 175-6261 Mesh filter screen 1
24 175-1595 Float standpipe assembly 1
25 175-6050 Knob 2
26 175-6265 Tank lid 1
27 175-6161 Nylon washer 2
28 175-6049 Tank lid gasket 1
29 175-1596 Vacuum hose with cuffs 1 1/2 x 19 1/8 1
30 175-6263 O-ring 1
31 175-1597 Eagle recovery tank (OBSOLETE) 1
32 175-2640 Gasket 1
33 175-2907 Nut 1 1/2 flanged hex 1
34 175-6078 Stud 1/4-20 x 5 inch full threaded 4
35 175-6269 1 1/2 inch hose cuff (OBSOLETE) 2
36 175-9503 Vacuum hose 1 1/2 x 36 inch (OBSOLETE) 1
37 175-2907 Nut 1 1/2 flanged hex 1
38 175-1599 Vacuum motor shield 1
39 175-1600 Vacuum motor gasket 1
40 175-0197 120V 3 stage vacuum motor 1
41 175-1601 Support bracket 1
42 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
43 175-6090 Exhaust hose 2 x 26 inch (black) 1
44 175-2057 Hose clamp 2
45 175-6113 Height adjustment knob 1
46 175-1603 Height adjustment stud stainless steel 1
47 175-1604 Height adjustment bracket (OBSOLETE) 1
48 175-6112 Spacer 1
49 175-1605 16 inch blue floor tool (OBSOLETE) 1
50 175-6146 16 inch pick-up shoe plate stainless steel 2
51 175-1606 Floor tool clamp 2
52 999-0632 Washer 1/4 split lock stainless steel 4
53 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
54a 175-6091 16/3 extension cord 50 foot (yellow) 1
54b 991-5002 16/3 extension cord 50 foot (orange) 1 (NON-OEM)
54c 991-5007 18/3 replacement power cord 50 foot (black) 1 (NON-OEM)
55 175-0236 Cord belt clip 1
56 175-1607 16 inch brush assembly 1 (includes items 123 - 132)
57 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 10
58 175-6144 16 inch brush base plate 1
59 175-6142 16 inch base gasket 1
60 175-6141 Brush drive belt 1
61 999-1019 Nut 5/16-18 hex jam stainless steel 1
62 175-6140 Brush pulley 1
63 175-6139 Spacer 1
64 175-6143 Bearing block gasket 1
65 175-6133 Bearing block 2
66a 175-0069 Brush bearing 2 (OEM)
67 775-0402 Brush bearing seal 2
68 175-6137 16 inch brush shaft 1
69 175-6135 Scrubbing brush - CYLINDRICAL 1
70 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
71 175-6129 Motor pulley (Tennant Industrial) 1
72 999-0239 Nut 10-32 k-lock zinc plated 2
73 175-6130 Motor bracket 1
74 175-6131 120V brush motor 1
75 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 1
76 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
77 175-6156 Screw 3/8 x 3/4 shoulder 2
78 175-1608 Brass nozzle without screen 4
79 175-6039 16 inch spray bar manifold 1
80 175-6121 Brass plug 3
81 175-1609 16 inch spraybar assembly 1 (includes 069, 107, 109, and 110)
82 175-6125 120v 16 in blue base brush 1
83 175-6115 Spray bar clamp 1
84a 175-6065 Interconnect cord 1
84b 175-6124 Cord grip 1
85 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
86 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
87 175-1611 Spring 1
88 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
89 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
90 999-1024 Washer 1/4 external tooth lock stainless steel 8
91 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 1
92 999-0311 Washer #10 external star lock zinc plated 1
94 175-6154 Spacer 2
95 275-4907 Chassis (black) 1
96 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
98 175-1613 Hinged chassis blue (OBSOLETE) 1
99 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 2
100 999-1083 Washer #8 internal star lock stainless steel 1
101 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
102 999-0632 Washer 1/4 split lock stainless steel 2
103 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 2
104 999-0356 Nut 10-24 lock stainless steel 2
105 999-0590 Screw 3/8-16 x 1/2 socket head shoulder 1
106 175-6042 Adapter 1
107 175-6043 Hosebarb 1
108 175-6170 Hose clamp 1
109a 175-6023 Hose 1/4 x 36 inch (gray) 11 in
109b 175-1614 Hose guard 1/4 x 10 inches (OBSOLETE) 10 in
110 175-6170 Hose clamp 1
111 175-6024 Hosebarb 1
112 175-2614 90 degree elbow fitting 1
113 175-6079 Mesh filter screen 2
114 175-6031 Straight jet fitting 2
115 175-2844 90 degree elbow fitting 2
116 175-6032 Hose clamp 5
117 175-6020 Braided hose 3/8 x 45 inch (gray) 35 in (35 inches is enough to replace all)
118 175-1615 Tee fitting 1
119 175-6020 Braided hose 3/8 x 45 inch (gray) 35 in (35 inches is enough to replace all)
120 175-6020 Braided hose 3/8 x 45 inch (gray) 35 in (35 inches is enough to replace all)
121 175-6081 Hose clamp 2
122 175-6019 90 degree barbed elbow 2
123a 175-6011 120V 100 PSI pump 1
123b 991-8225 Shurflo pump 1
124 175-1616 Pump shield 1
125a 175-6020 Braided hose 3/8 x 45 inch (gray) 35 in (35 inches is enough to replace all)
125b 175-1617 Hose guard 3/8 x 9 inches (OBSOLETE) 9 in
126 999-0356 Nut 10-24 lock stainless steel 2
127 999-0006 Washer 3/16 flat zinc plated 2
128 175-6032 Hose clamp 6
129 175-2613 Straight brass fitting 2
130 175-6029 Straight tee 1
131a 175-6025 Solution solenoid valve 1 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve)
131b 991-8598 Replacement plunger with spring for solenoid valve 1
132 175-1593 Dust cover 1
133 175-2614 90 degree elbow fitting 1
134 175-6030 Straight hosebarb 2
135 175-6081 Hose clamp 2
136a 175-6035 26 inch rubber hose (red) 26 in
136b 175-1618 Hose guard 1/2 x 26 inch 25 in
137 175-6030 Straight hosebarb 2
138 175-6248 90 degree elbow 1
139 175-3554 Wiring harness 1
140 175-6244 Nipple 1
141 999-0187 Washer 1/2 flat plain finish 2
142 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
143 175-2755 Snap bushing 1
144 275-4907 Chassis (black) 1
145 175-1620 Pop rivet (OBSOLETE) 2
146 999-0187 Washer 1/2 flat plain finish 2
147 175-1621 10 inch wheel (gray) 2
148 175-6097 Hub cap 2
149 175-1622 Hinge (OBSOLETE) 1
150 175-1623 Pop rivet 6
151 175-1624 Hinged chassis plate 1
152 999-0632 Washer 1/4 split lock stainless steel 2
153 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
154 175-1625 Rubber grommet 2
155 999-0016 Washer 1/4 flat plain finish 2
156 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
