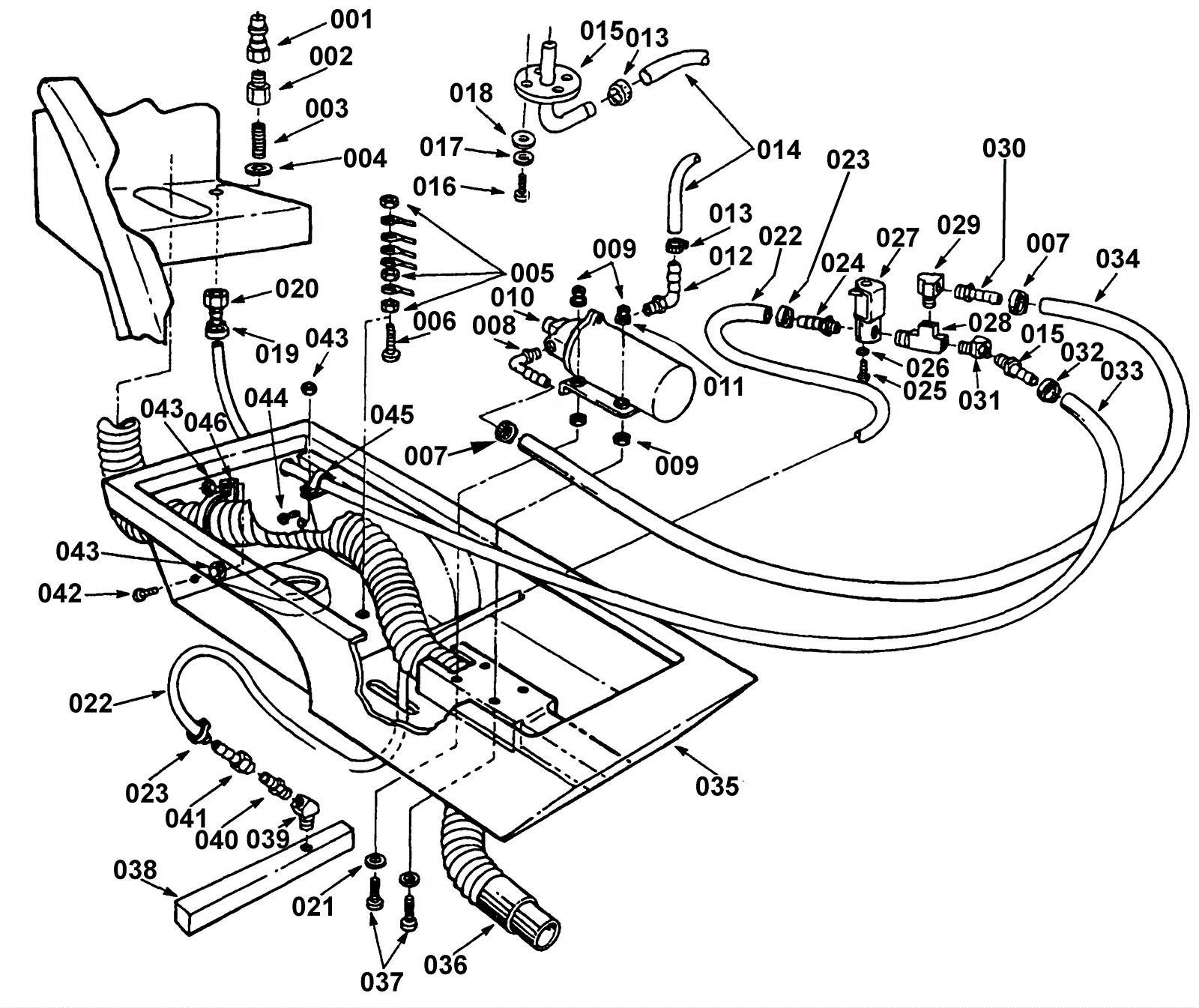

Plumbing

#PartDescription ReqNotesAvailability
001 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
002 175-6014 Adapter 1
003 175-6015 Nipple 1
004 999-0187 Washer 1/2 flat plain finish 1
005 999-0356 Nut 10-24 lock stainless steel 3
006 999-1195 Screw 10-24 x 1 1/4 round head phillips zinc plated 1
007 175-0199 Hose clamp 2
008 175-6016 Elbow 1
009 999-0356 Nut 10-24 lock stainless steel 8
010a 175-6011 120V 100 PSI pump 1
010b 175-6012 100 psi 240 v pump 1
010c 991-8225 Shurflo pump 1
011 999-0006 Washer 3/16 flat zinc plated 4
012 175-6019 90 degree barbed elbow 1
013 175-6081 Hose clamp 2
014 175-6020 Braided hose 3/8 x 45 inch (gray) 3 ft
015 175-6021 Bladder plate fitting 1
016 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
017 999-0632 Washer 1/4 split lock stainless steel 4
018 999-0016 Washer 1/4 flat plain finish 4
019 175-6081 Hose clamp 1
020 175-6022 Brass fitting 1
021 999-0393 Washer 3/16 flat aluminum 4
022 175-6023 Hose 1/4 x 36 inch (gray) 2 ft
023 175-6170 Hose clamp 2
024 175-6024 Hosebarb 1
025 999-0411 Screw 8-32 x 3/8 pan head slotted zinc plated 2
026 999-1083 Washer #8 internal star lock stainless steel 2
027a 175-6025 Solution solenoid valve 1 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve)
027b 991-8598 Replacement plunger with spring for solenoid valve 1
027c 175-6026 Solenoid valve 220 v 50 hz 1
027d 175-6027 Solenoid valve 100 v 50 hz (OBSOLETE) 1
027e 175-6028 Solenoid valve 240 v 50 hz 1
028 175-6029 Straight tee 1
029 175-2614 90 degree elbow fitting 1
030 175-6030 Straight hosebarb 1
031 175-6031 Straight jet fitting 1
032 175-6032 Hose clamp 1
033a 175-6020 Braided hose 3/8 x 45 inch (gray) 5 ft
033b 175-6020 Braided hose 3/8 x 45 inch (gray) 5 ft
034 175-6035 26 inch rubber hose (red) 2 ft
035a 175-6036 Blue chassis 1
035b 175-6037 Chassis (gray) (OBSOLETE) 1
036a 175-6038 Vacuum hose with cuffs 1 1/2 x 53 inch 1 (OEM)
036b 991-5154 Vacuum hose with cuffs 1 1/2 x 53 inch 1 (NON-OEM)
037 999-1195 Screw 10-24 x 1 1/4 round head phillips zinc plated 4
038a 175-6039 16 inch spray bar manifold 1
038b 175-6040 20 inch spray bar manifold 1
039 175-6041 Elbow 1/8 x 1/8 inch 1
040 175-6042 Adapter 1
041 175-6043 Hosebarb 1
042 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 1
043 999-0442 Nut 10-24 nylon insert lock stainless steel 3
044 999-0034 Washer 3/8 split lock plain finish 1
045 999-1654 P clamp 1
046 175-3123 Cable tie 1
