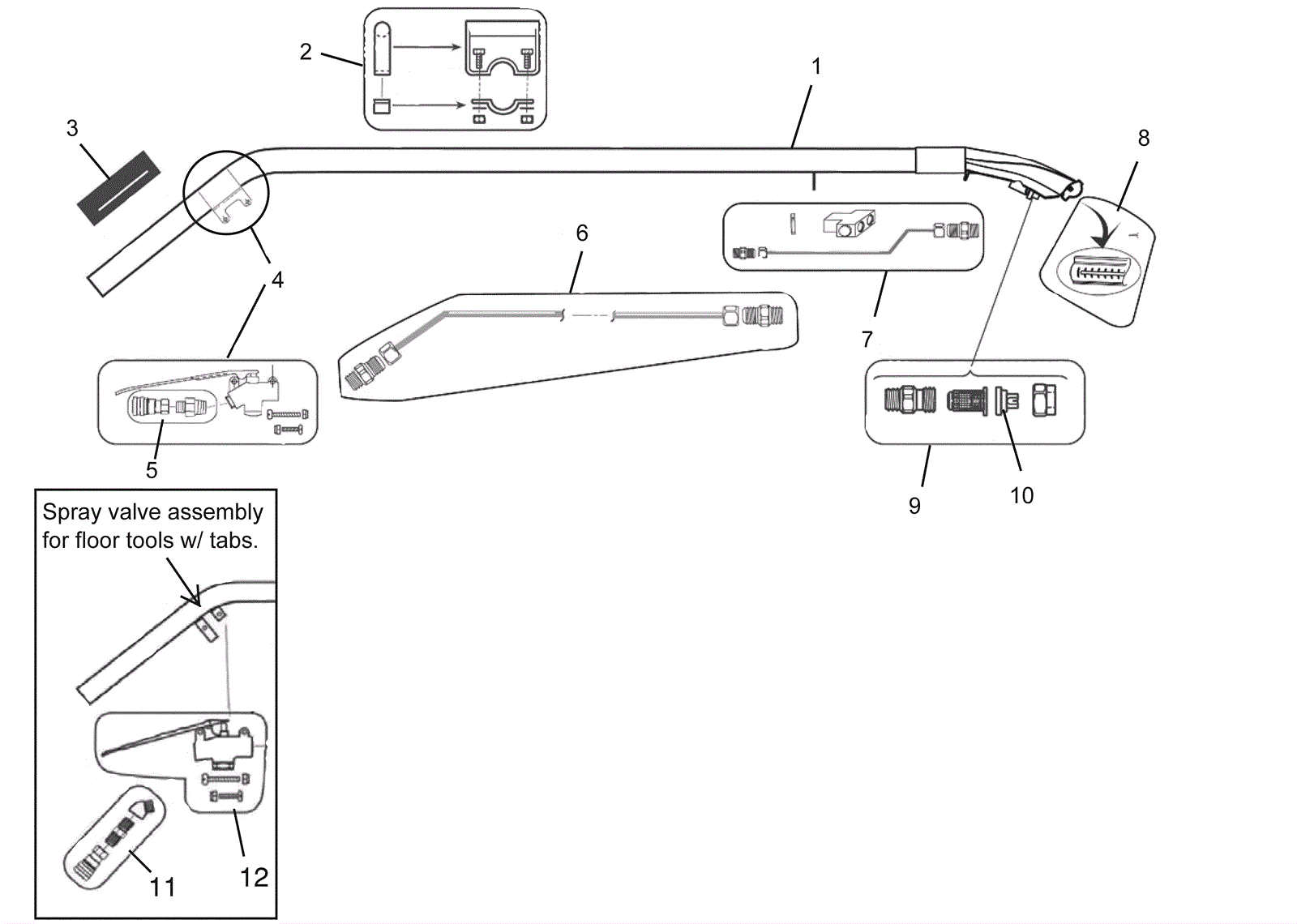

EXPLORER H5 Floor Tool Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-5486 13 inch floor tool $1,666.50 1 usually ships 5-16 days
2 175-5546 Handle assembly $157.30 1 usually ships 1-5 days
3 175-5911 Handle grip sleeve $22.66 1 usually ships 1-5 days
4 175-5122 Water valve $179.08 1 usually ships 5-16 days
5 175-5369 Female coupling with adapter $159.17 1 usually ships 5-16 days
6 175-6094 Upper tube $166.65 1 usually ships 1-5 days
7 175-6119 Lower tube $466.29 1 usually ships 1-5 days
8 175-6120 Glide plate $180.73 1 usually ships 1-5 days
9 275-6884 Spray tip fitting $232.54 1 usually ships 1-5 days
10 275-6885 Spray tip fitting $72.27 1 usually ships 1-5 days
11 275-5353 Quick disconnect/brass fitting assembly $200.97 1 usually ships 5-16 days
12 175-5122 Water valve $179.08 1 (hardware included) usually ships 5-16 days
